ZSL-A S-Type Load Cell

ZSL-A

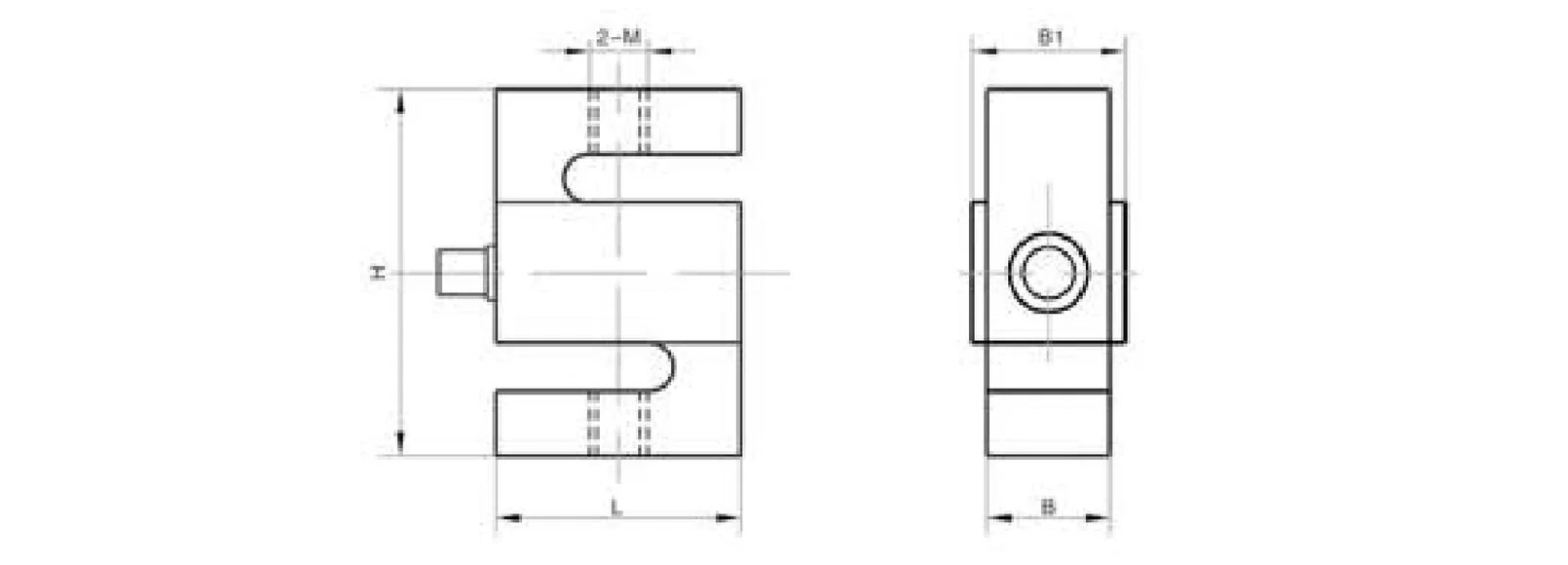

S-type tension and compression load cell from China with 2 mV/V sensitivity, 0.03% F.S. class accuracy, 120% F.S. safe load limit and a dimensional drawing.

Request a quotationLINE: bps instrument
LOAD CELL ZSL A

Specifications

Accuracy0.03% F.S. (listed as 0.0.3% F.S.; confirm with BPS)
Sensitivity2 mV/V
Non-linearity≤0.03% F.S. (listed as 0.0.3%)
Repeatability≤0.01% F.S.
Hysteresis≤0.03% F.S. (listed as 0.0.3%)
Input resistance380 Ω
Output resistance350 Ω
Insulation resistance≥5000 MΩ
Temperature effect on sensitivity<0.03% F.S. / 10 C
Temperature effect on zero balance<0.03% F.S. / 10 C
Reference excitation voltage10 V (DC)
Excitation voltage range6~12 V (DC)
Service temperature range-30~70 C
Safe load limit120% F.S.

Supplied with

  • ZSL-A load cell

Options and accessories

  • Contact BPS for capacity, indicators and calibration
