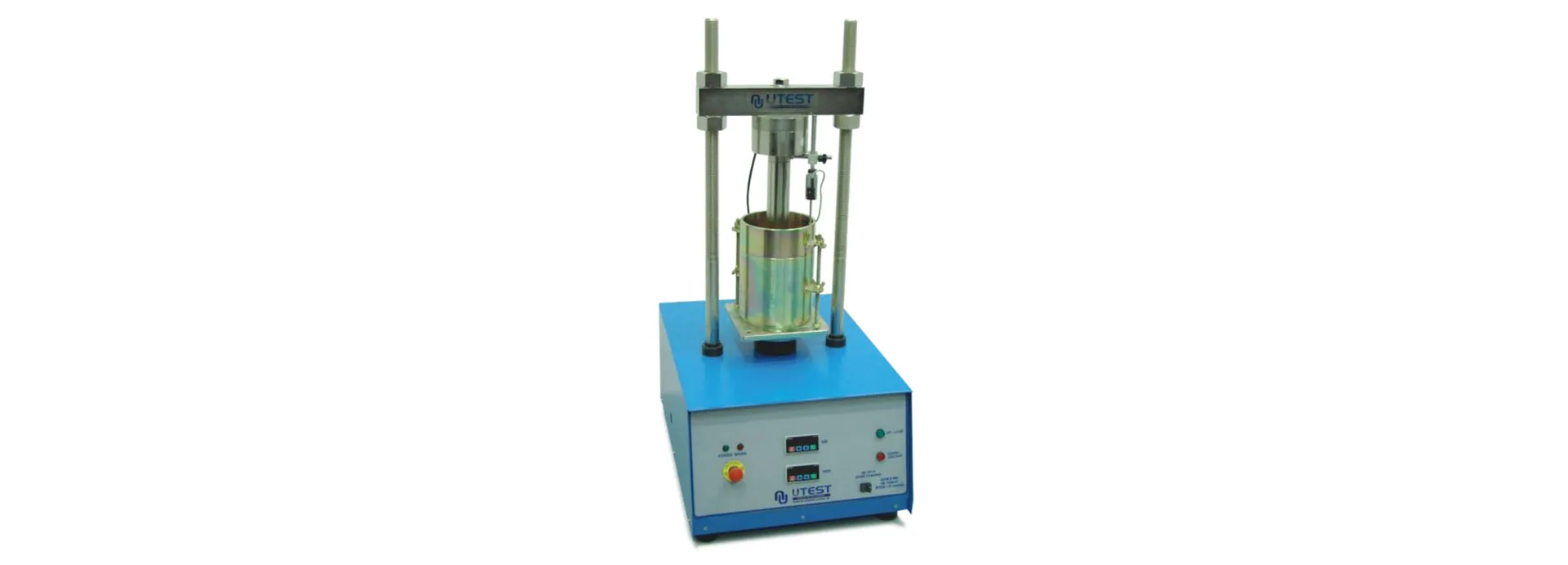

CBR Test Machine

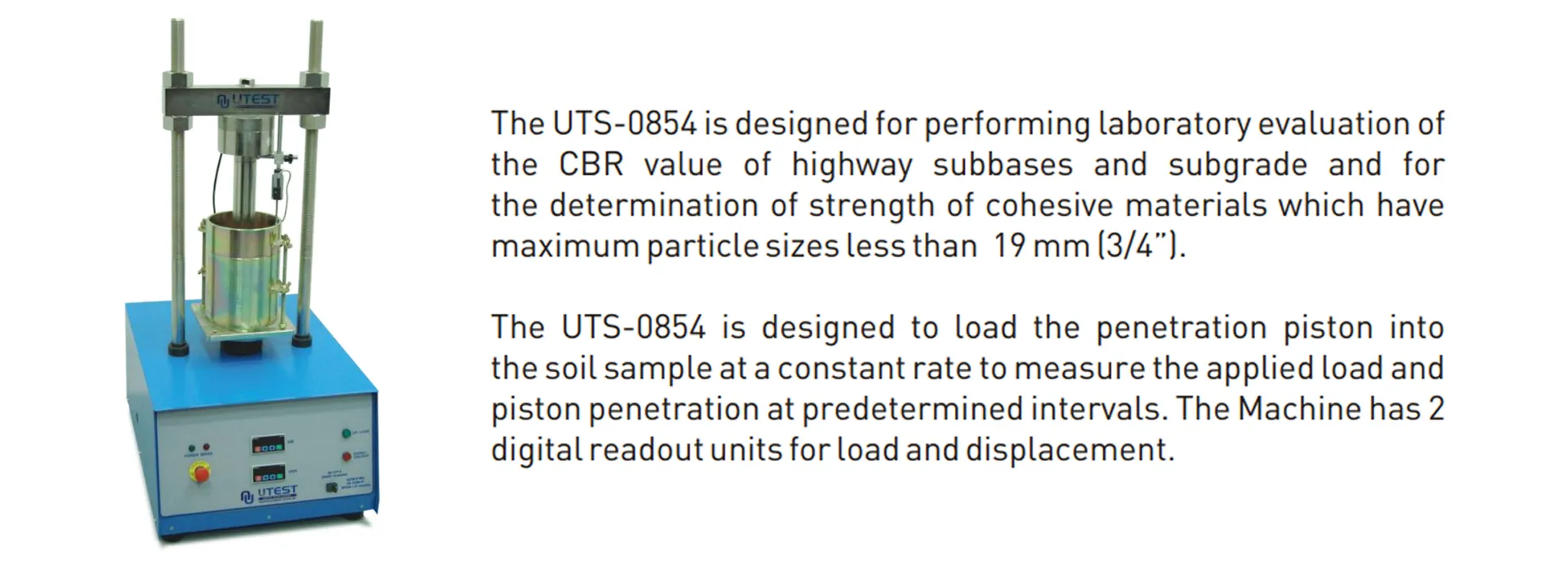

UTS-0854The UTS-0854 is designed for laboratory evaluation of the CBR value of highway sub bases and subgrade, and for determining the strength of cohesive materials with maximum particle sizes less than 19 mm (3/4"). It loads the penetration piston into the soil sample at a constant rate to measure the applied load and piston penetration at predetermined intervals, with 2 digital readout units for load and displacement.

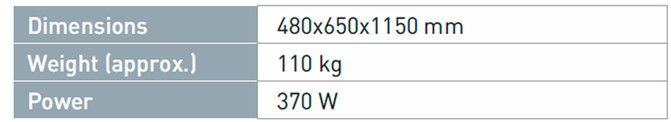

Specifications
| Readout | 2 digital units (load and displacement) |
|---|---|
| Dimensions | 480 x 650 x 1150 mm |
| Weight (approx.) | 110 kg |
| Power | 370 W |
Supplied with
- CBR test machine with penetration piston
- Digital readout units for load and displacement
Options and accessories
- CBR moulds and accessories
- Load and deformation measuring devices
