Electric Loadcell Force Tester

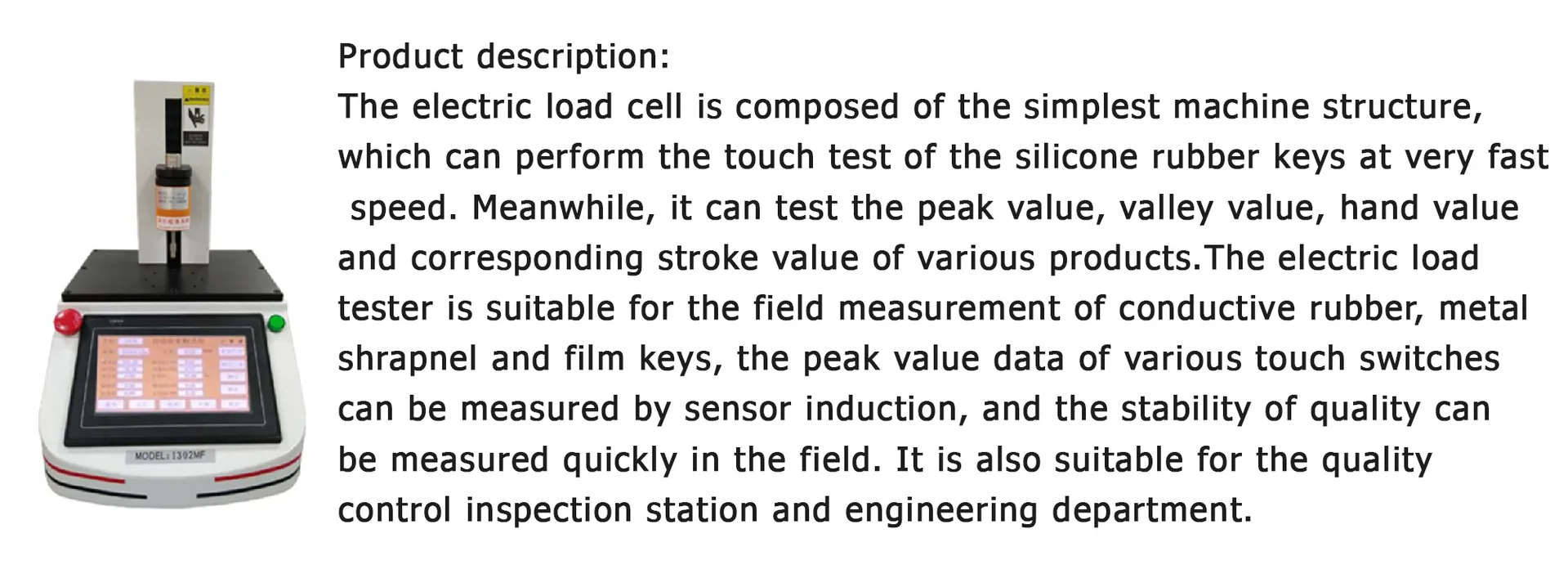

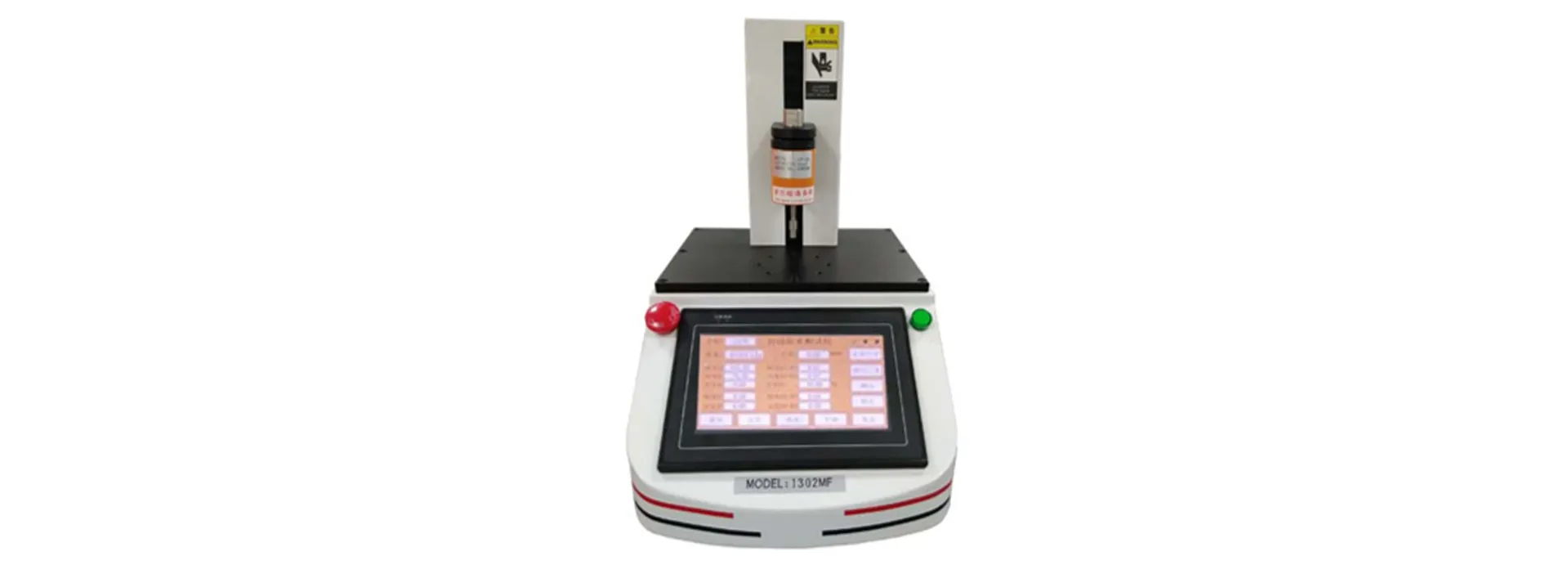

1302MF1302MF is a compact table-type electric load cell force tester with the simplest machine structure. It performs fast touch tests on silicone rubber keys and measures peak, valley and hand values with the corresponding stroke. It suits field measurement of conductive rubber, metal domes and film keys and quality control inspection stations.

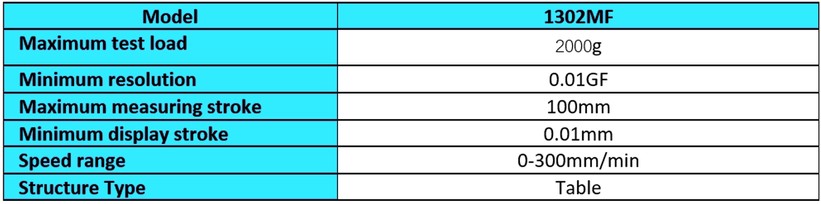

Specifications
| Model | 1302MF |
|---|---|
| Maximum test load | 2000 g |
| Minimum resolution | 0.01 gf |
| Maximum measuring stroke | 100 mm |
| Minimum display stroke | 0.01 mm |
| Speed range | 0-300 mm/min |
| Structure type | Table |
Supplied with
- 1302MF force tester with touch-screen display
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Fixtures for keys and switches
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
