Automatic CBR Test Machine

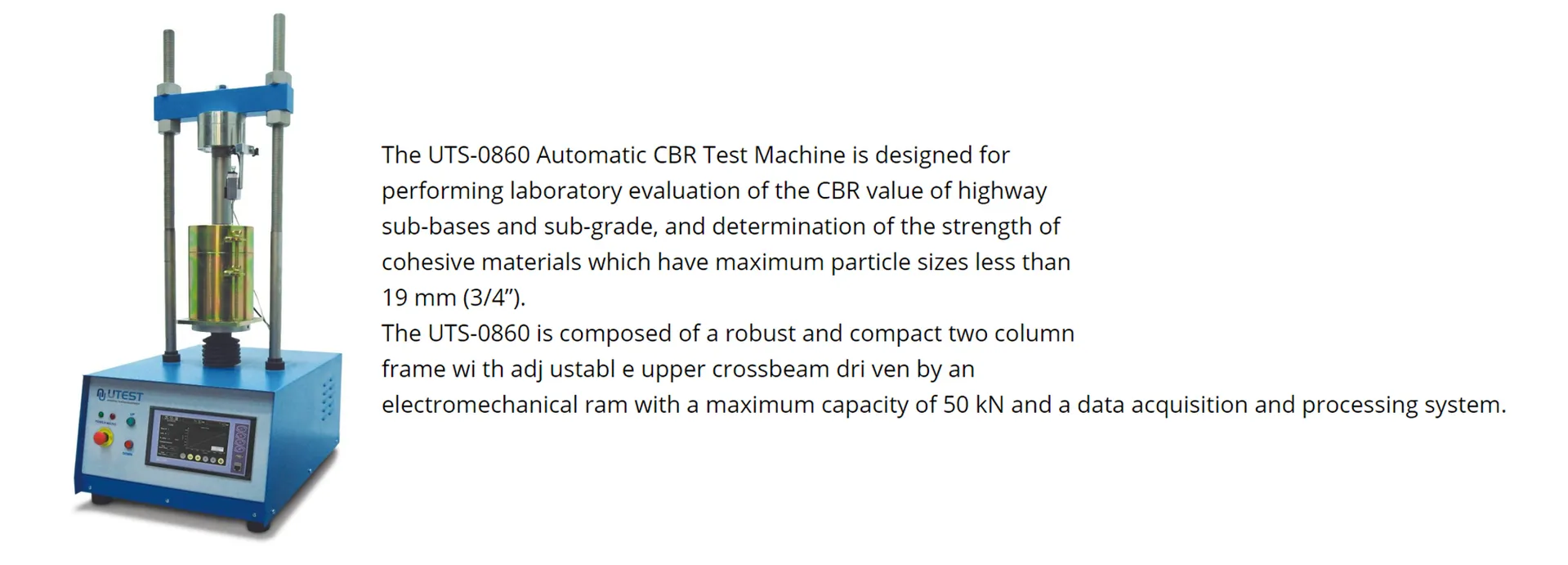

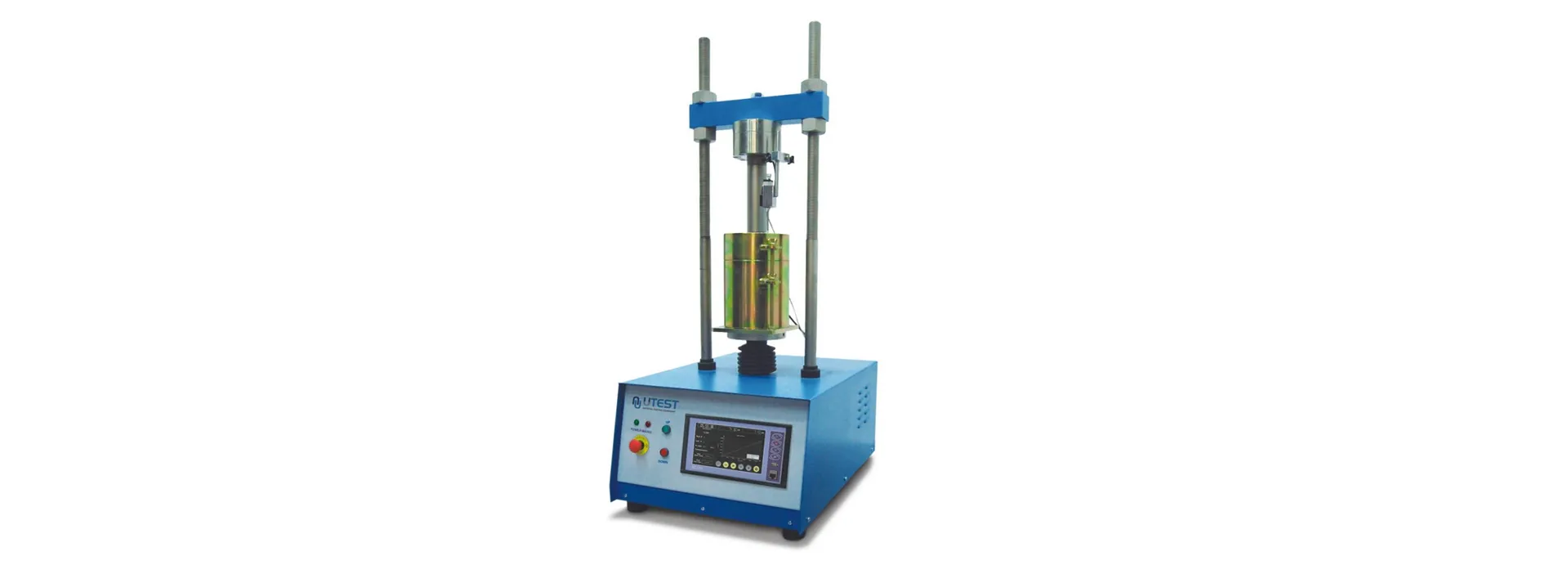

UTS-0860The UTS-0860 Automatic CBR Test Machine is designed for laboratory evaluation of the CBR value of highway sub-bases and sub-grade, and for determining the strength of cohesive materials with maximum particle sizes less than 19 mm (3/4"). It consists of a robust, compact two-column frame with an adjustable upper crossbeam driven by an electromechanical ram, and a data acquisition and processing system.
Specifications
| Capacity | 50 kN |
|---|---|
| Drive | Electromechanical ram |
| Frame | Two-column, adjustable upper crossbeam |

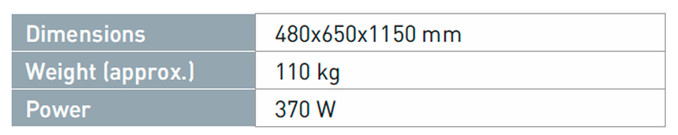

| Dimensions | 480 x 650 x 1150 mm |
| Weight (approx.) | 110 kg |
| Power | 370 W |
Supplied with
- Automatic CBR test machine with two-column frame
- Data acquisition and processing system
Options and accessories
- CBR moulds and accessories
- Load and deformation measuring devices
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
