Universal Hardness Tester (Brinell, Rockwell, Vickers)

HBRVS-187.5 and computer-display model

Universal hardness testers that measure Brinell, Rockwell and Vickers hardness on one machine, with automatic loading, holding and unloading of the test force; the HBRVS-187.5 offers 7 test-force steps.

Request a quotationLINE: bps instrument
Universal Hardness Tester

Specifications

Test methodsBrinell, Rockwell, Vickers

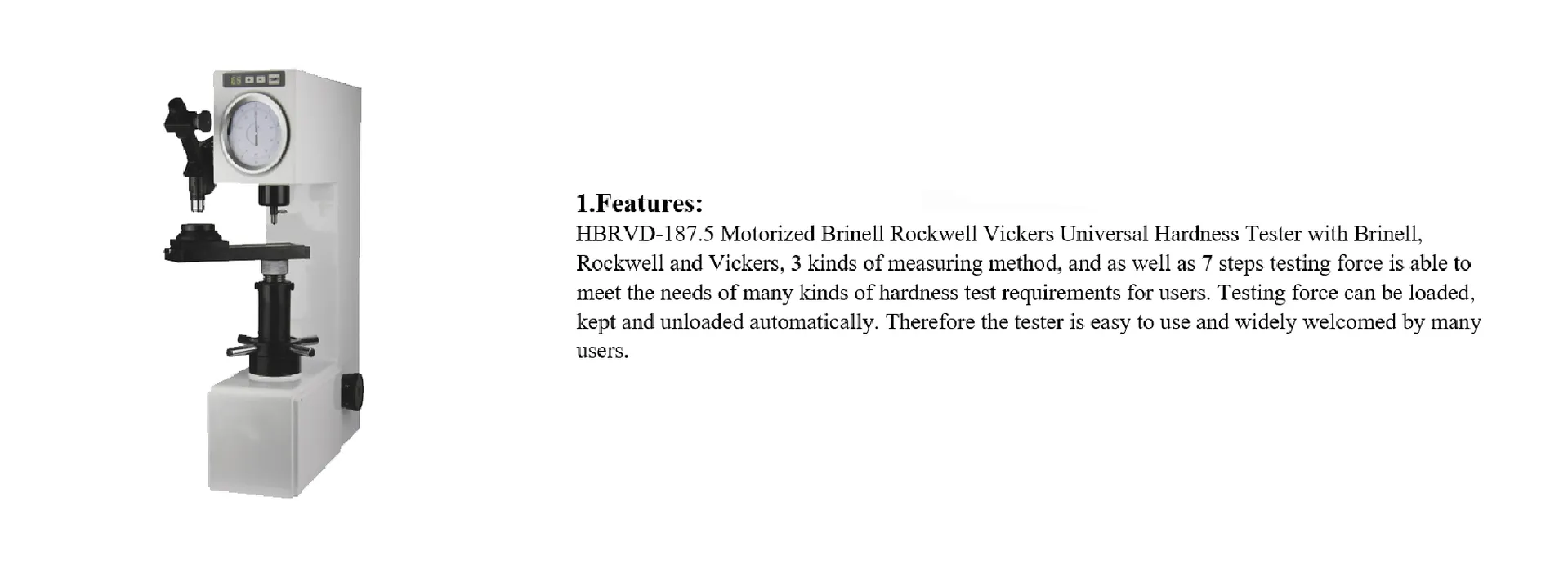

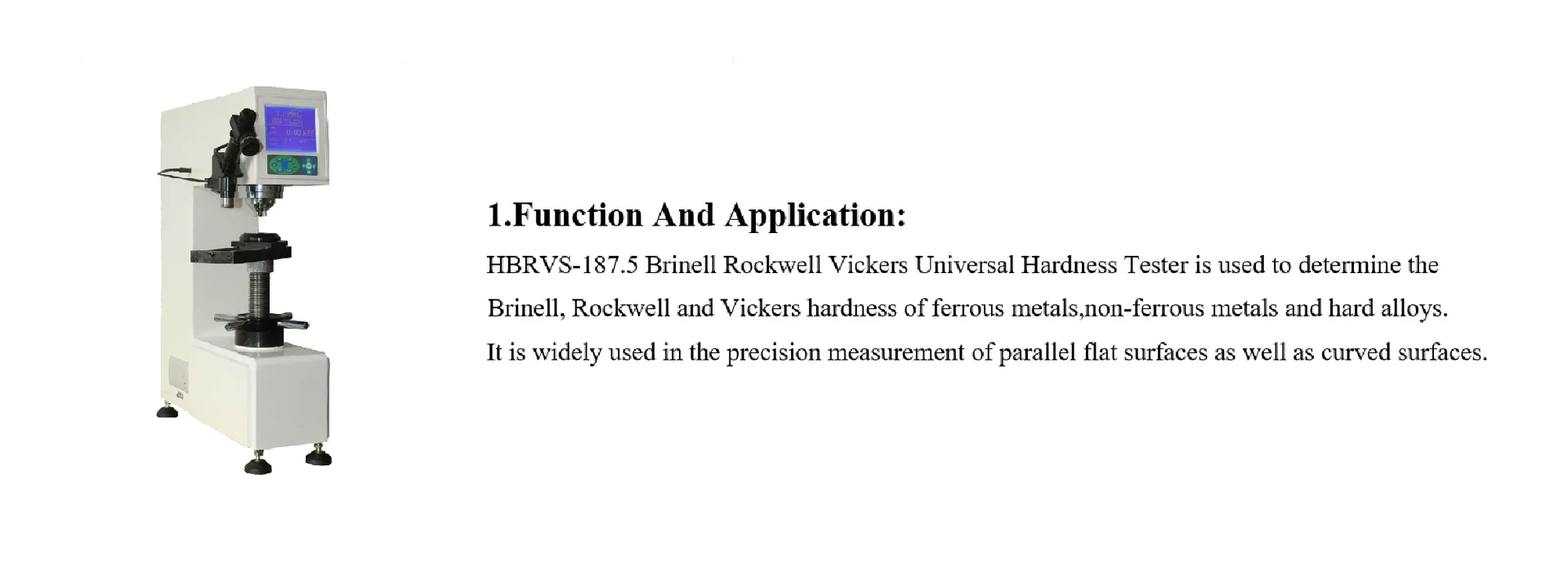

HBRVS-187.5Motorized Brinell / Rockwell / Vickers tester; 7 steps of test force; test force loaded, held and unloaded automatically
MaterialsFerrous metals (cast iron, mild steel, quenched steel), non-ferrous metals (aluminum alloy, copper alloy), hard alloys, carburized and chemically treated layers
SurfacesParallel flat surfaces and curved surfaces

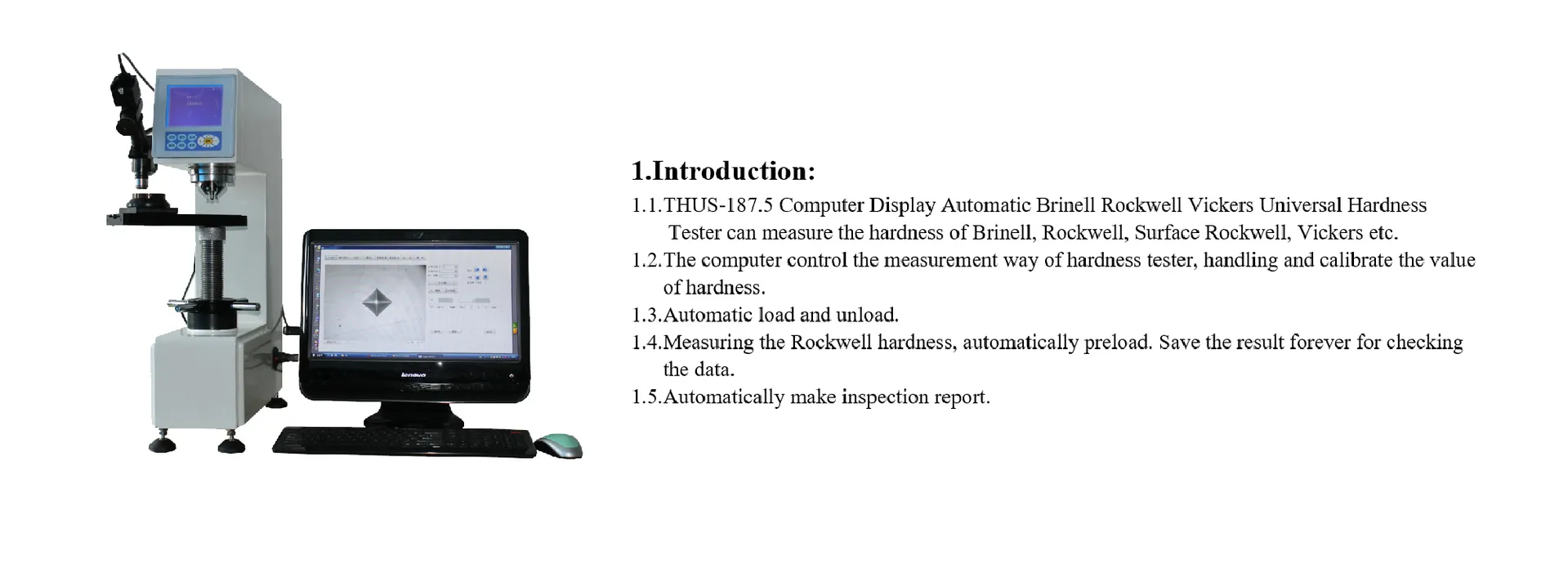

Computer-display modelPC controls measurement, handling and calibration of hardness values; automatic load and unload; Rockwell hardness measured automatically; results saved for checking; inspection report generated automatically

Supplied with

  • Universal hardness tester of the model ordered

Options and accessories

  • Contact BPS for indenters, test blocks, PC software and calibration

More views

Universal Hardness Tester Universal Hardness Tester Universal Hardness Tester

Need help choosing?

Tell us your sample, standard and budget. BPS will recommend the right model and quote it.

Contact sales

Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
