Semi-Automatic Impact Testing Machine

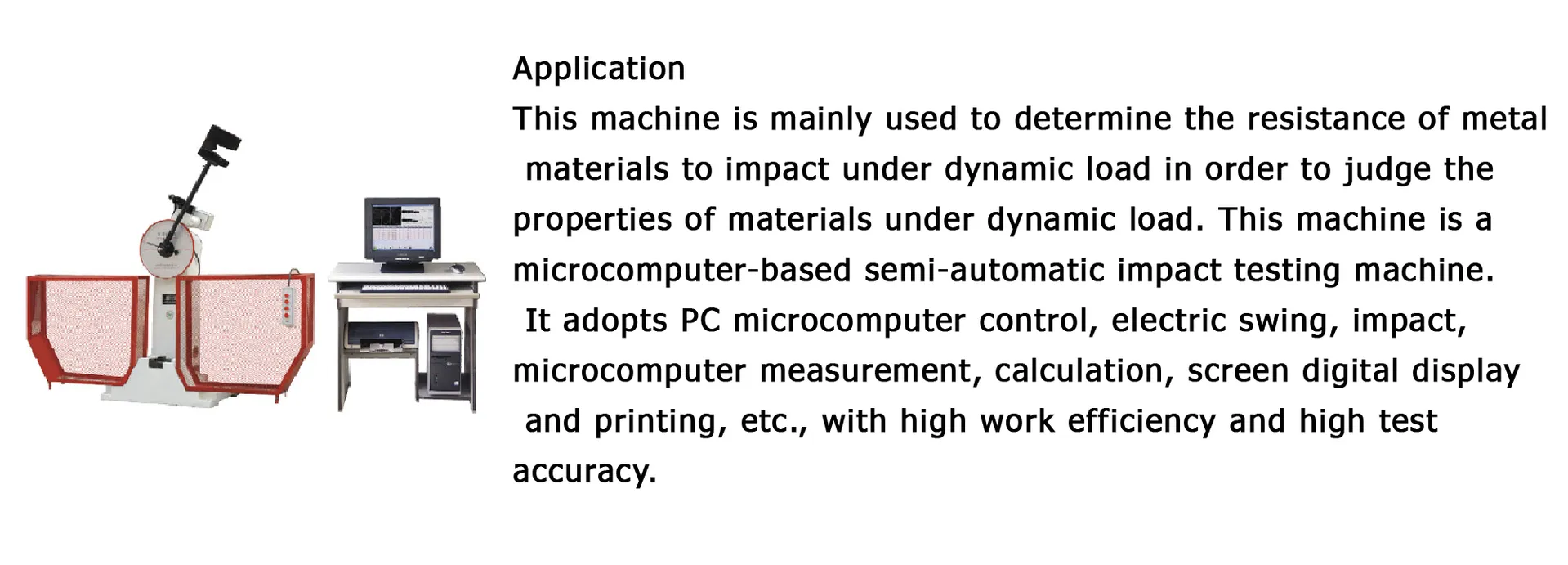

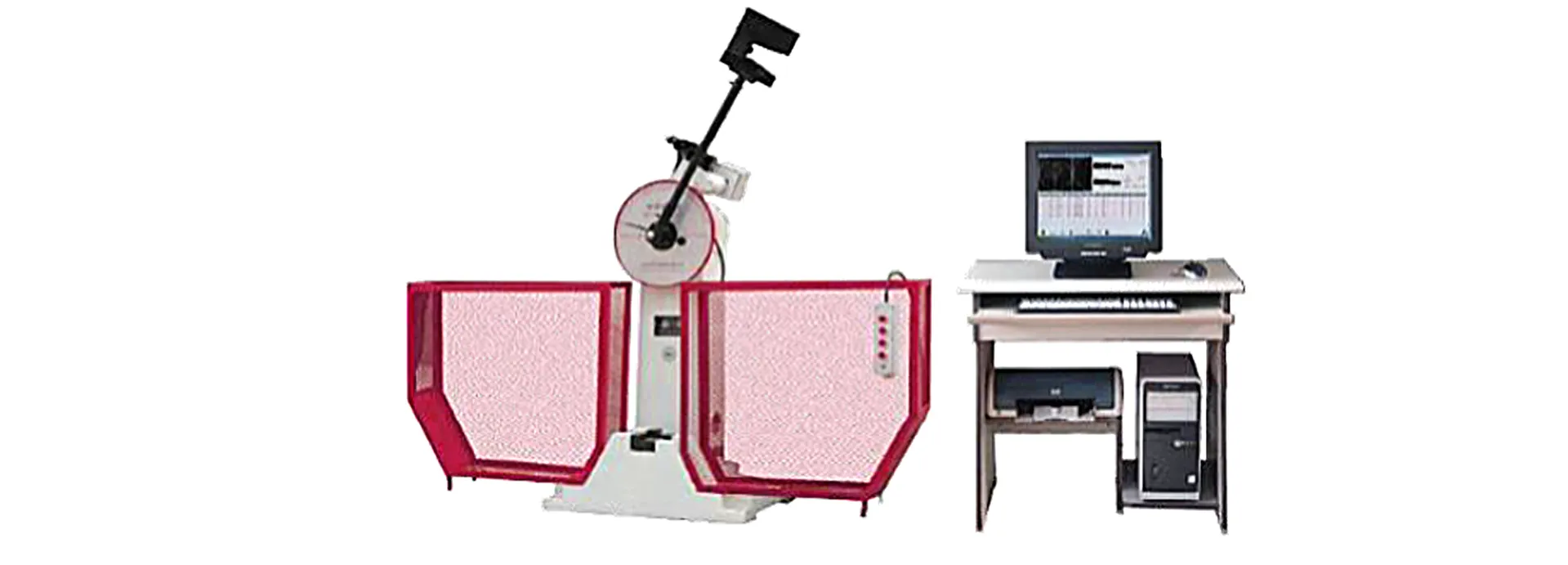

JB-W300BJB-W300B is a microcomputer-based semi-automatic Charpy impact testing machine for determining the resistance of metallic materials to impact under dynamic load. It uses PC microcomputer control, electric swing, impact, measurement, calculation, digital display and printing for high work efficiency and test accuracy.

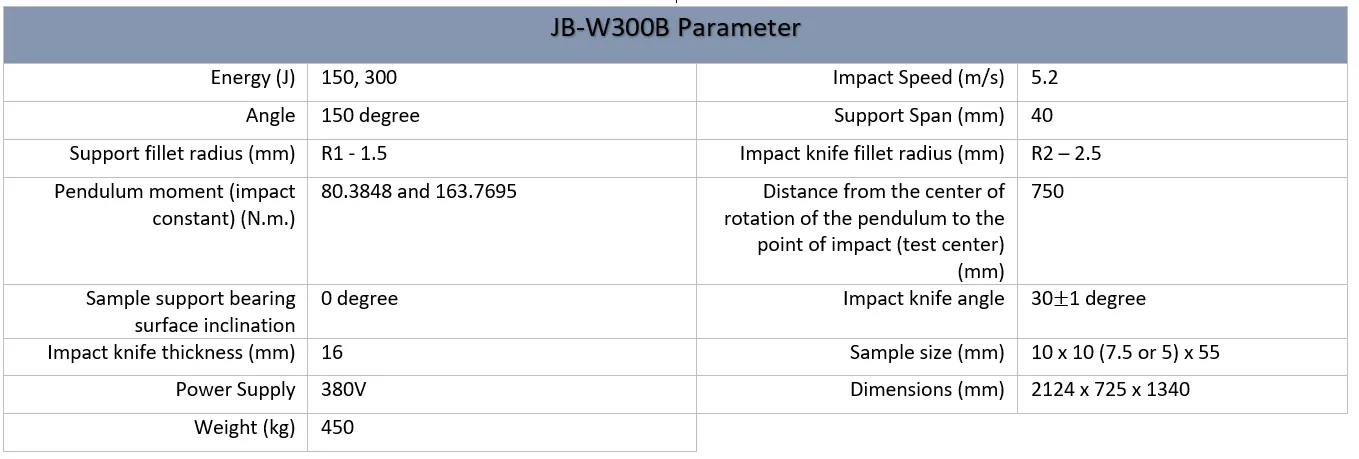

Specifications
| Model class | 300 J pendulum impact tester (per model designation) |
|---|---|
| Operation | Semi-automatic: electric swing, PC microcomputer control and measurement |
| Reference values (JB-300B / JB-W300A series) | Raising angle 150°; standard span 40 mm; specimen 10 × 10 × 55 mm |
| Other details | Confirm exact ratings, power and dimensions with BPS |

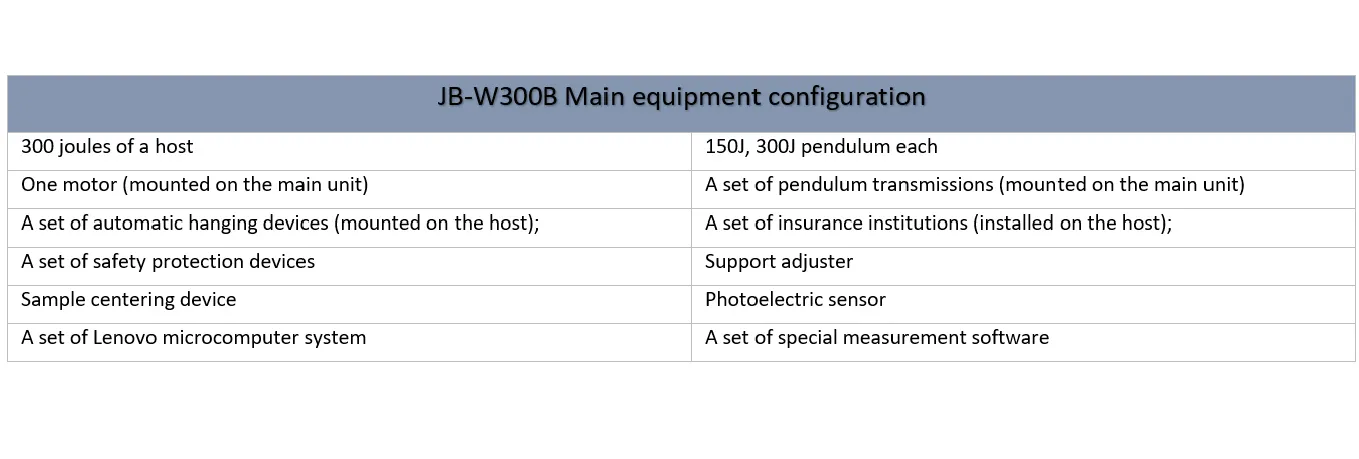

Supplied with
- JB-W300B impact tester with PC and software
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Specimen centering tongs
- Low-temperature specimen conditioning bath
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
