Laboratory Oven

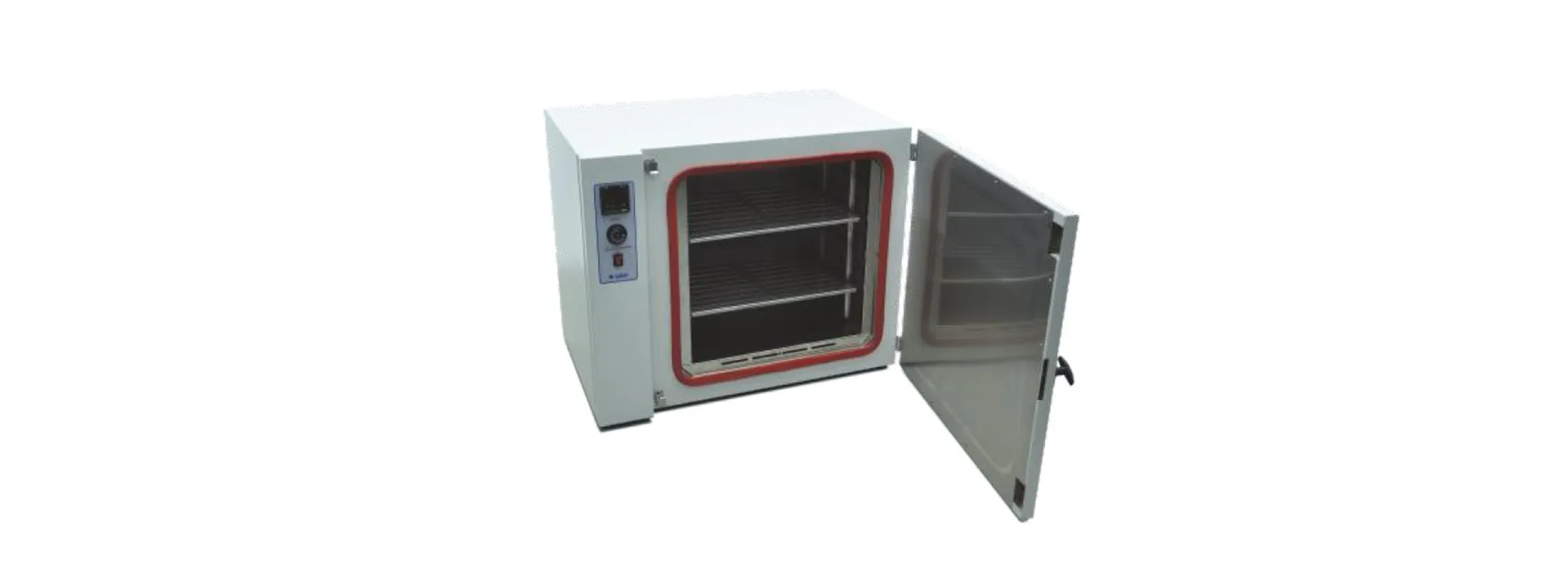

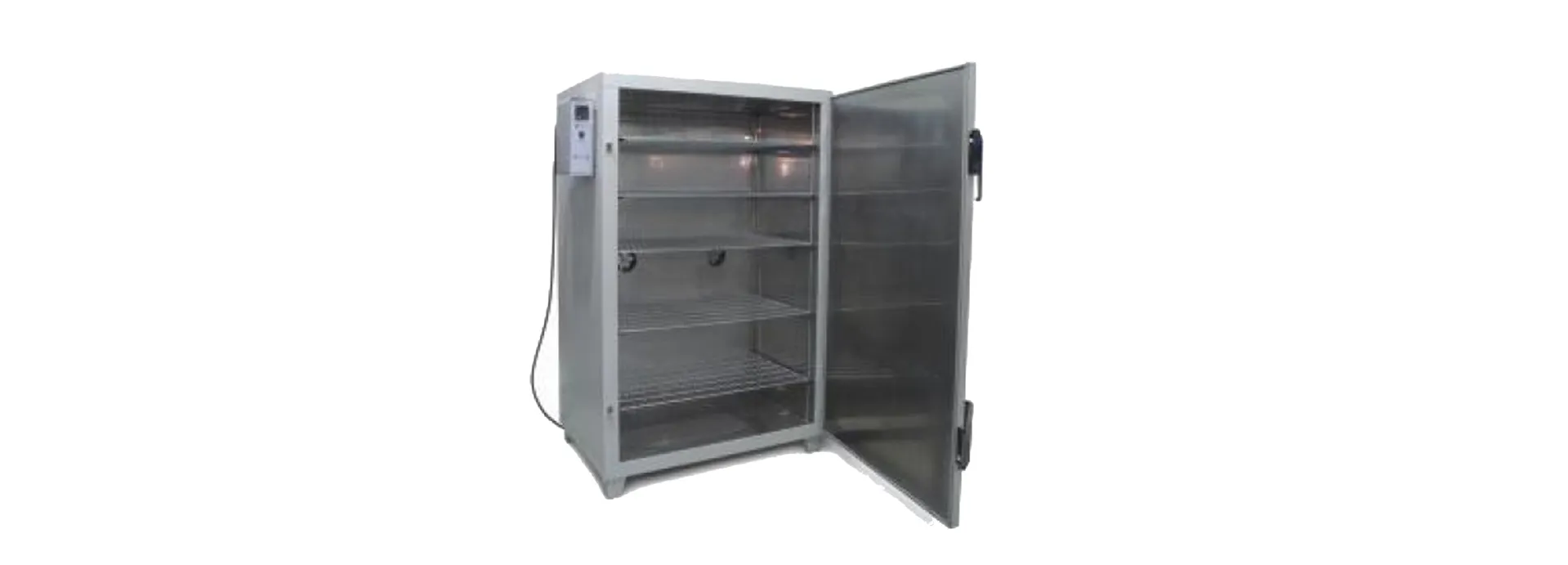

UTD-1295 to UTD-1315UTEST UTD Series Laboratory Ovens are designed for drying asphalt, soil, rock, concrete, aggregate or similar materials. Models of 50, 120, 250, 500 and 750 litre capacity are available, operating from ambient up to 200°C. The interior is manufactured from stainless steel and the exterior is robustly constructed from sheet steel finished in powder-coated paint. All models are fan circulated (forced convection), fitted with a direct-reading digital control unit and equipped with an analogue over-temperature protection thermostat. Supplied complete with 2, 3, 4 or 5 shelves according to the capacity.
Specifications
| Capacities | 50, 120, 250, 500 and 750 L |
|---|---|
| Temperature range | Ambient to 200°C (precision ±2°C as listed) |
| Air circulation | Fan circulated (forced convection) |
| Interior / exterior | Stainless steel / powder-coated sheet steel |
| Protection | Analogue over-temperature protection thermostat |

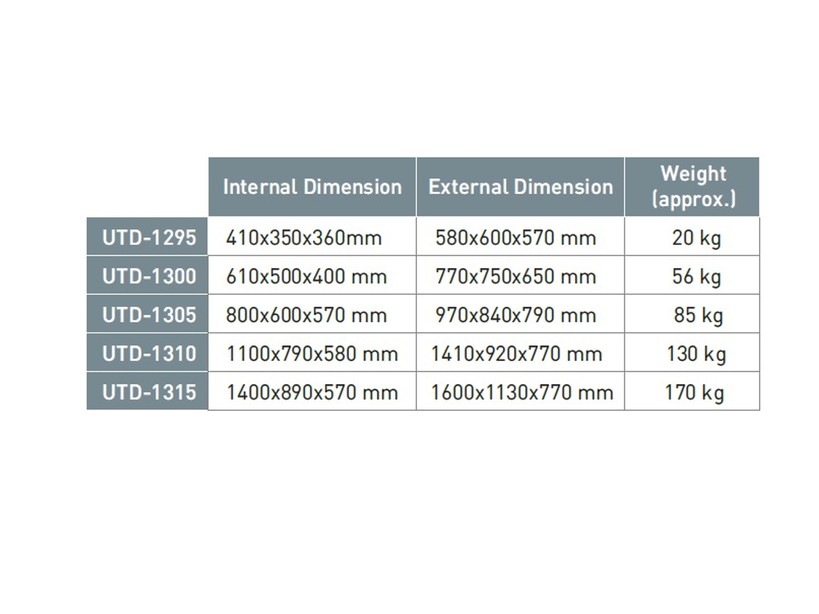

| UTD-1295 | Internal 410 x 350 x 360 mm; external 580 x 600 x 570 mm; 20 kg (approx.) |
| UTD-1300 | Internal 610 x 500 x 400 mm; external 770 x 750 x 650 mm; 56 kg (approx.) |
| UTD-1305 | Internal 800 x 600 x 570 mm; external 970 x 840 x 790 mm; 85 kg (approx.) |
| UTD-1310 | Internal 1100 x 790 x 580 mm; external 1410 x 920 x 770 mm; 130 kg (approx.) |
| UTD-1315 | Internal 1400 x 890 x 570 mm; external 1600 x 1130 x 770 mm; 170 kg (approx.) |
Supplied with
- Laboratory oven with digital control unit
- 2, 3, 4 or 5 shelves according to capacity
Options and accessories
- Additional shelves
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
