Thermal Shock Test Chamber

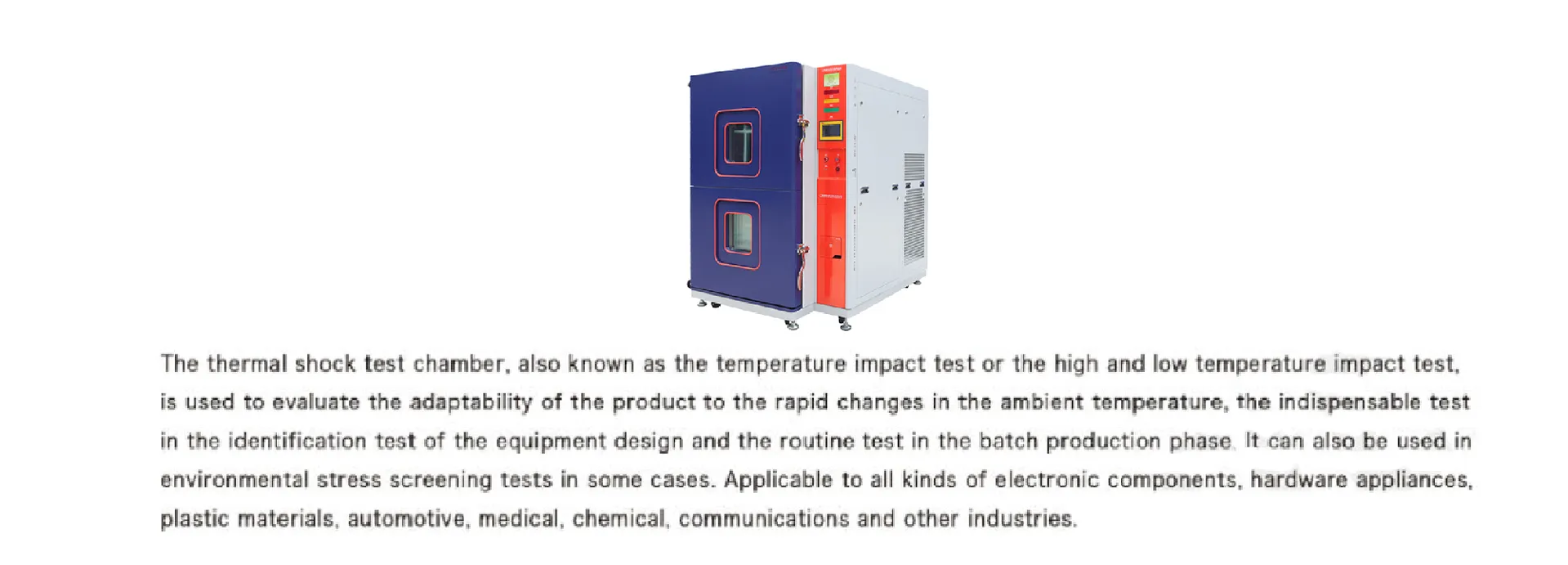

JQTS3 / JQTS2 seriesThe thermal shock test chamber, also known as the temperature impact test or high and low temperature impact test chamber, is used to evaluate the adaptability of a product to rapid changes in ambient temperature. It is an indispensable test in the identification of equipment design and a routine test in the batch production phase, and can also be used for environmental stress screening. Applicable to electronic components, hardware appliances, plastic materials, automotive, medical, chemical, communications and other industries.

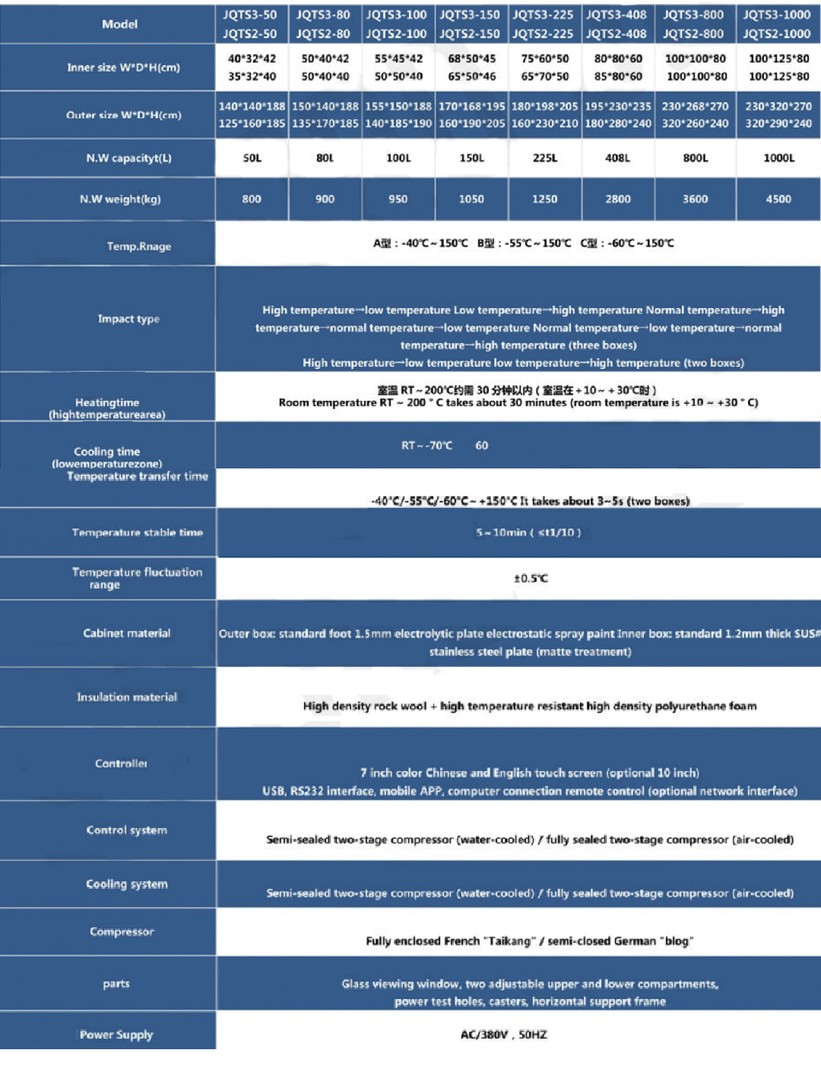

Specifications
| Models | JQTS3 (three-box) and JQTS2 (two-box), capacities 50 to 1000 L |
|---|---|
| Temperature range | Type A: -40°C to 150°C; Type B: -55°C to 150°C; Type C: -60°C to 150°C |
| Impact type | High → low, low → high, normal → high, normal → low (three-box); high → low, low → high (two-box) |
| Heating time (high-temperature zone) | RT to 200°C in about 30 minutes |
| Temperature transfer time | About 3-5 s (two-box) |
| Temperature stable time | 5-10 min |
| Temperature fluctuation | ±0.5°C |
| Cabinet material | Outer box: 1.5 mm electrolytic plate, electrostatic spray paint; inner box: 1.2 mm SUS stainless steel |
| Insulation | High-density rock wool + high-temperature-resistant high-density polyurethane foam |
| Controller | 7 inch colour touch screen (optional 10 inch); USB, RS232, mobile APP, remote PC control (optional network interface) |
| Cooling system | Semi-sealed two-stage compressor (water-cooled) / fully sealed two-stage compressor (air-cooled) |
| Compressor | Fully enclosed French "Taikang" / semi-closed German "blog" |
| Power supply | AC 380 V, 50 Hz |
| JQTS3-50 / JQTS2-50 | Inner 40x32x42 / 35x32x40 cm; outer 140x140x188 / 125x160x185 cm; 50 L; 800 kg |
| JQTS3-80 / JQTS2-80 | Inner 50x40x42 / 50x40x40 cm; outer 150x140x188 / 135x170x185 cm; 80 L; 900 kg |
| JQTS3-100 / JQTS2-100 | Inner 55x45x42 / 50x50x40 cm; outer 155x150x188 / 140x185x190 cm; 100 L; 950 kg |
| JQTS3-150 / JQTS2-150 | Inner 68x50x45 / 65x50x46 cm; outer 170x168x195 / 160x190x205 cm; 150 L; 1050 kg |
| JQTS3-225 / JQTS2-225 | Inner 75x60x50 / 65x70x50 cm; outer 180x198x205 / 160x230x210 cm; 225 L; 1250 kg |
| JQTS3-408 / JQTS2-408 | Inner 80x80x60 / 85x80x60 cm; outer 195x230x235 / 180x280x240 cm; 408 L; 2800 kg |
| JQTS3-800 / JQTS2-800 | Inner 100x100x80 / 100x100x80 cm; outer 230x268x270 / 320x260x240 cm; 800 L; 3600 kg |
| JQTS3-1000 / JQTS2-1000 | Inner 100x125x80 / 100x125x80 cm; outer 230x320x270 / 320x290x240 cm; 1000 L; 4500 kg |
Supplied with
- Chamber with glass viewing window, two adjustable compartments and power test holes
- Casters and horizontal support frame
Options and accessories
- Optional 10 inch touch screen and network interface
- Water-cooled or air-cooled refrigeration

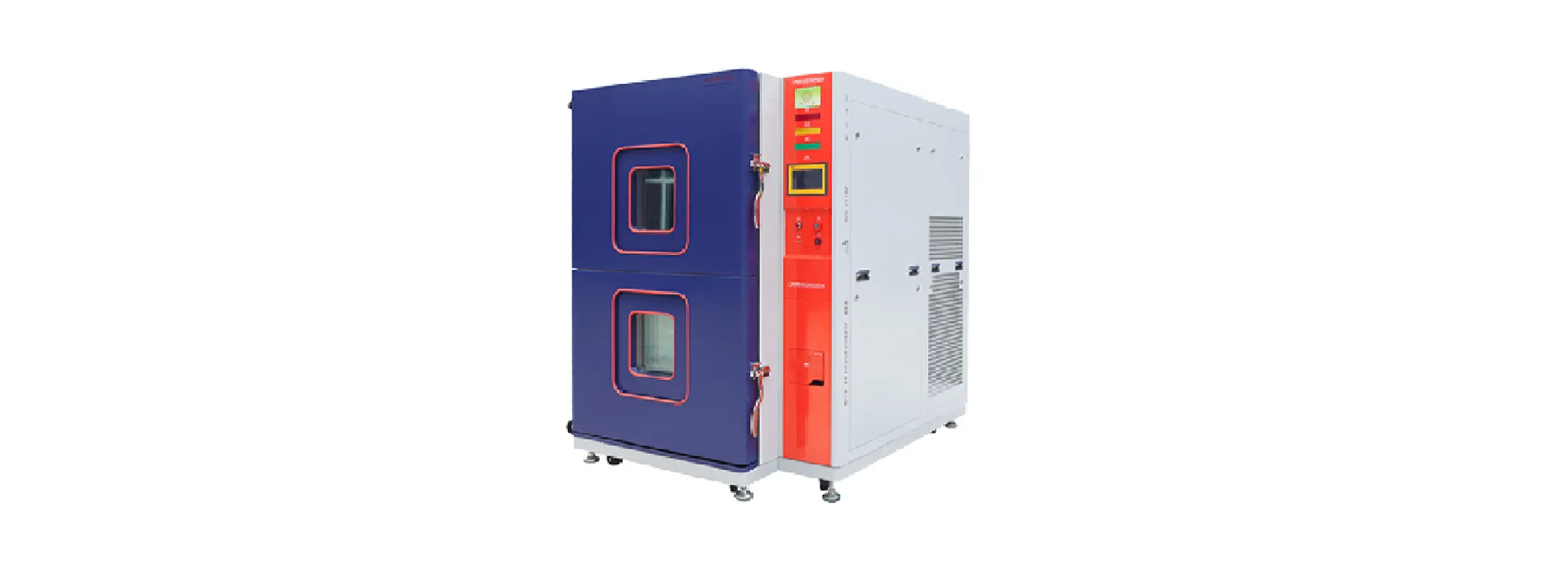

More views
