UTD 0415
Sieve Shaker

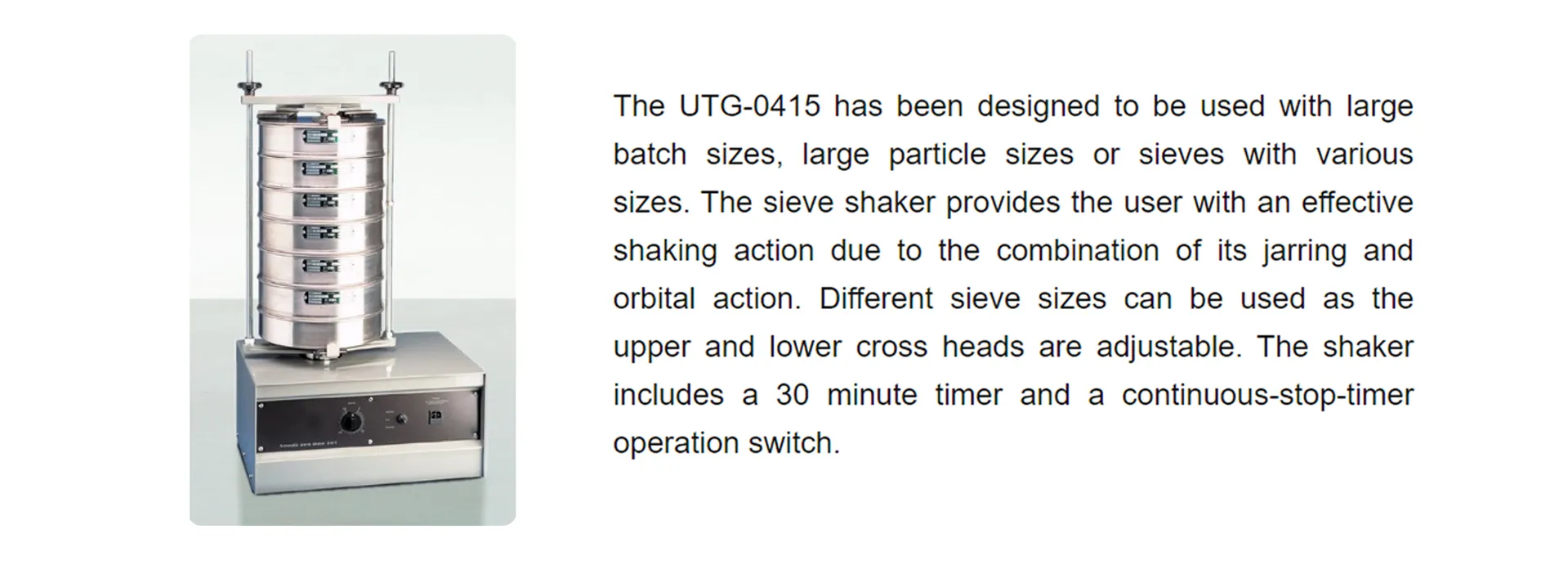

UTG-0415The UTG-0415 has been designed for use with large batch sizes, large particle sizes or sieves of various sizes. The shaker gives an effective shaking action through the combination of its jarring and orbital action. Different sieve sizes can be used because the upper and lower cross heads are adjustable. The shaker includes a 30-minute timer and a continuous / stop / timer operation switch.

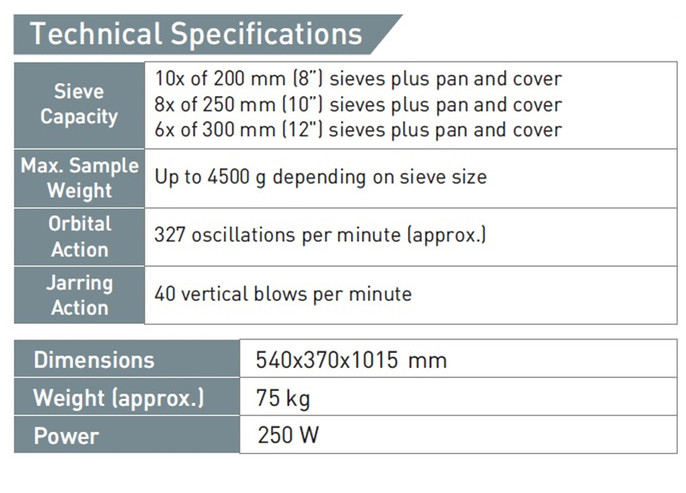

Specifications
| Sieve capacity | 10 x 200 mm (8") sieves, 8 x 250 mm (10") sieves or 6 x 300 mm (12") sieves, plus pan and cover |
|---|---|
| Max. sample weight | Up to 4500 g depending on sieve size |
| Orbital action | 327 oscillations per minute (approx.) |
| Jarring action | 40 vertical blows per minute |
| Timer | 30 minutes, with continuous / stop / timer switch |
| Dimensions | 540 x 370 x 1015 mm |
| Weight (approx.) | 75 kg |
| Power | 250 W |
Supplied with
- Sieve shaker with adjustable cross heads and timer
Options and accessories
- Test sieves, pan and cover (sold separately)

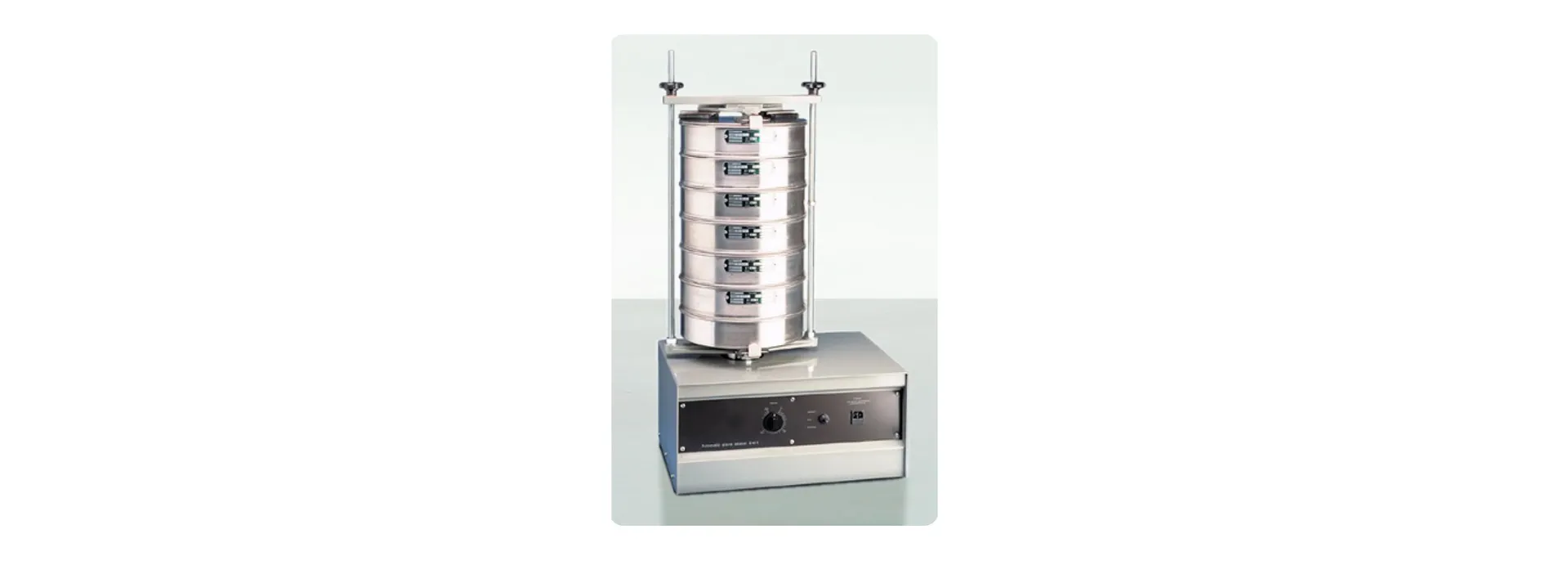

More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
