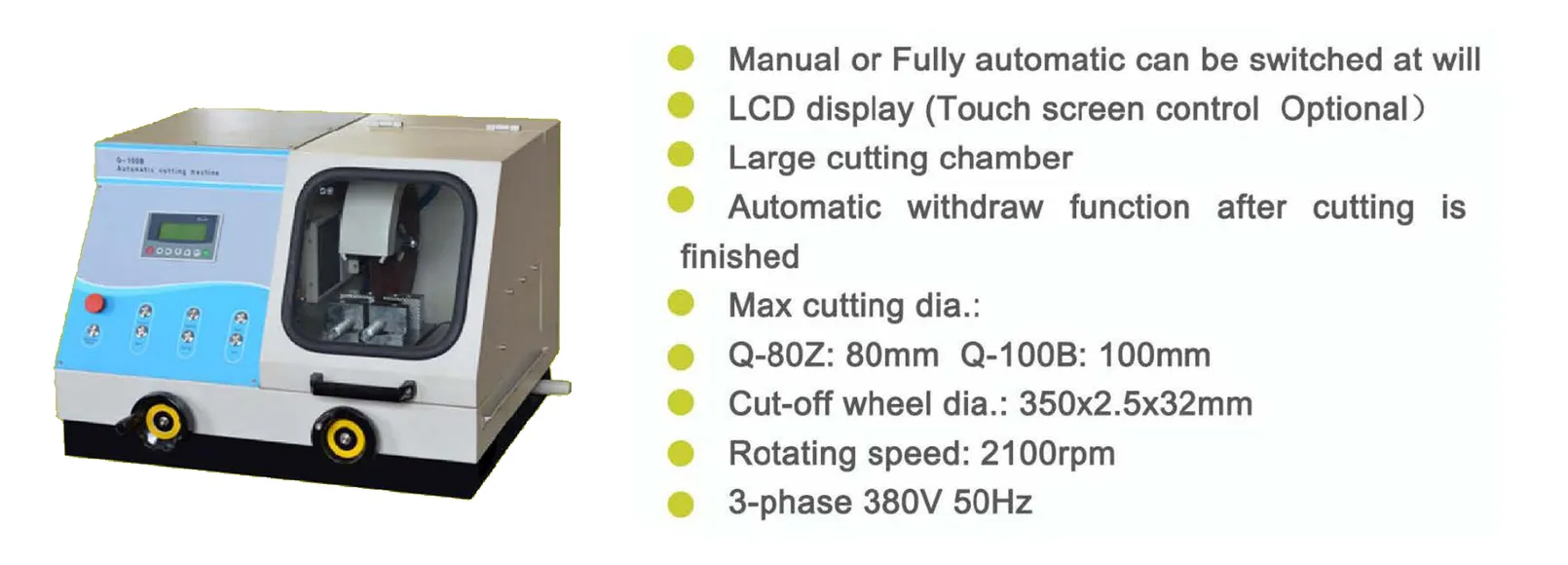

Cutting Machine Q-80Z / Q-100B
Q-80Z/100BMetallographic cut-off machine that can be switched between manual and fully automatic operation, with LCD display (touch screen optional), automatic withdraw after cutting, and a 350 mm cut-off wheel.
Specifications
| Operation | Manual or fully automatic, switchable at will |
|---|---|
| Display | LCD display (touch screen control optional) |
| Cutting function | Automatic withdraw after cutting is finished |
| Max. cutting diameter | Q-80Z: 80 mm; Q-100B: 100 mm |
| Cut-off wheel | 350 x 2.5 x 32 mm |
| Rotating speed | 2100 rpm |
| Power supply | 3-phase 380 V, 50 Hz |
Supplied with
- Q-80Z or Q-100B cutting machine
Options and accessories
- Touch screen control
- Contact BPS for cut-off wheels, clamps and coolant
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
