Inverted Metallurgical Microscope

4XB

4XB is a binocular inverted metallurgical microscope for observing metal microstructure, covering 100X to 1250X magnification. It uses a 6 V 12 W bromine tungsten lamp and a 75 × 50 mm mechanical stage.

Request a quotationLINE: bps instrument
Microscope 4XB Metallurgical

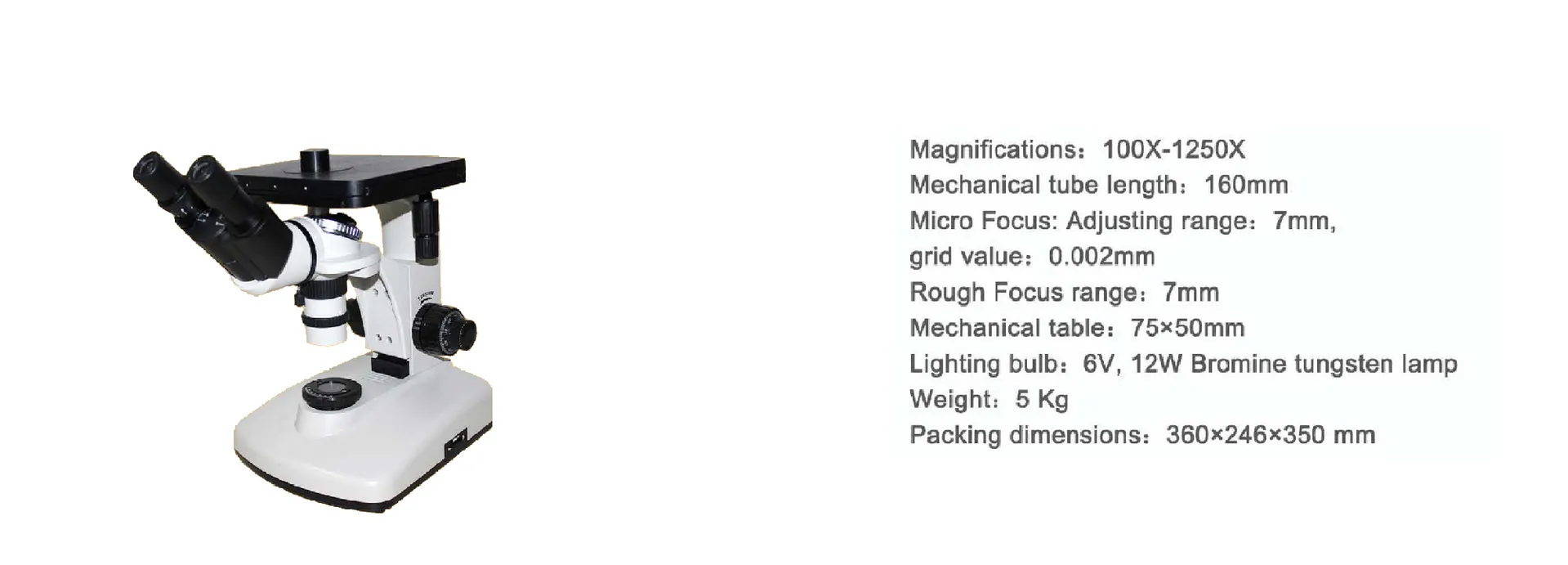

Specifications

Magnification100X-1250X
Mechanical tube length160 mm
Micro focusAdjusting range 7 mm, grid value 0.002 mm
Rough focus range7 mm
Mechanical table75 × 50 mm
Lighting bulb6 V, 12 W bromine tungsten lamp
Weight5 kg
Packing dimensions360 × 246 × 350 mm

Supplied with

  • 4XB microscope with standard eyepieces and objectives
  • Typical configuration only; BPS confirms the exact supply list in the quotation

Options and accessories

  • Additional eyepieces and objectives
  • Camera adapter and analysis software

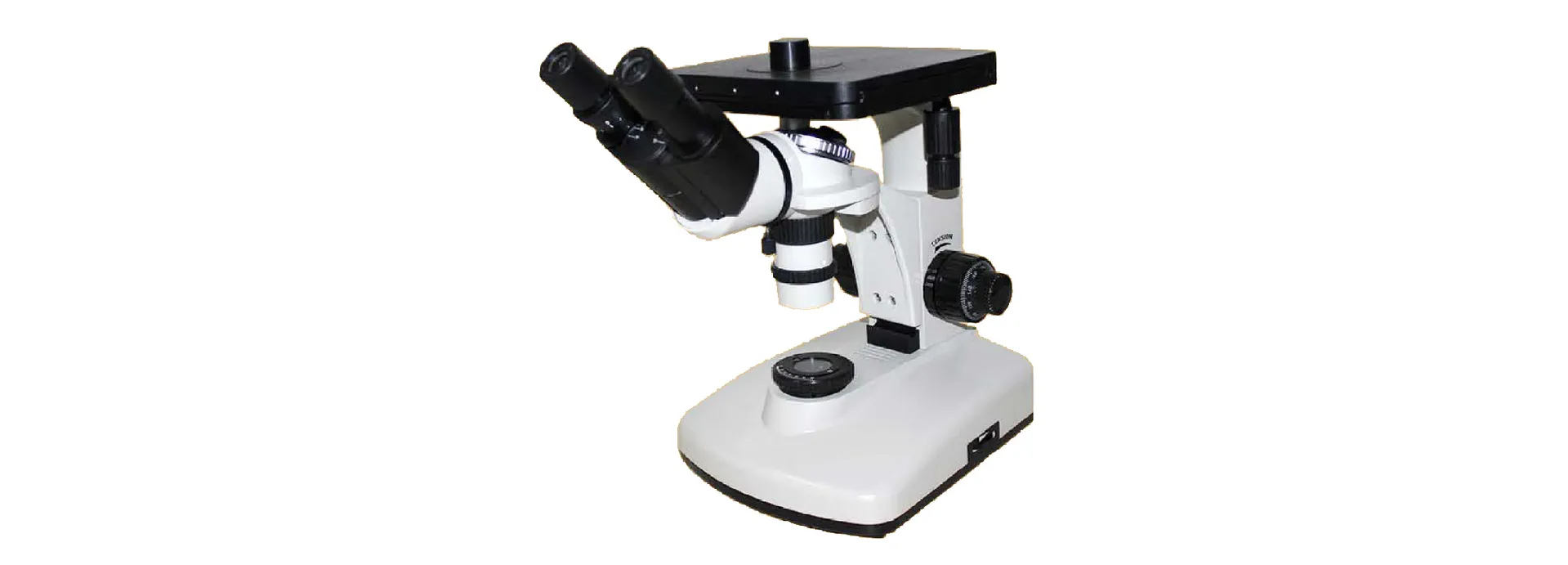

More views

Microscope 4XB Metallurgical

Need help choosing?

Tell us your sample, standard and budget. BPS will recommend the right model and quote it.

Contact sales

Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
