Cutting Machine

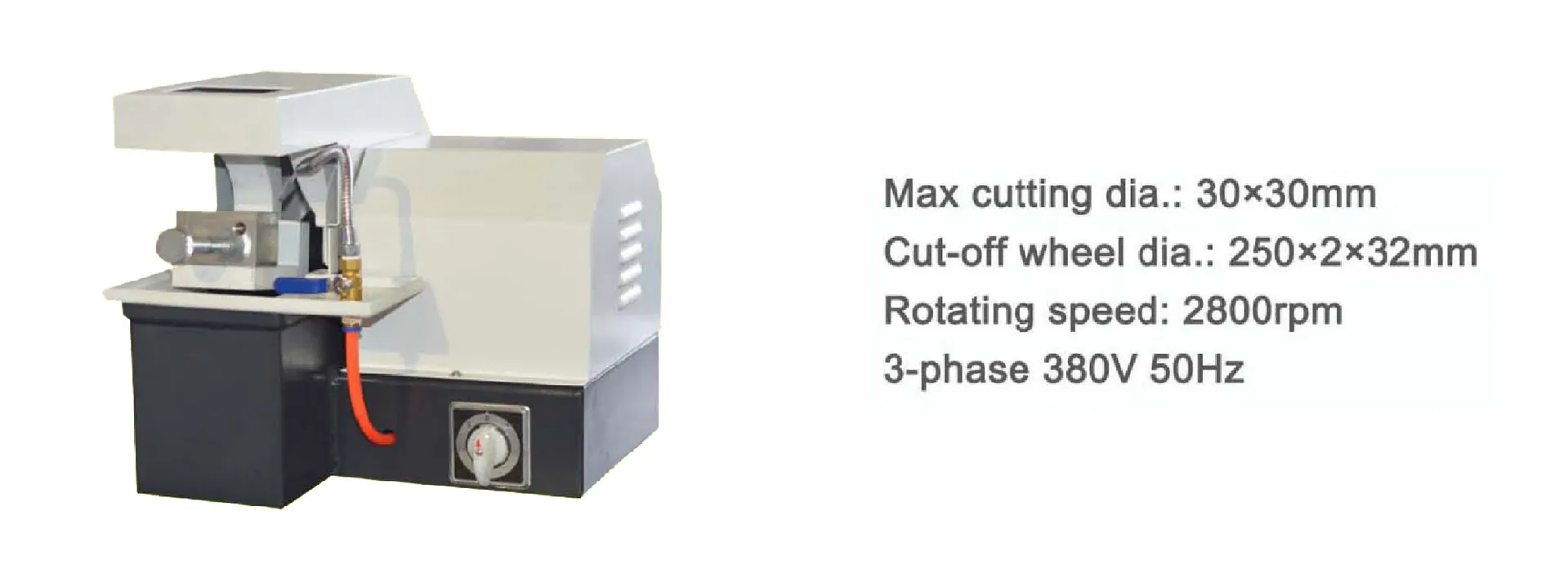

Q-2Q-2 is a metallographic specimen cutting machine for cutting metal samples to size before mounting, grinding and polishing. It cuts sections up to 30 x 30 mm with a 250 mm cut-off wheel running at 2800 rpm.
Specifications
| Max. cutting diameter | 30 x 30 mm |
|---|---|
| Cut-off wheel diameter | 250 x 2 x 32 mm |
| Rotating speed | 2800 rpm |
| Power supply | 3-phase 380 V / 50 Hz |
Supplied with
- Q-2 cutting machine
- Cut-off wheel and cooling system
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Spare abrasive cut-off wheels (250 x 2 x 32 mm)
- Specimen clamps and fixtures on request

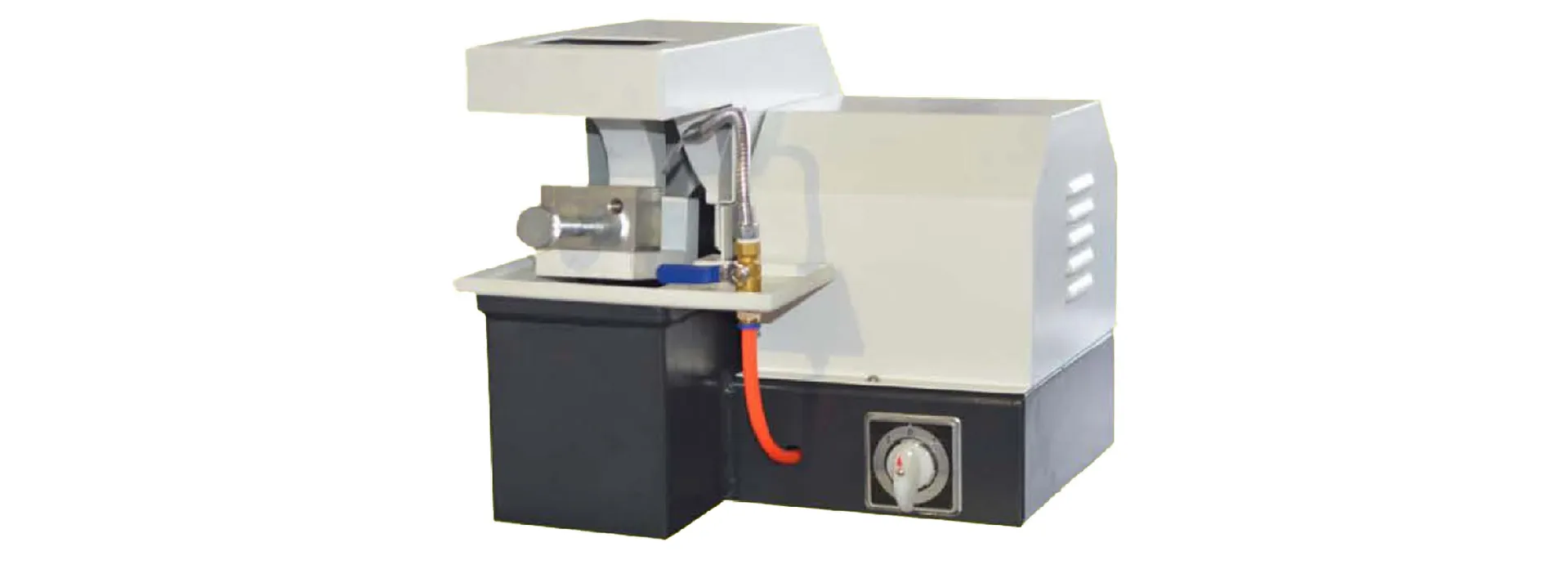

More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
