Microscope ZTX Series

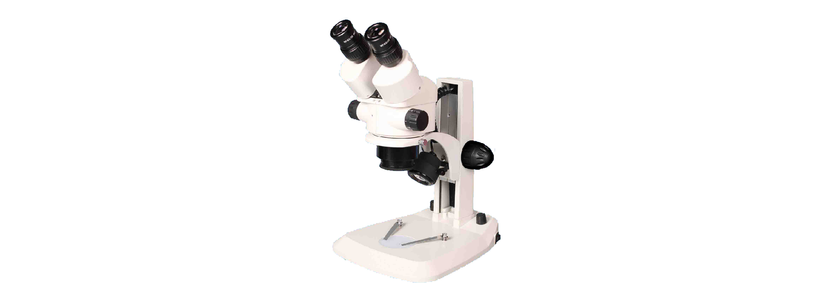

Stereo Zoom Microscope

ZTX-PW7045

Binocular stereo zoom microscope with 7X to 45X total magnification and 100 mm working distance, with incident and transmitted LED illumination.

Request a quotationLINE: bpsinstrument
Stereo zoom microscope ZTX-PW7045

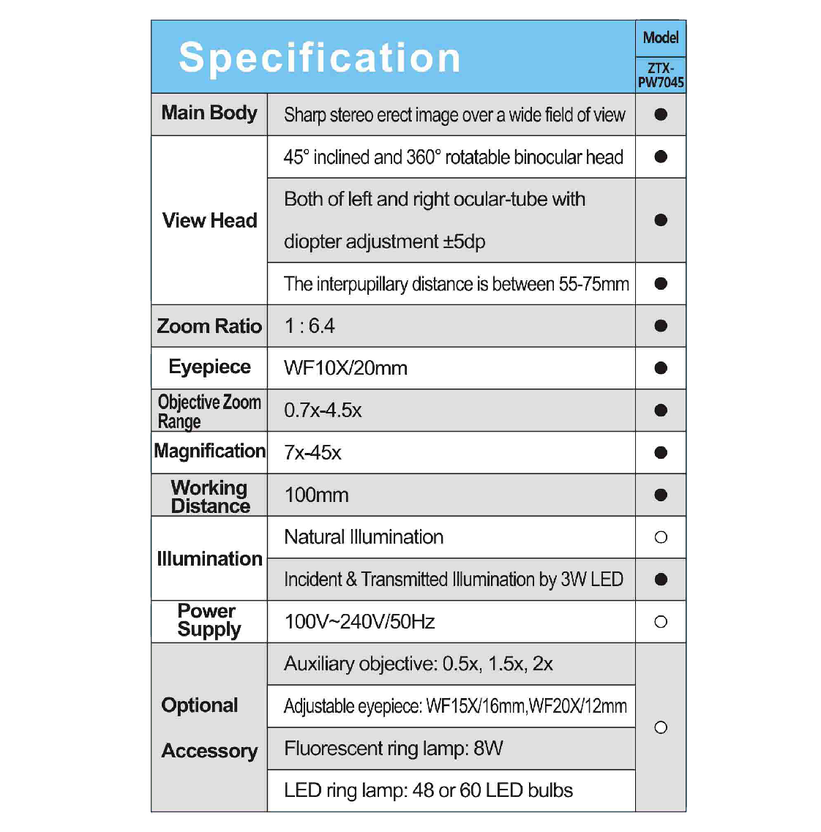

Specifications

Viewing headBinocular, 45° inclined
Diopter adjustment+/- 5
Interpupillary distance55 to 75 mm
EyepieceWF10X/20
Zoom ratio1:6.4
Objective zoom0.7X to 4.5X
Total magnification7X to 45X
Working distance100 mm
IlluminationIncident and transmitted, 3 W LED
Power supply100 to 240 V, 50 Hz

Options and accessories

  • Auxiliary objectives 0.5X, 1.5X and 2X
  • Eyepieces WF15X/16 and WF20X/12
  • Fluorescent ring lamp 8 W
  • LED ring lamp, 48 or 60 LED
  • Natural illumination
