UTEST
Impermeability Testing Machine

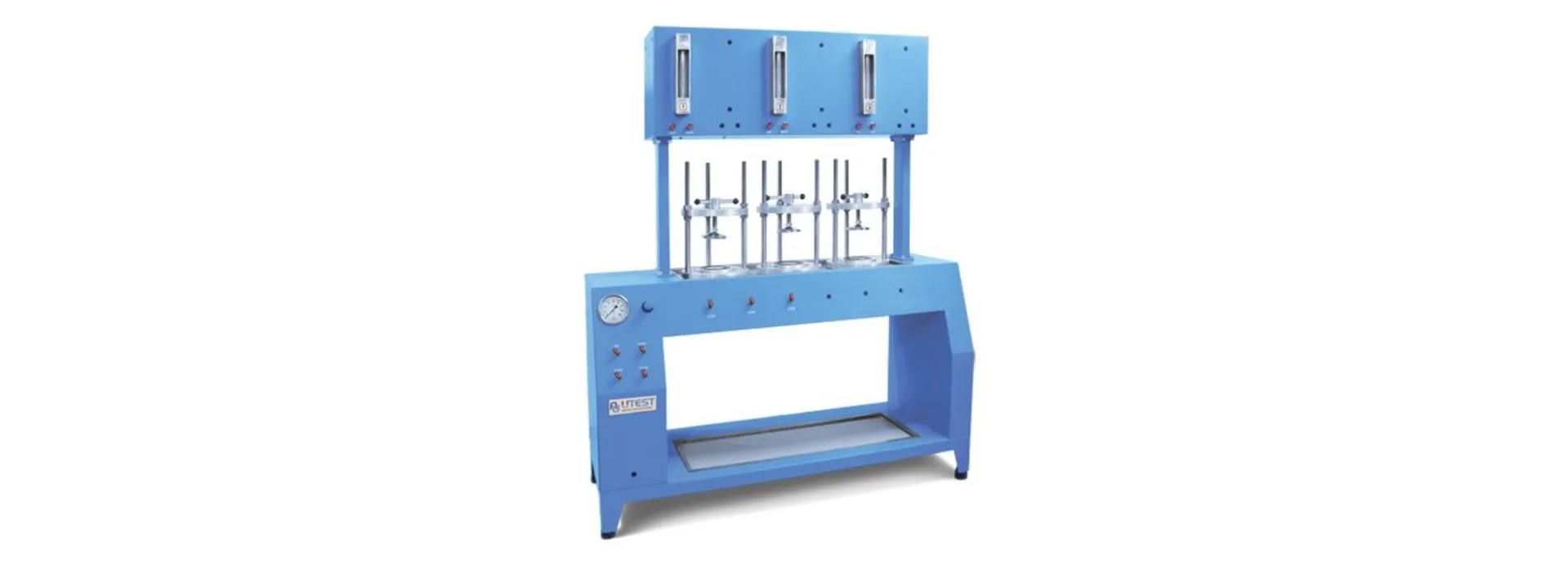

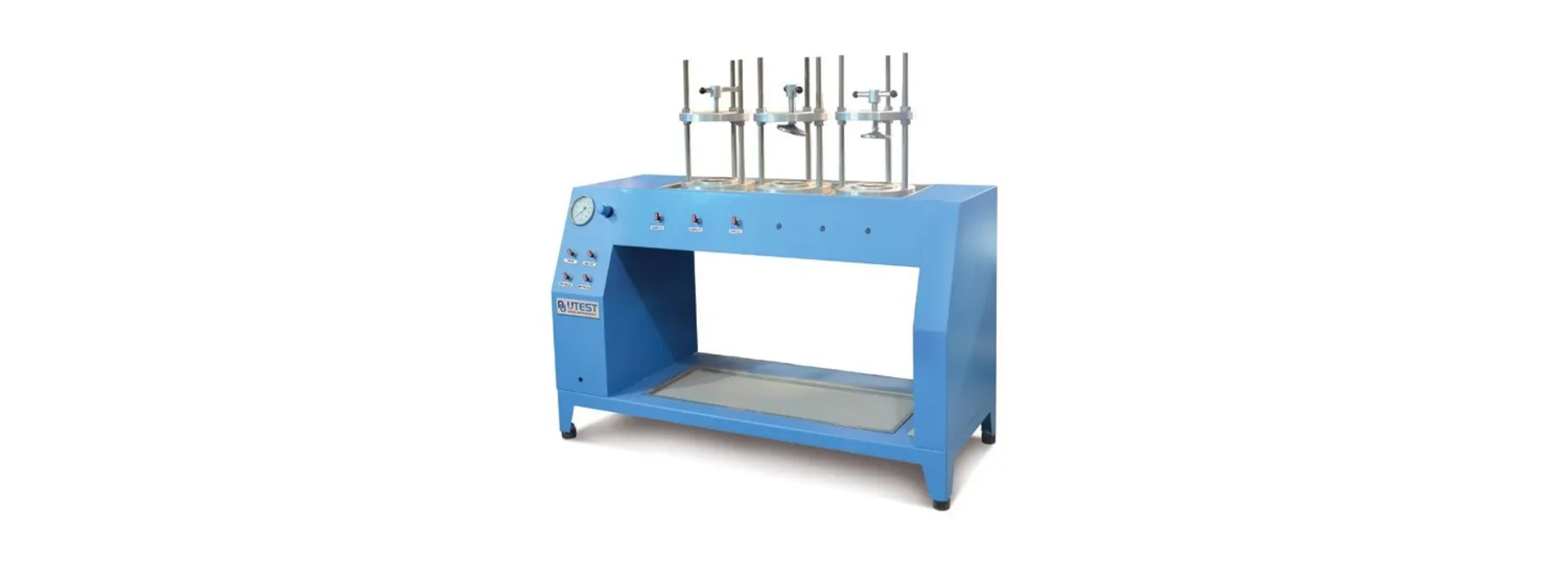

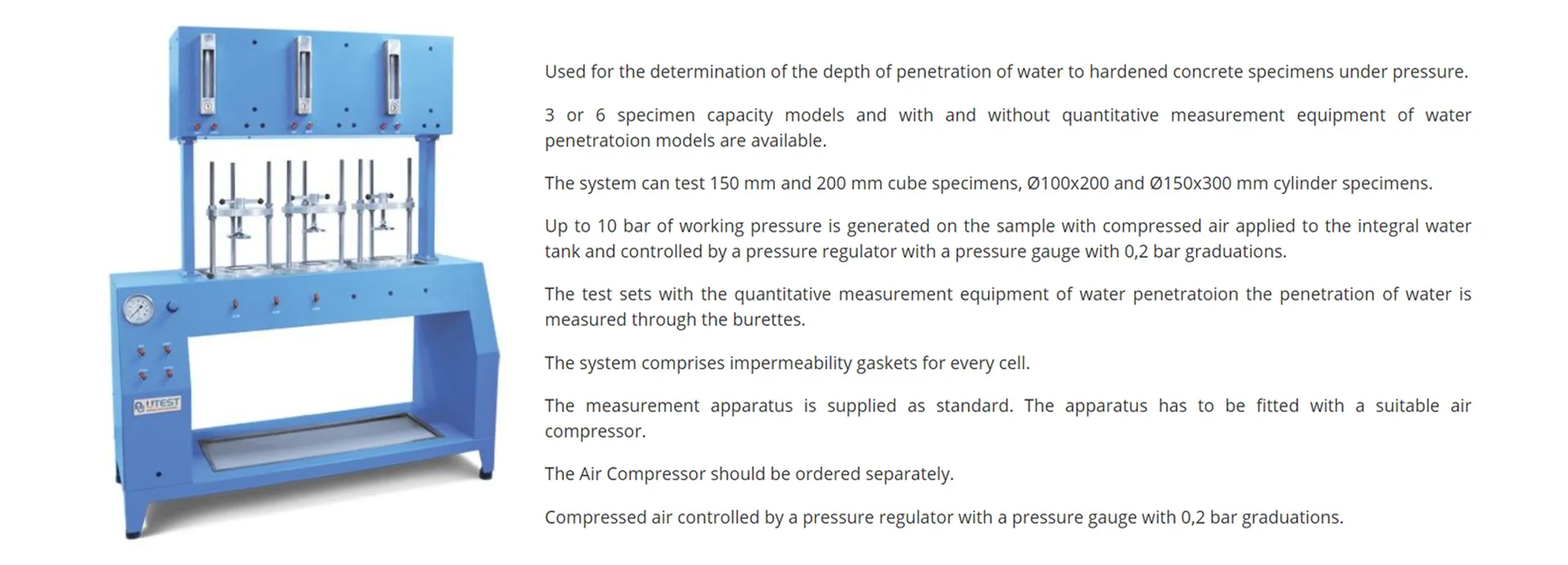

UTAS-1080 / 1082 / 1090 / 1092The UTAS-1080 to UTAS-1092 series is used for determining the depth of penetration of water into hardened concrete specimens under pressure. 3 or 6 specimen capacity models are available, with and without quantitative measurement equipment of water penetration. The system can test 150 mm and 200 mm cube specimens and Ø100x200 and Ø150x300 mm cylinder specimens.
Specifications
| Working pressure | Up to 10 bar, from compressed air via the integral water tank and a pressure regulator with 0.2 bar graduations |
|---|---|
| Specimens | 150 mm and 200 mm cubes; Ø100x200 and Ø150x300 mm cylinders |
| Capacity | 3 or 6 specimens (model dependent) |

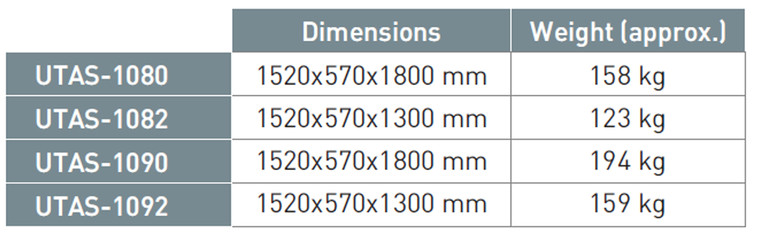

| UTAS-1080 | 1520 x 570 x 1800 mm, 158 kg (approx.) |
| UTAS-1082 | 1520 x 570 x 1300 mm, 123 kg (approx.) |
| UTAS-1090 | 1520 x 570 x 1800 mm, 194 kg (approx.) |
| UTAS-1092 | 1520 x 570 x 1300 mm, 159 kg (approx.) |
Supplied with
- Impermeability gaskets for every cell
- Pressure gauge regulator
Options and accessories
- Air compressor (must be ordered separately)
- Quantitative water penetration measurement equipment (burettes), model dependent
