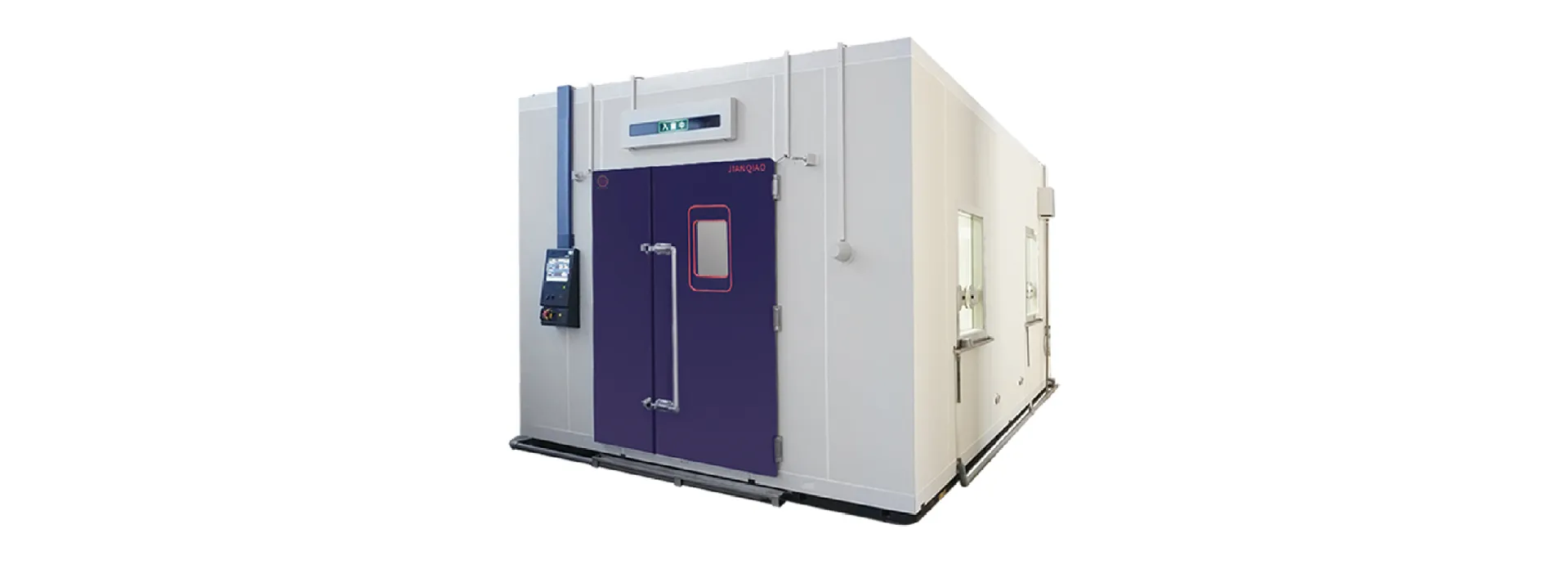

High Temperature Aging Room

JQHTA-08 to JQHTA-40

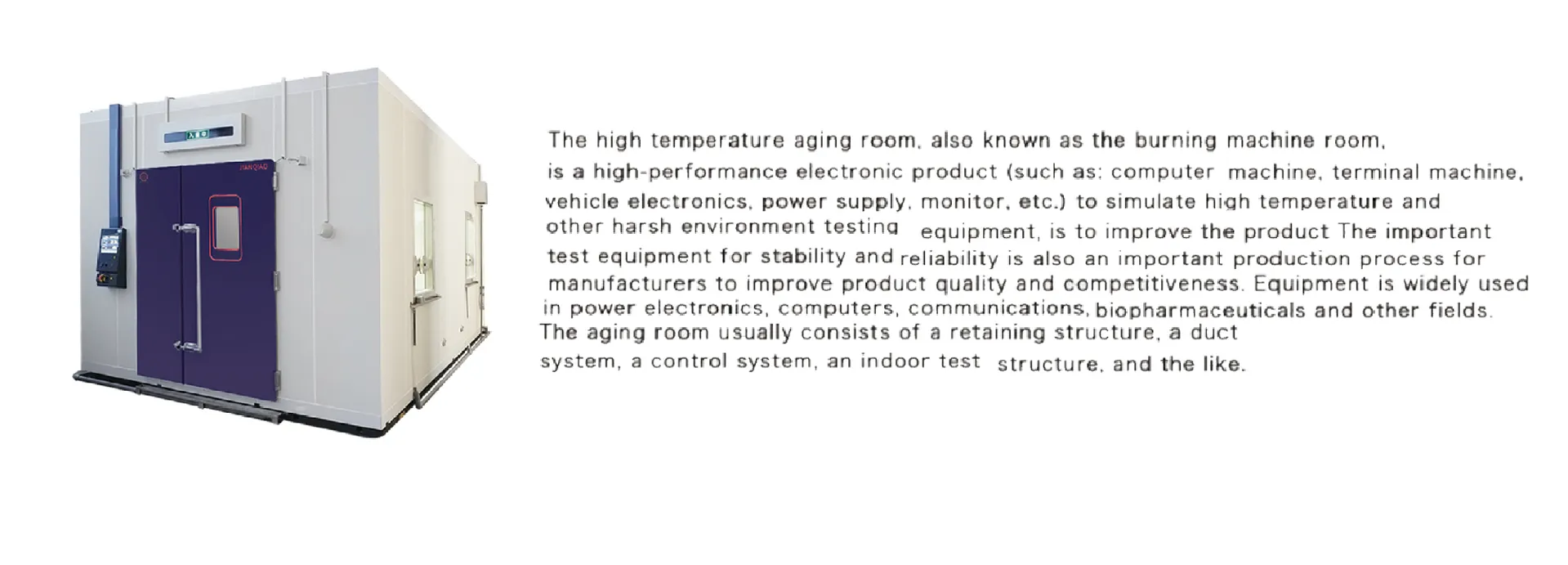

The high temperature aging room, also known as the burn-in room, simulates high temperature and other harsh environments to test high-performance electronic products such as computers, terminals, vehicle electronics, power supplies and monitors. It is an important test for stability and reliability, and a key production process for manufacturers to improve product quality and competitiveness. Widely used in power electronics, computers, communications, biopharmaceuticals and other fields. An aging room usually consists of an enclosure structure, a duct system, a control system and an indoor test structure.

Request a quotation LINE: bps instrument

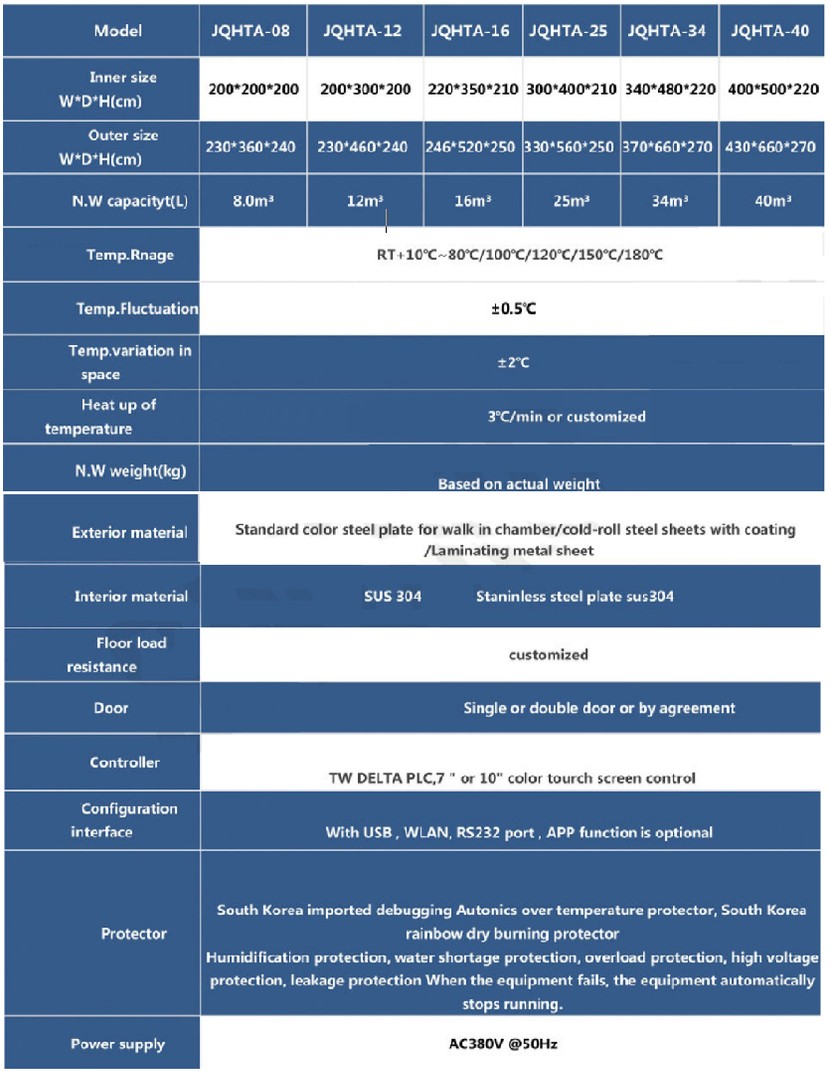

Specifications

Temperature range	RT+10°C to 80 / 100 / 120 / 150 / 180°C
Temperature fluctuation	±0.5°C
Temperature variation in space	±2°C
Heat-up rate	3°C/min or customized
Exterior / interior	Colour steel plate (cold-rolled sheet with coating / laminated metal sheet) / SUS304 stainless steel
Floor load resistance	Customized
Door	Single or double door, or by agreement
Controller	TW Delta PLC, 7" or 10" colour touch screen
Interface	USB, WLAN, RS232; APP function optional
Protection	Over-temperature protector, dry-burn protector, humidification and water-shortage protection, overload, high-voltage and leakage protection; automatic stop on fault
Power supply	AC 380 V, 50 Hz
JQHTA-08	Inner 200x200x200 cm; outer 230x360x240 cm; 8.0 m³
JQHTA-12	Inner 200x300x200 cm; outer 230x460x240 cm; 12 m³
JQHTA-16	Inner 220x350x210 cm; outer 246x520x250 cm; 16 m³
JQHTA-25	Inner 300x400x210 cm; outer 330x560x250 cm; 25 m³
JQHTA-34	Inner 340x480x220 cm; outer 370x660x270 cm; 34 m³
JQHTA-40	Inner 400x500x220 cm; outer 430x660x270 cm; 40 m³
