KAL Force Transducer (Load Cell)

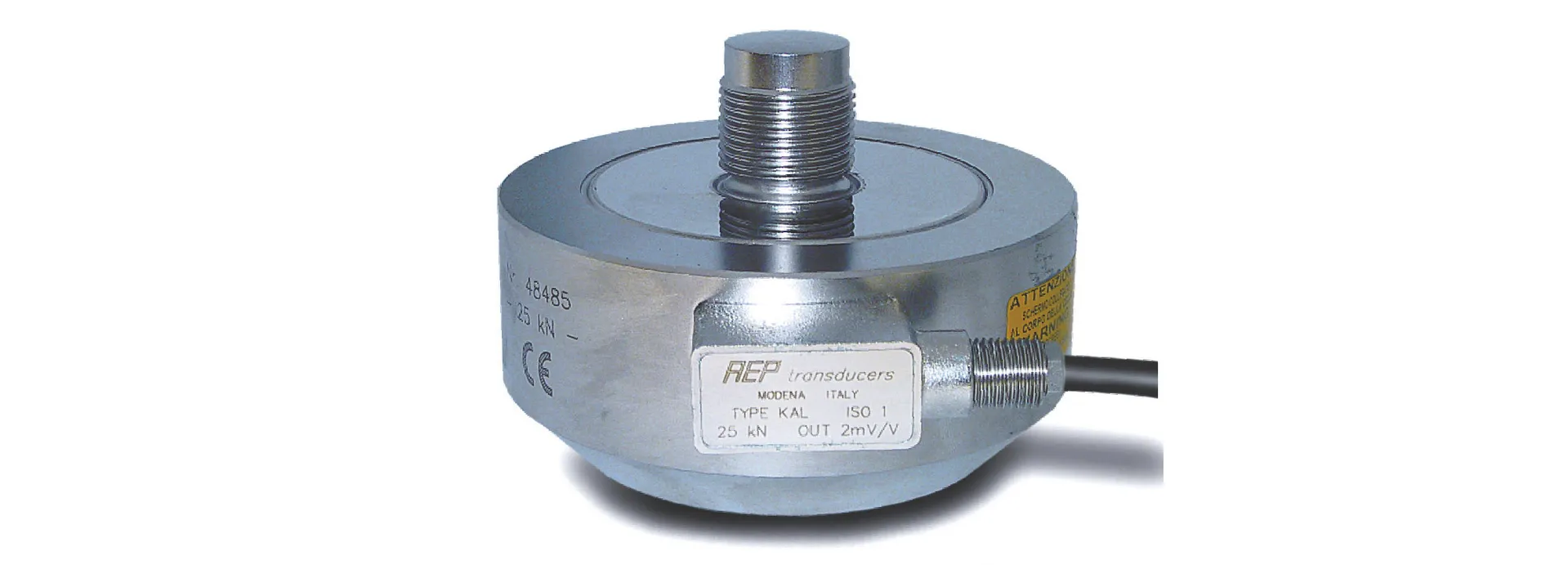

KAL seriesThe KAL series is a stainless steel force transducer (load cell) made in Italy, available in ISO 376 accuracy classes 00, 0.5 and 1 with nominal loads from 10 kN to 2000 kN. It is IP67 protected, supplied with a 15 m cable.

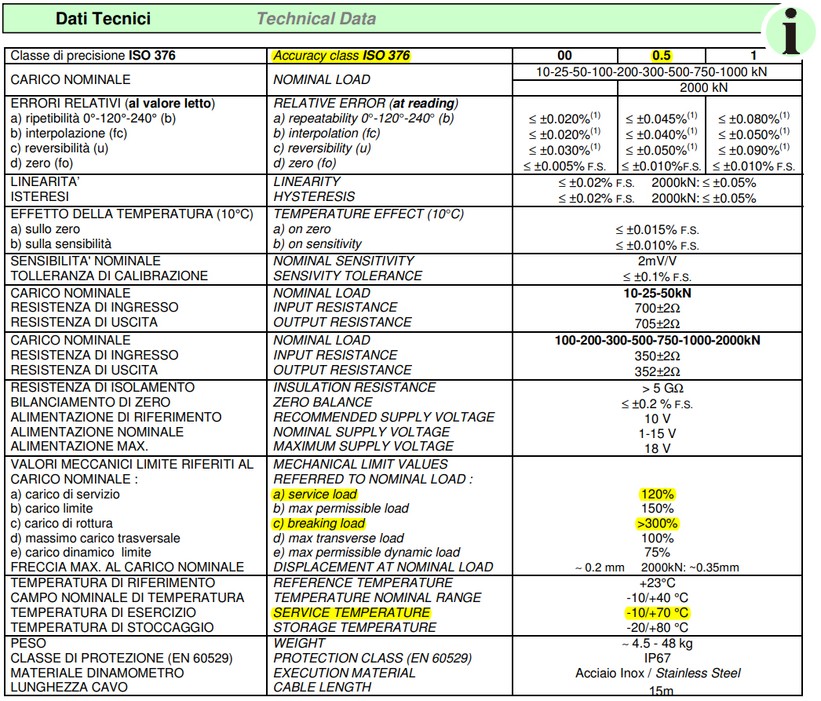

Specifications
| Accuracy class (ISO 376) | 00 / 0.5 / 1 |
|---|---|
| Nominal load | 10, 25, 50, 100, 200, 300, 500, 750, 1000 kN; 2000 kN |
| Repeatability (class 00 / 0.5 / 1) | ≤ ±0.020% / ±0.045% / ±0.080% |
| Interpolation | ≤ ±0.020% / ±0.040% / ±0.050% |
| Reversibility | ≤ ±0.030% / ±0.050% / ±0.090% |
| Zero error | ≤ ±0.005% / ±0.010% / ±0.010% F.S. |
| Linearity / hysteresis | ≤ ±0.02% F.S. (2000 kN: ≤ ±0.05%) |
| Temperature effect (10°C) | Zero ≤ ±0.015% F.S.; sensitivity ≤ ±0.010% F.S. |
| Nominal sensitivity | 2 mV/V (tolerance ≤ ±0.1% F.S.) |
| Input / output resistance | 10-25-50 kN: 700±2 Ω / 705±2 Ω; 100-2000 kN: 350±2 Ω / 352±2 Ω |
| Insulation resistance | > 5 GΩ |
| Supply voltage | Recommended 10 V; nominal 1-15 V; max. 18 V |
| Zero balance | ≤ ±0.2% F.S. |
| Mechanical limits | Service load 120%; max. permissible 150%; breaking > 300%; transverse 100%; dynamic 75% |
| Displacement at nominal load | ~0.2 mm (2000 kN: ~0.35 mm) |
| Temperature | Reference +23°C; nominal -10/+40°C; service -10/+70°C; storage -20/+80°C |
| Weight | ~4.5 - 48 kg |
| Protection / material / cable | IP67 (EN 60529) / stainless steel / 15 m |
Supplied with
- KAL force transducer with 15 m cable
Options and accessories

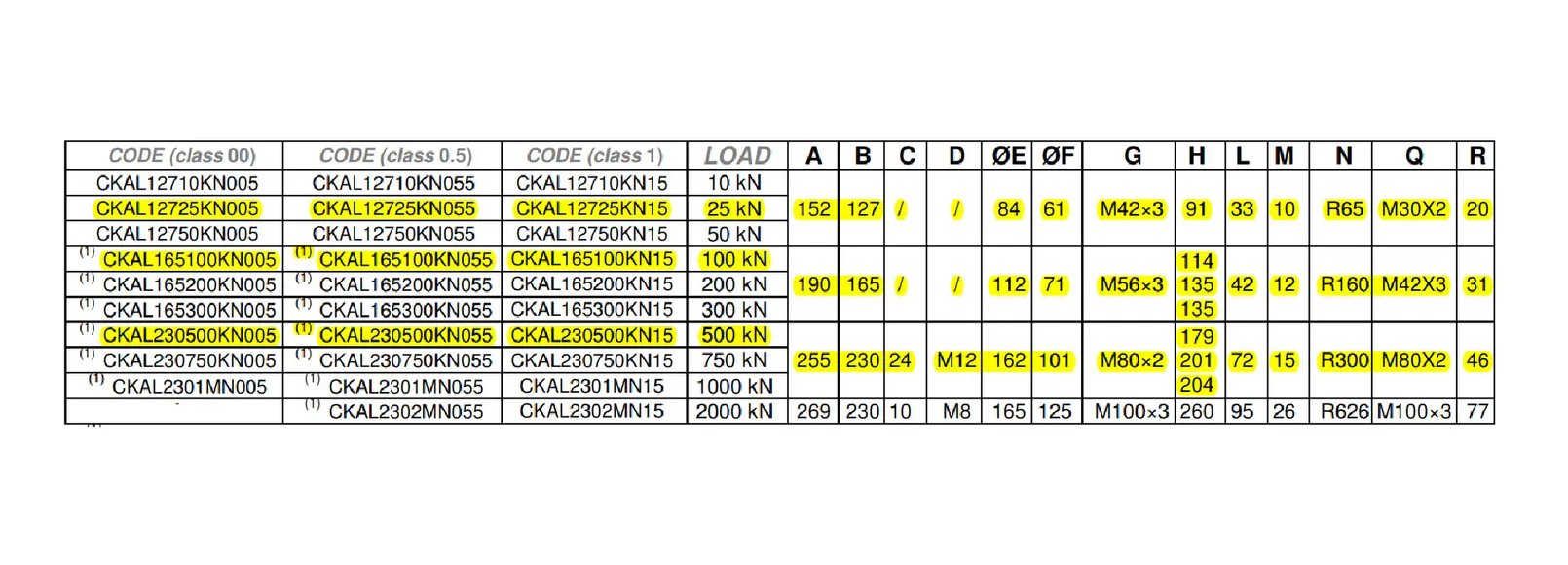

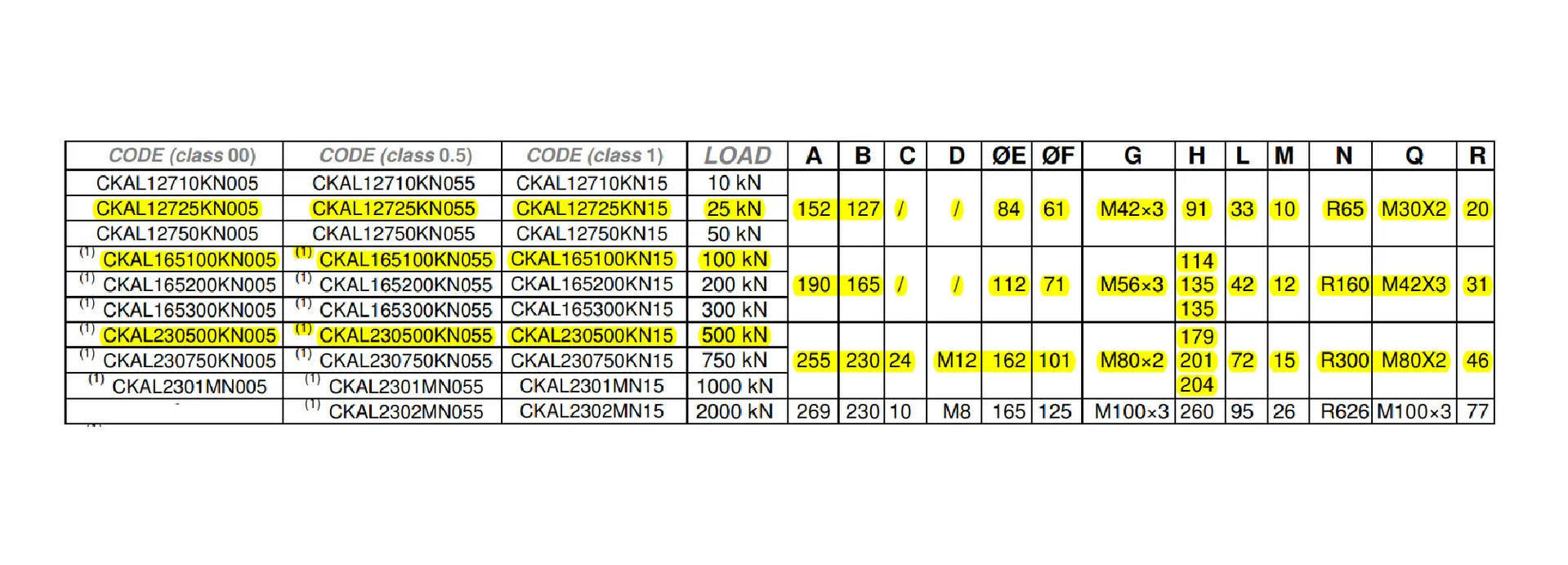

- Other nominal loads and accuracy classes (see table)
