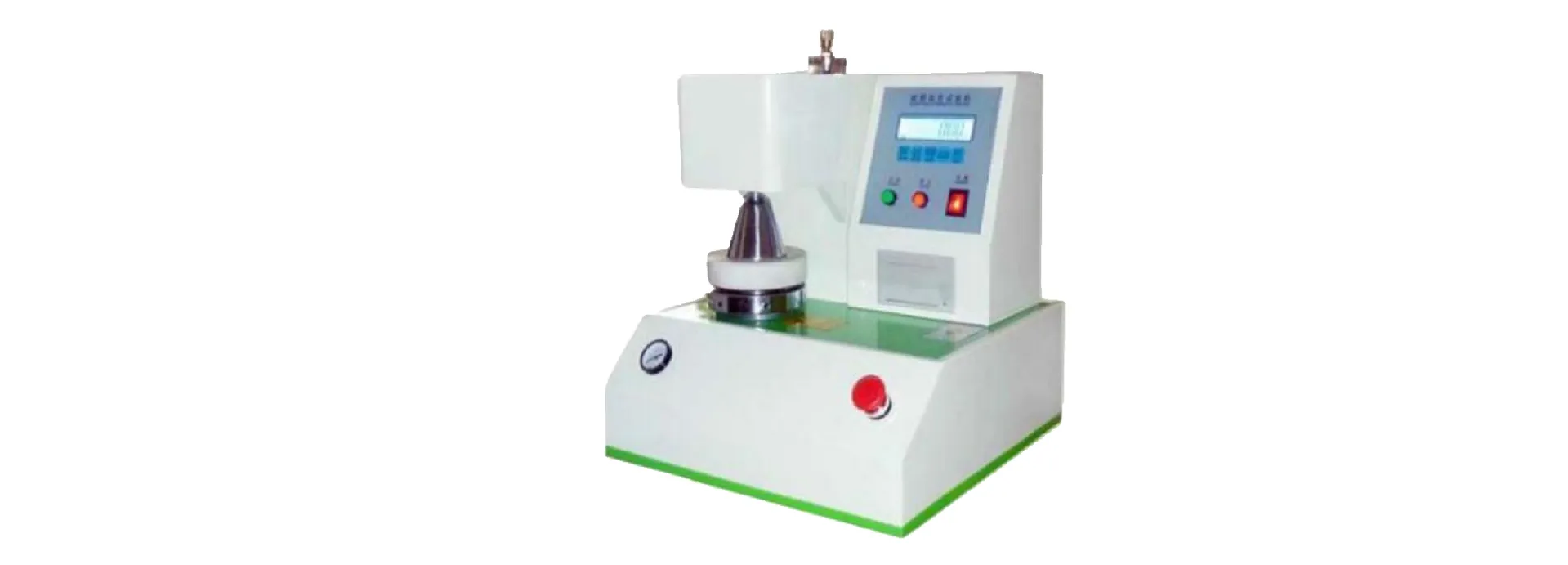

Bursting Strength Tester

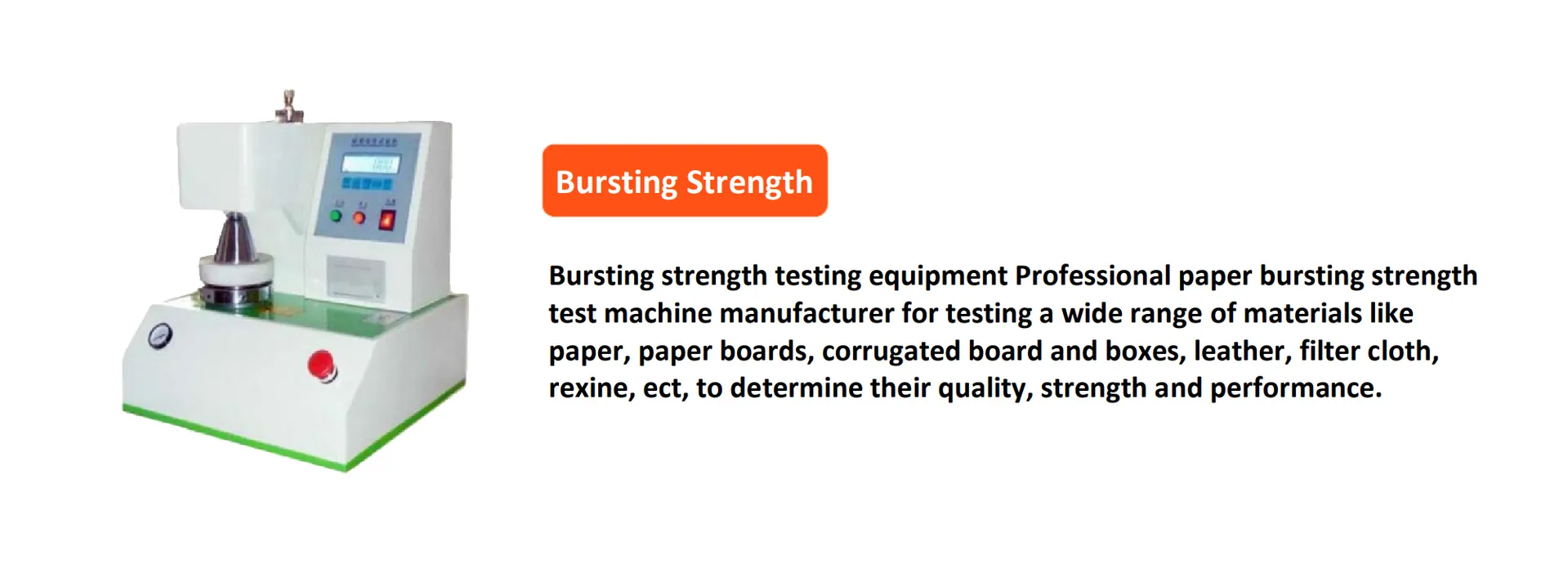

250-5600 kPaThis bursting strength tester determines the quality and strength of paper, paper board, corrugated board and boxes, leather, filter cloth and similar materials. It measures bursting pressure from 250 to 5600 kPa, shows results on an LCD monitor and prints them with a built-in micro-printer.

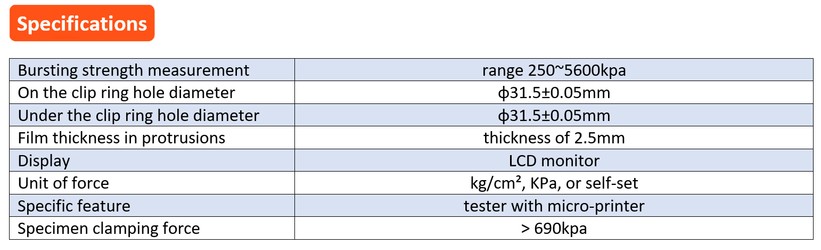

Specifications
| Bursting strength measurement | 250-5600 kPa |
|---|---|
| Clip ring hole diameter (upper) | φ31.5 ±0.05 mm |
| Clip ring hole diameter (lower) | φ31.5 ±0.05 mm |
| Film thickness in protrusions | 2.5 mm |
| Display | LCD monitor |
| Unit of force | kg/cm², kPa, or self-set |
| Specific feature | Tester with micro-printer |
| Specimen clamping force | > 690 kPa |
Supplied with
- Bursting strength tester with micro-printer
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Spare diaphragms and printer paper
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
