Metallographic Mounting Press

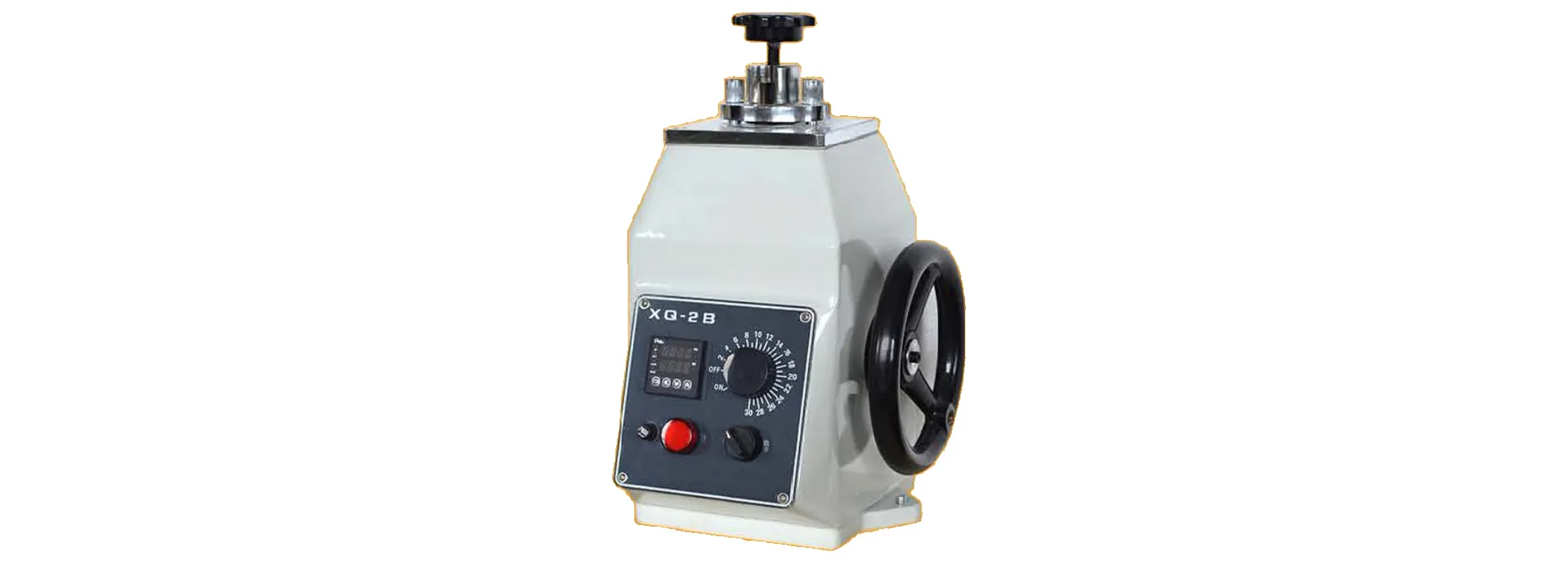

XQ-2BXQ-2B is a manual hot mounting press for embedding metallographic specimens in thermosetting resin. It accepts 25, 30 and 45 mm molds and heats at up to 800 W over a 100-180 °C range.

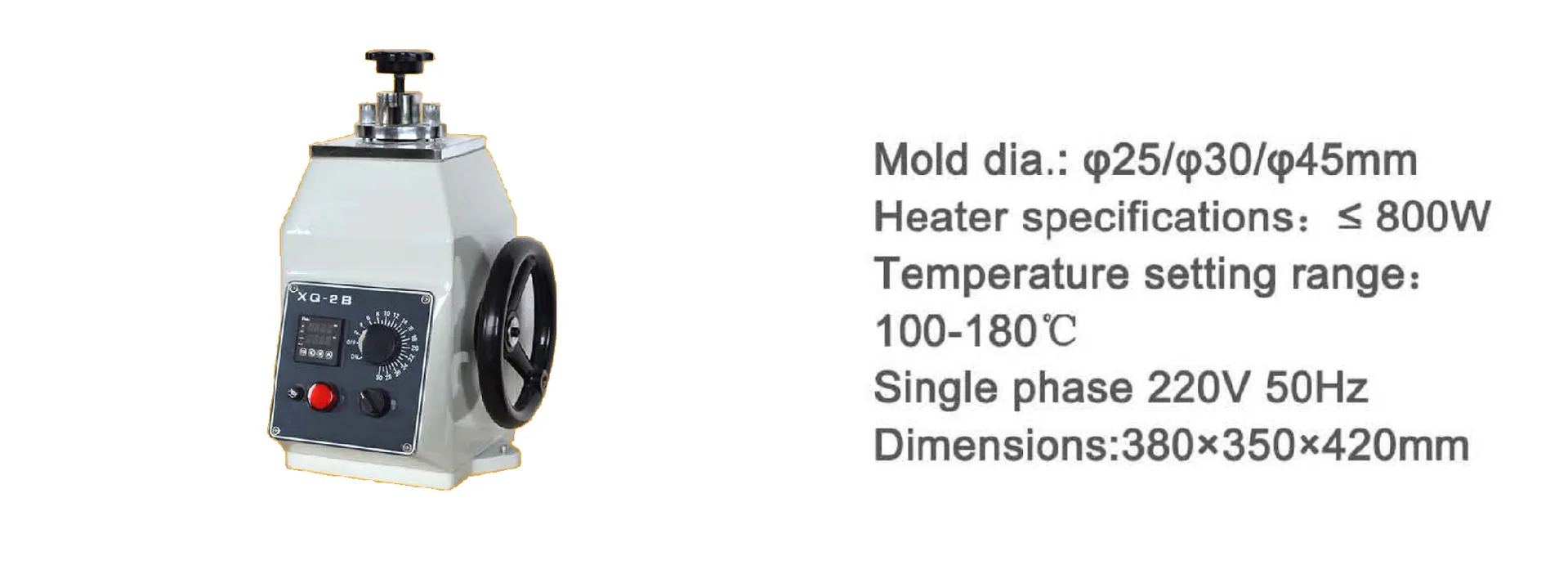

Specifications
| Mold diameter | φ25 / φ30 / φ45 mm |
|---|---|
| Heater power | ≤ 800 W |
| Temperature setting range | 100-180 °C |
| Power supply | Single phase 220 V / 50 Hz |
| Dimensions | 380 × 350 × 420 mm |
Supplied with
- XQ-2B mounting press
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Mold sets (25 / 30 / 45 mm)
- Mounting resin powder
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
