Automatic Grinding & Polishing Machine

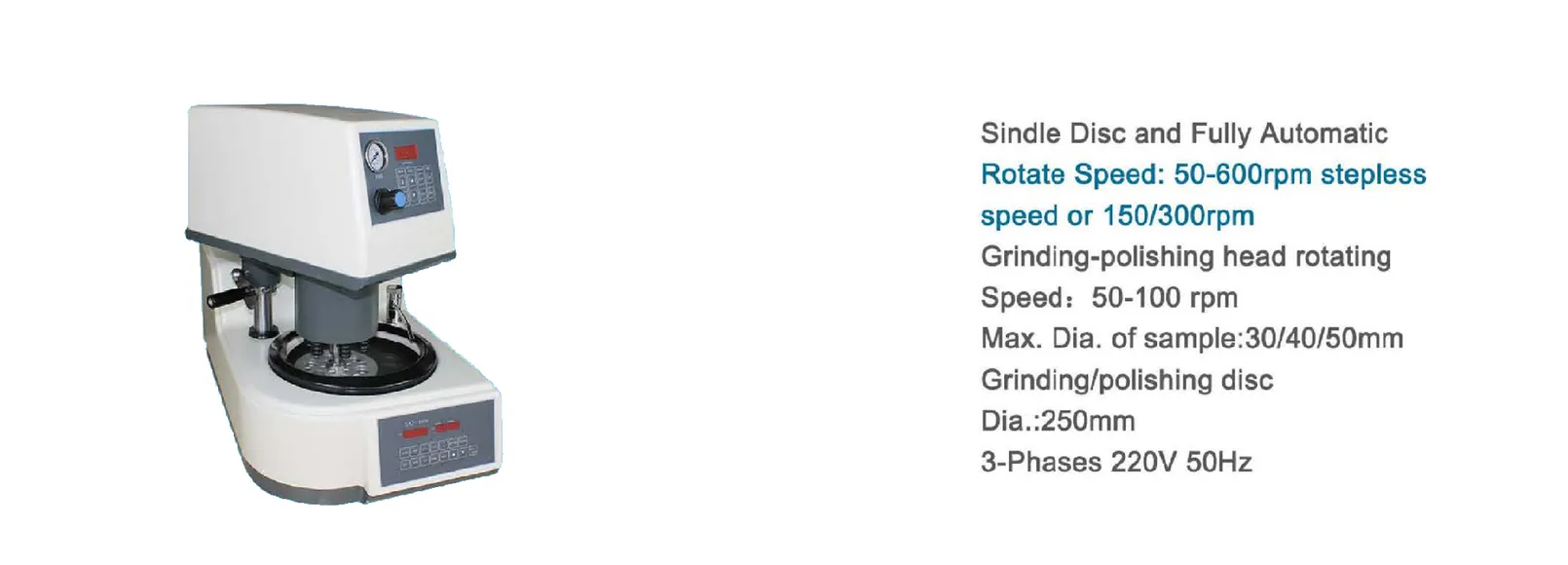

Mopao1000/1000BMopao1000/1000B is a single-disc, fully automatic metallographic grinding and polishing machine with a 250 mm disc. The disc runs stepless from 50 to 600 rpm (or 150 / 300 rpm) while the head rotates at 50 to 100 rpm.
Specifications
| Type | Single disc, fully automatic |
|---|---|
| Disc rotating speed | 50 - 600 rpm stepless, or 150 / 300 rpm |
| Grinding / polishing head rotating speed | 50 - 100 rpm |
| Max. sample diameter | 30 / 40 / 50 mm |
| Grinding / polishing disc diameter | 250 mm |
| Power supply | 3-phase 220 V / 50 Hz |
Supplied with
- Mopao1000/1000B grinding and polishing machine
- Grinding / polishing head and disc
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Abrasive papers, polishing cloths and suspensions
- Sample holders for 30 / 40 / 50 mm specimens
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
