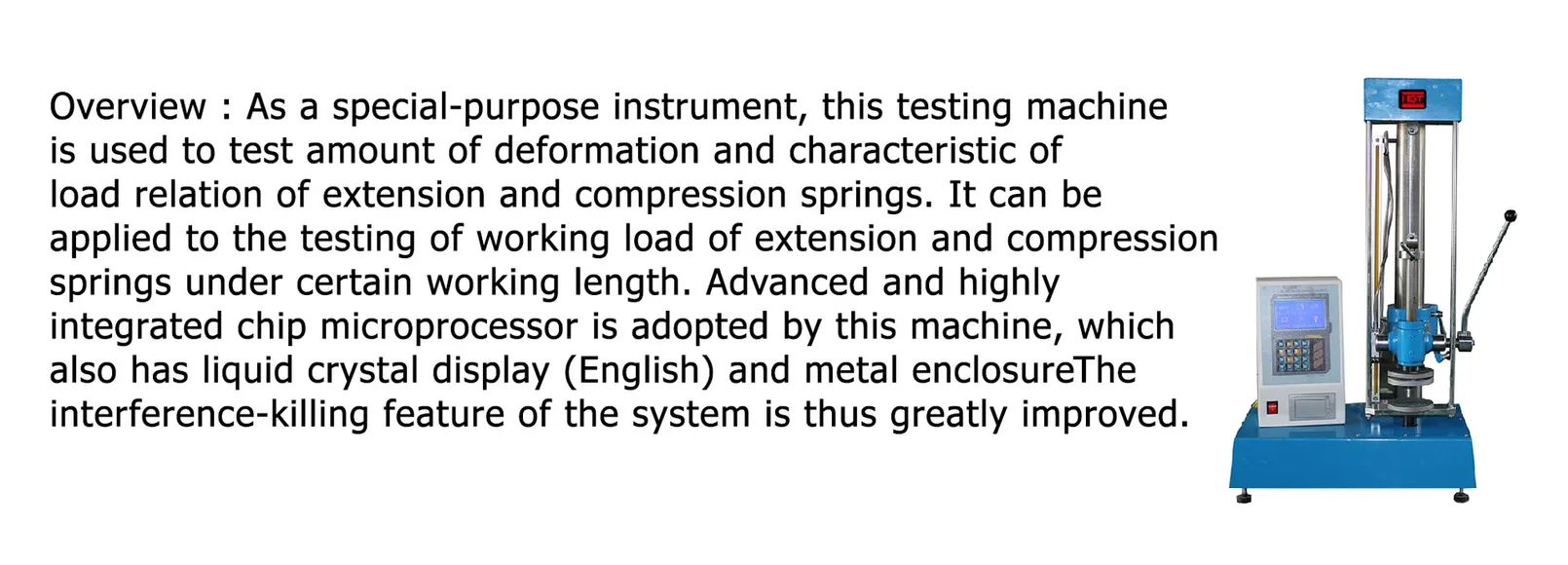

Manual Spring Extension and Compression Tester
10-5000 NThis manual spring tester measures deformation and the load characteristics of extension and compression springs, including the working load at a set working length. A highly integrated chip microprocessor with an English LCD and a metal enclosure gives strong interference resistance. Models cover maximum loads from 10 N to 5000 N.
Specifications
| Maximum testing load (N) | 10, 20, 30, 50, 100, 150, 200, 300, 500, 1000, 2000, 3000, 5000 |
|---|---|
| Minimum resolution | 0.001 N (10-50 N models); 0.01 N (100-500 N models); 0.1 N (1000-5000 N models) |
| Division value of displacement scale | 0.01 mm |
| Indication error | ±1 % |
| Power supply | AC 110-220 V, 50-60 Hz |
| Power consumption | 13 W without printer; 20 W with printer |
| Working temperature | 20 ±10 °C |
| Storage and transportation temperature | -27 to +70 °C |
| Relative humidity | 15-80 % RH |
Supplied with
- Manual spring tester with load cell and LCD controller
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Compression plates and extension hooks
- Micro printer
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
