Cutting Machine

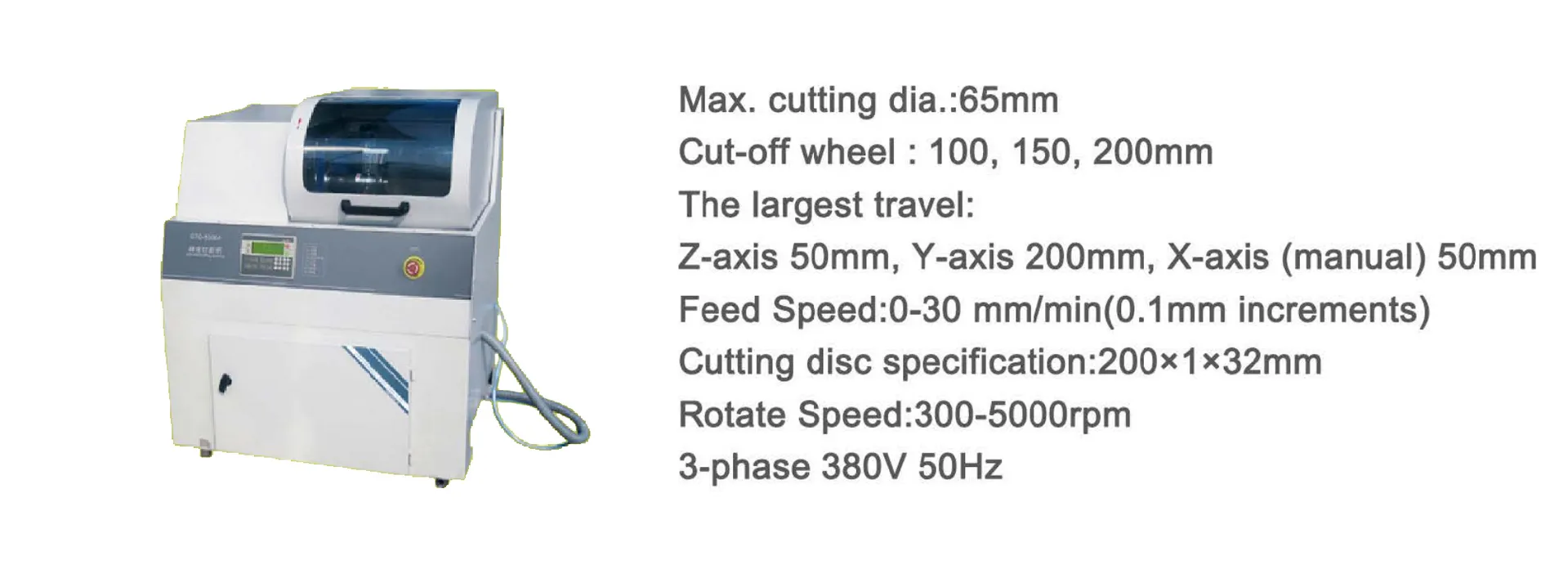

GTQ-5000AGTQ-5000A is a precision metallographic cutting machine with a 200 mm cut-off disc, 0.1 mm feed increments and a speed range of 300 to 5000 rpm. It cuts specimens up to 65 mm in diameter.
Specifications
| Max. cutting diameter | 65 mm |
|---|---|
| Cut-off wheel diameter | 100 / 150 / 200 mm |
| Cutting disc specification | 200 x 1 x 32 mm |
| Max. travel | Z 50 mm, Y 200 mm, X (manual) 50 mm |
| Feed speed | 0 - 30 mm/min (0.1 mm increments) |
| Rotating speed | 300 - 5000 rpm |
| Power supply | 3-phase 380 V / 50 Hz |
Supplied with
- GTQ-5000A cutting machine
- Cut-off disc and cooling system
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Spare cut-off discs (200 x 1 x 32 mm)
- Specimen clamps and fixtures on request

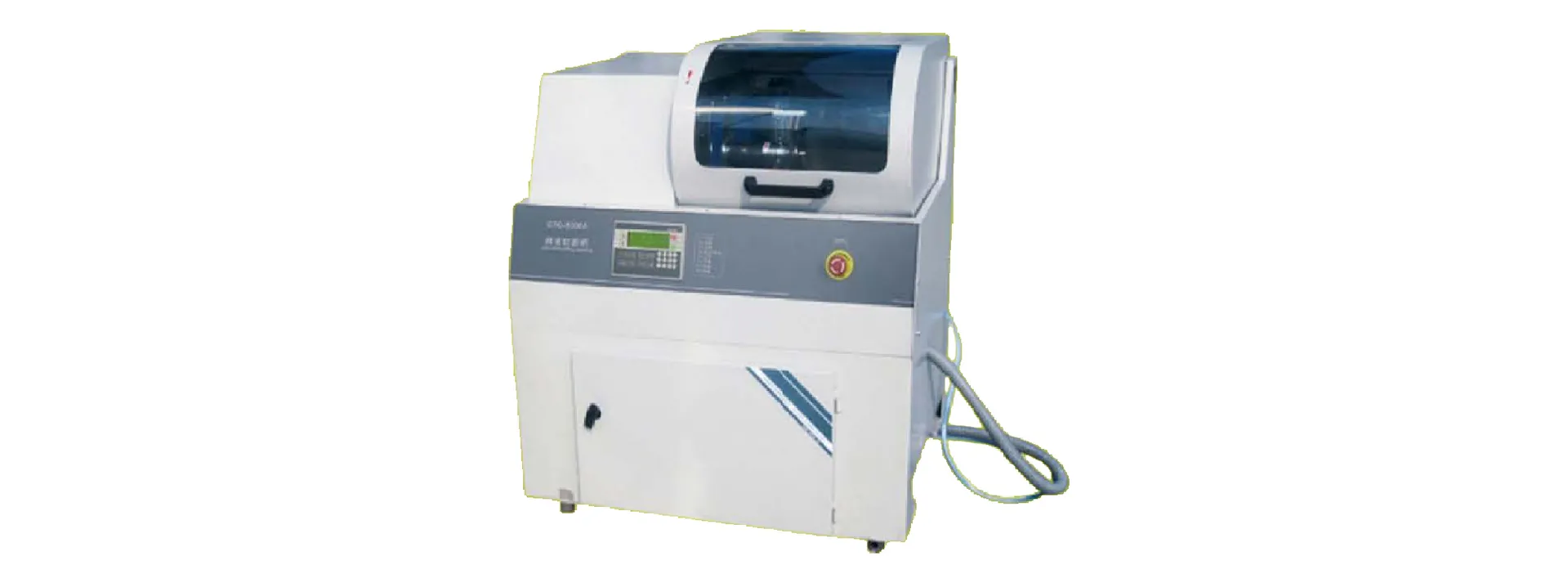

More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
