Inverted Metallurgical Microscope

4XC

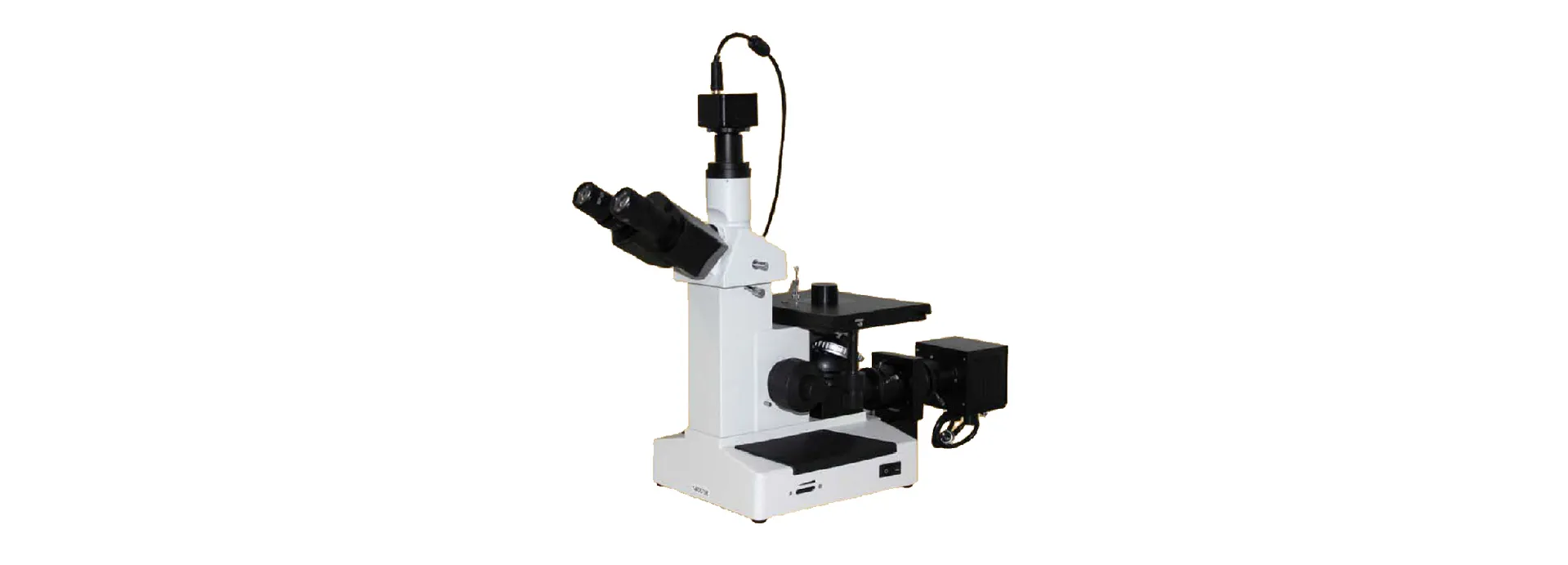

4XC is a trinocular inverted metallurgical microscope with flat-field achromatic objectives, giving 100X to 1000X total magnification. Its 30° tilted three-eyepiece tube has an adjustable pupil range of 55-75 mm.

Request a quotationLINE: bps instrument
Microscope 4XC Metallurgical

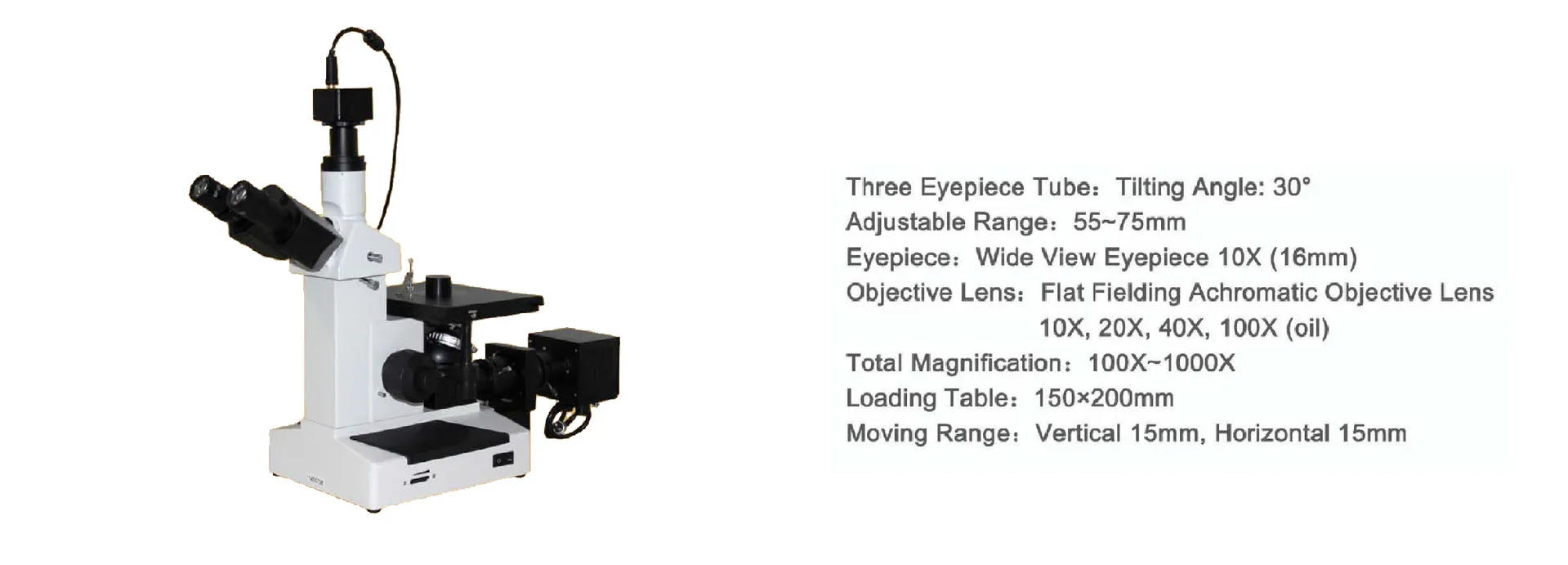

Specifications

TubeThree-eyepiece (trinocular), tilting angle 30°
Adjustable range55-75 mm
EyepieceWide-view eyepiece 10X (16 mm)
Objective lensFlat-field achromatic objectives 10X, 20X, 40X, 100X (oil)
Total magnification100X-1000X
Loading table150 × 200 mm
Moving rangeVertical 15 mm, horizontal 15 mm

Supplied with

  • 4XC microscope with standard eyepiece and objectives
  • Typical configuration only; BPS confirms the exact supply list in the quotation

Options and accessories

  • Camera adapter and analysis software
  • Additional eyepieces

More views

Microscope 4XC Metallurgical

Need help choosing?

Tell us your sample, standard and budget. BPS will recommend the right model and quote it.

Contact sales

Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
