Dual-Station Automatic Mounting Press

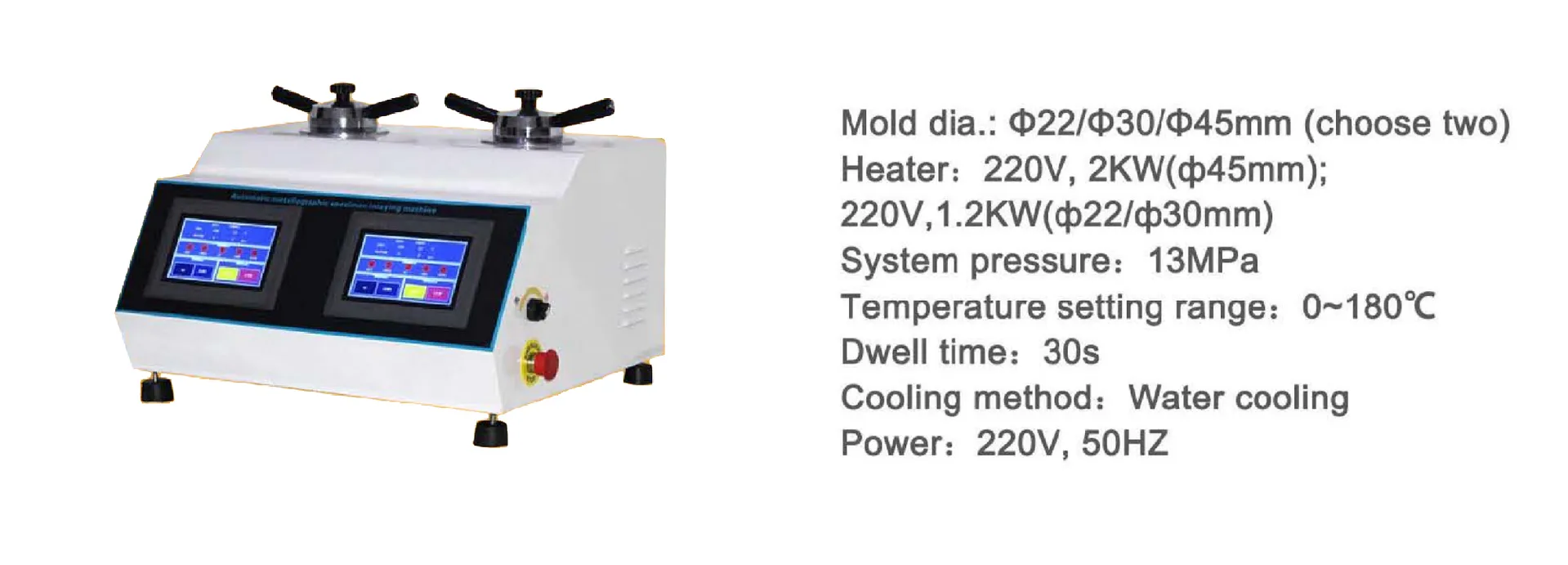

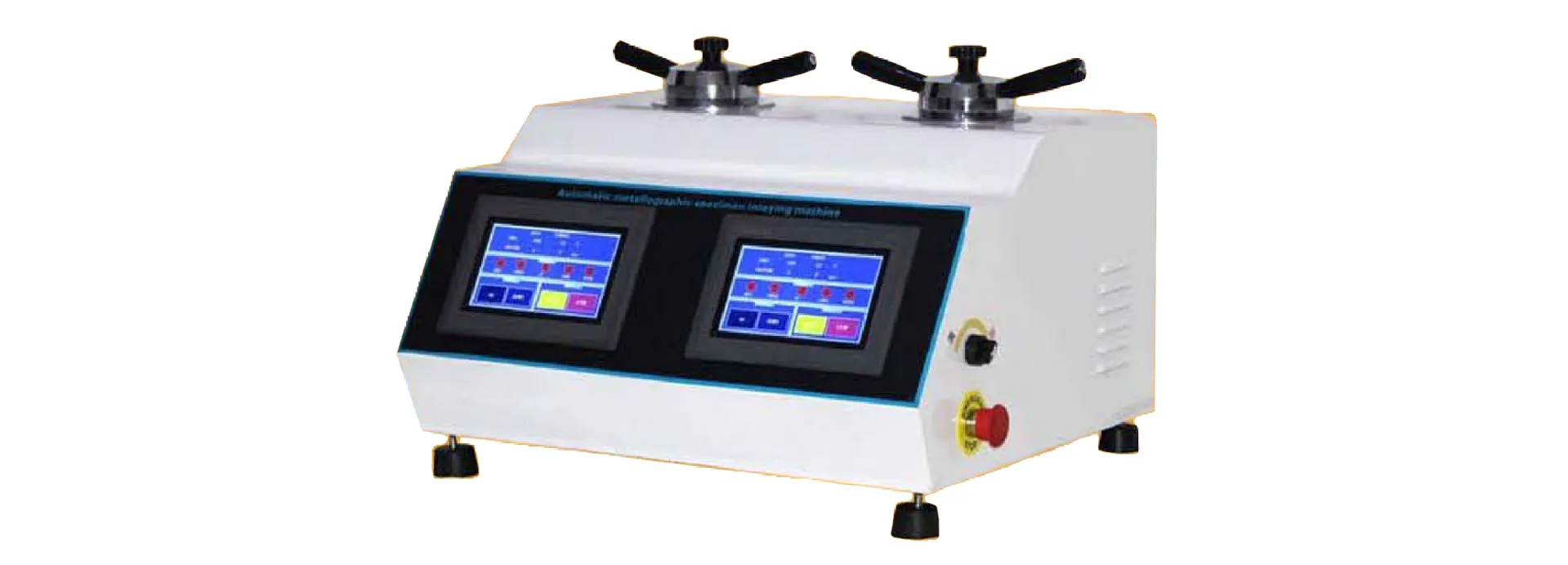

ZXQ-5SZXQ-5S is a dual-station automatic hot mounting press with two touch-screen control panels, each running its own mold. It works at 13 MPa system pressure, heats from 0 to 180 °C and uses water cooling.
Specifications
| Mold diameter | Φ22 / Φ30 / Φ45 mm (choose two) |
|---|---|
| Heater | 220 V, 2 kW (φ45 mm); 220 V, 1.2 kW (φ22 / φ30 mm) |
| System pressure | 13 MPa |
| Temperature setting range | 0-180 °C |
| Dwell time | 30 s |
| Cooling method | Water cooling |
| Power | 220 V, 50 Hz |
Supplied with
- ZXQ-5S mounting press
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Mold sets (22 / 30 / 45 mm)
- Mounting resin powder
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
