Drop Weight Impact Testing Machine

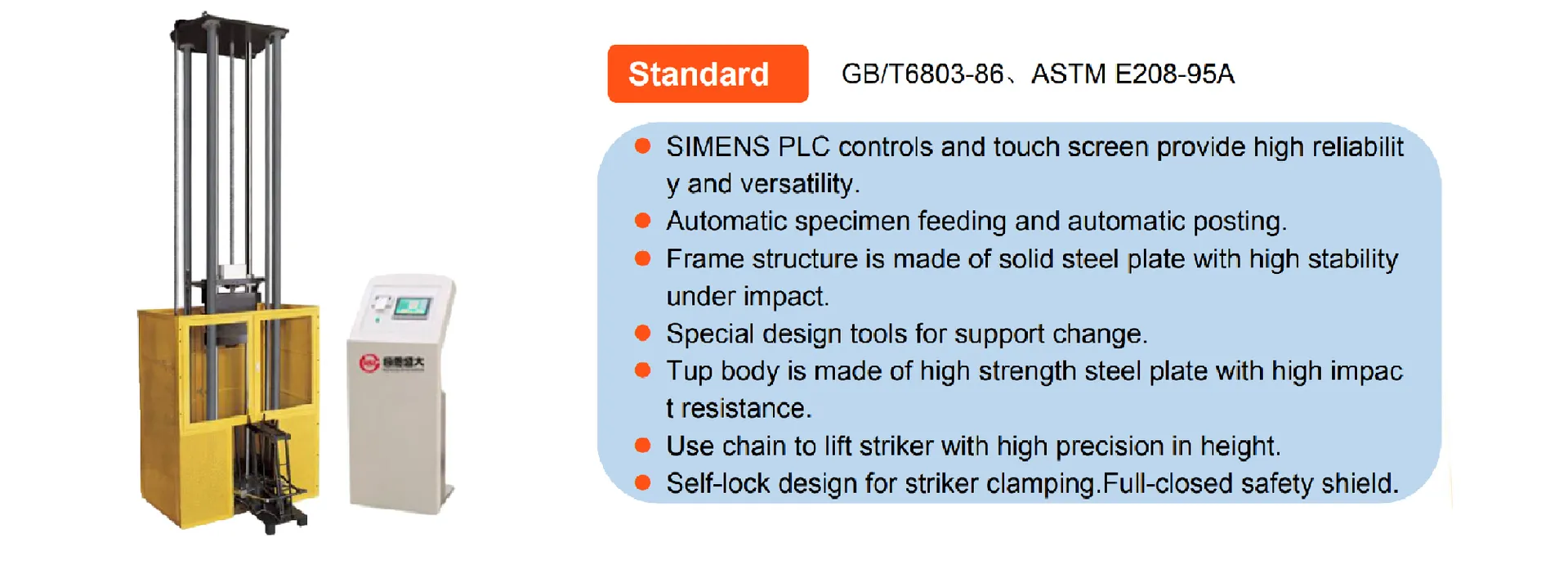

NDT 2000-6000 JThe NDT series are drop weight impact testing machines of 2000 to 6000 J for pipeline and plate materials, built to GB/T 6803-88 and ASTM E208-95A. A Siemens PLC with touch screen controls the test, with automatic specimen feeding and positioning, a chain-lifted striker with self-locking clamp, and a fully closed safety shield.
Specifications
| Models | NDT-2000, NDT-3000, NDT-4000, NDT-6000 |
|---|---|
| Maximum energy | 2000 / 3000 / 4000 / 6000 J |
| Minimum energy | 300 / 300 / 500 / 750 J |
| Maximum tup mass | 60 / 90 / 120 / 204 kg |
| Tup mass accuracy | ±1 % |
| Drop height | 750-3400 mm (NDT-2000, NDT-3000); 750-3000 mm (NDT-4000, NDT-6000) |
| Velocity of drop | 3.8-7.6 m/s |
| Hammer lifting speed | 3 m/min |
| Height resolution | 0.1 |
| Height accuracy | ≤ ±10 mm |
| Hardness of tup nose | HRC 58-62 |
| Radius of tup nose | R25.4 ±2.5 mm |
| Sample centered error | ±1 mm |
| Support anvil span | P-1, P-2, P-3 |
| Specimen dimension | P-1: (360±1) × (90±2) × (25±2.5); P-2: (130±1) × (50±1) × (20±1); P-3: (130±1) × (50±1) × (16±0.5) mm |
| Power supply | 380 V ±10 %, 50/60 Hz |
Supplied with
- NDT drop weight tester with PLC and touch screen
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Support anvils P-1, P-2, P-3
- Specimen cooling chamber

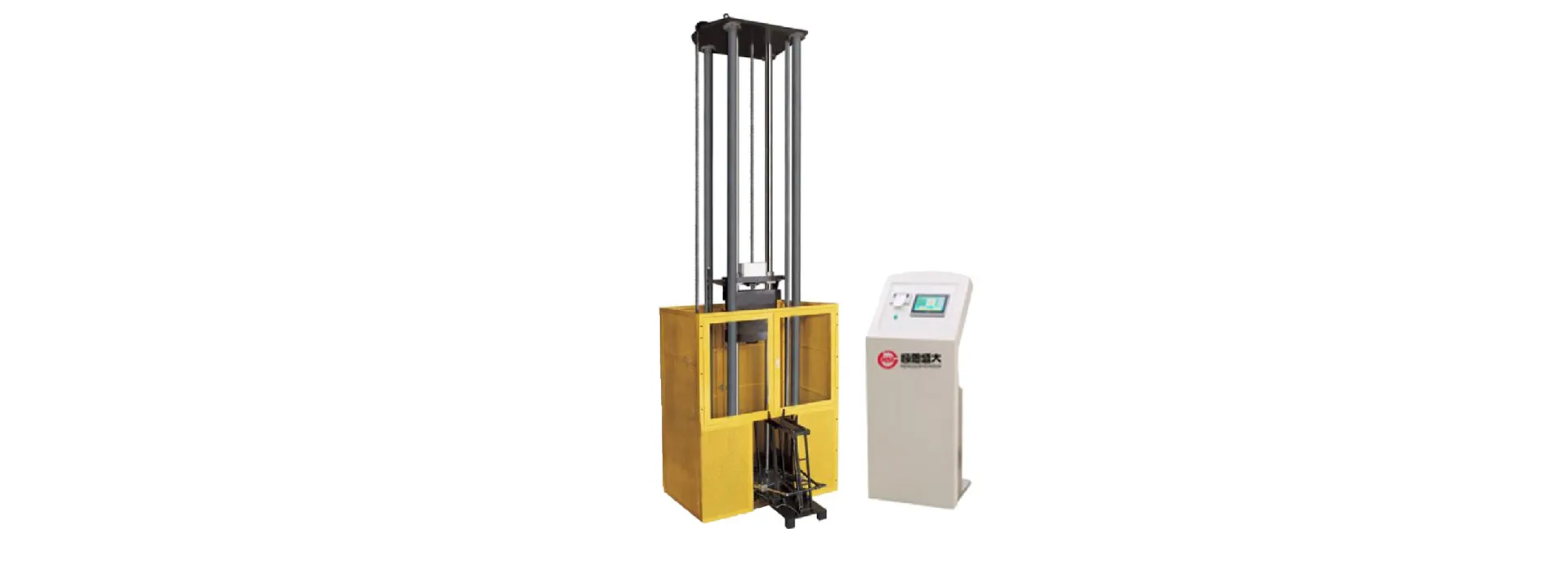

More views
