Spring Fatigue Testing Machine

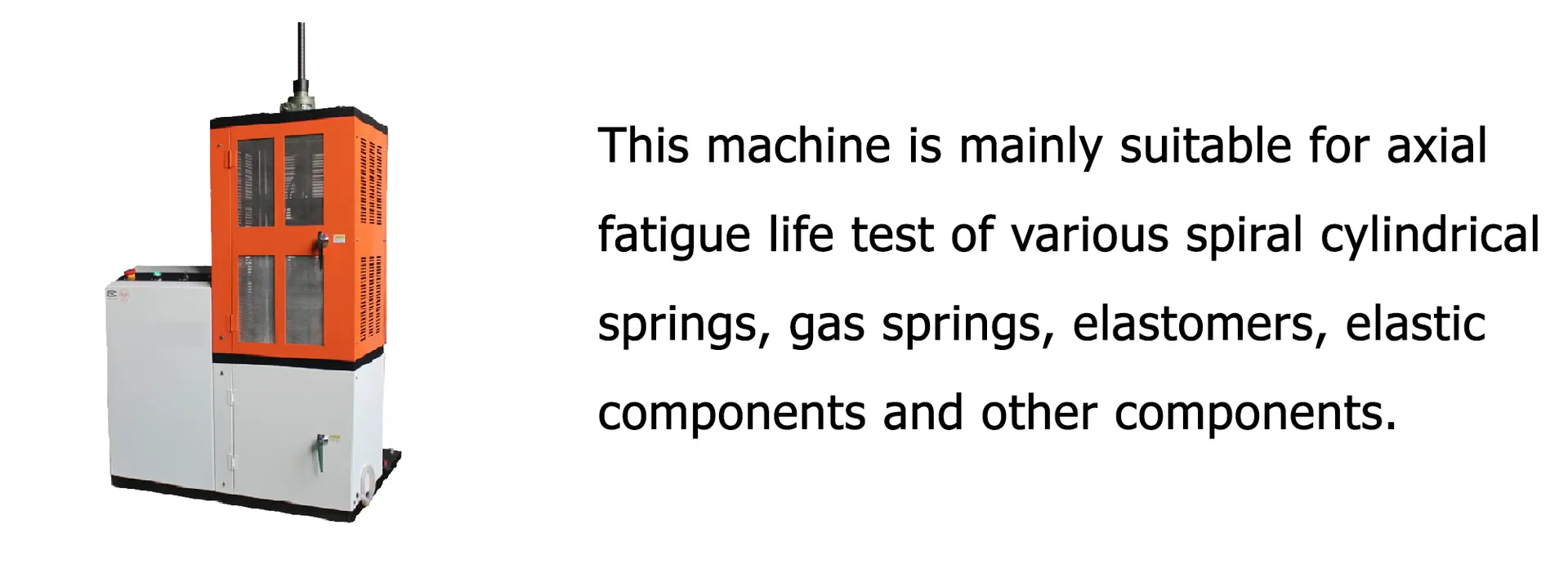

HFST 3-10 kNThe HFST 3-10 kN series is a spring fatigue testing machine for axial fatigue life tests of spiral cylindrical springs, gas springs, elastomers, elastic components and similar parts. It offers maximum loads of 3, 5 and 10 kN, tests at 0-5 Hz (up to 300 times/minute) and has a 300 mm vertical space.

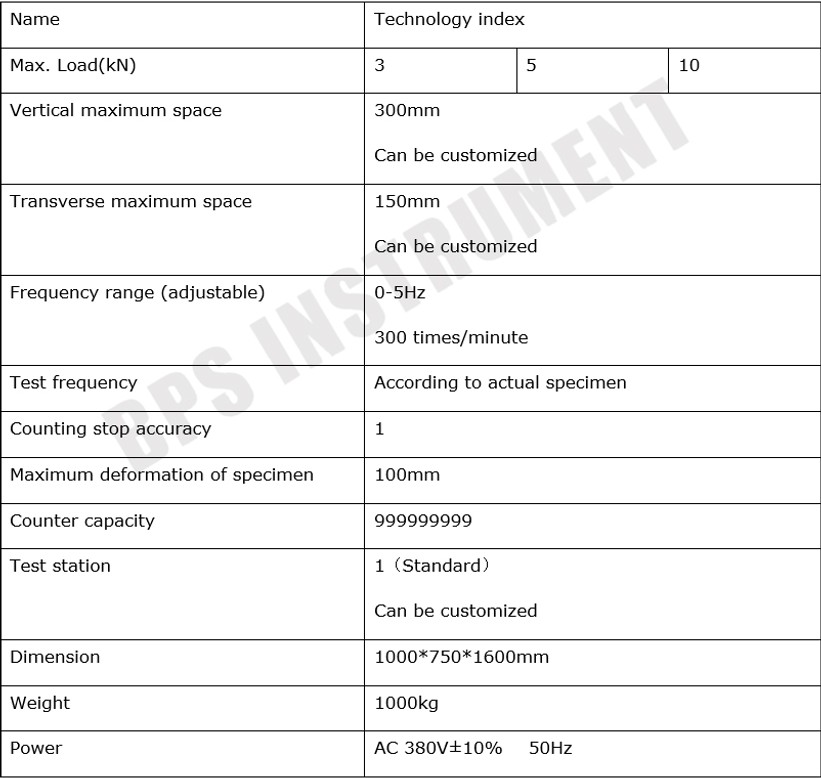

Specifications
| Max. load | 3 / 5 / 10 kN |
|---|---|
| Vertical maximum space | 300 mm, can be customized |
| Transverse maximum space | 150 mm, can be customized |
| Frequency range (adjustable) | 0-5 Hz, 300 times/minute |
| Test frequency | According to actual specimen |
| Counting stop accuracy | 1 |
| Maximum deformation of specimen | 100 mm |
| Counter capacity | 999,999,999 |
| Test station | 1 (standard), can be customized |
| Dimensions | 1000 × 750 × 1600 mm |
| Weight | 1000 kg |
| Power | AC 380 V ±10 %, 50 Hz |
Supplied with
- HFST spring fatigue tester with controller and computer
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Customized test stations and spaces

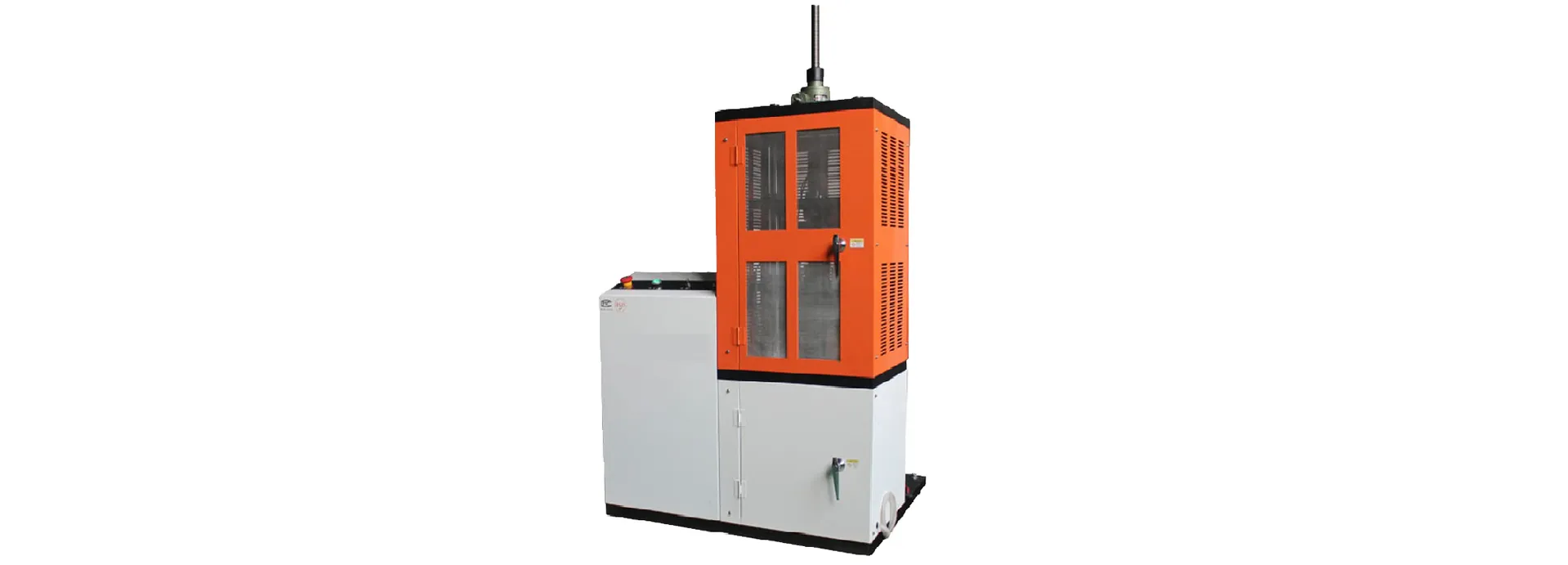

More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
