Microscope PW Series

Metallurgical Microscope (Trinocular)

PW-BDS500MT

Trinocular metallurgical microscope with infinity plan achromatic objectives (4X to 40X standard) and Kohler 6 V / 30 W halogen illumination.

Request a quotationLINE: bpsinstrument

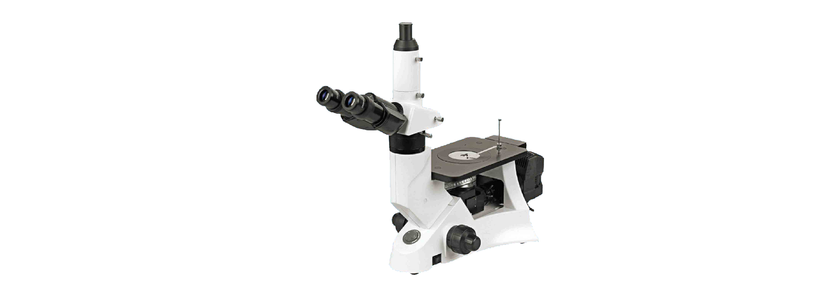

Metallurgical microscope PW-BDS500MT

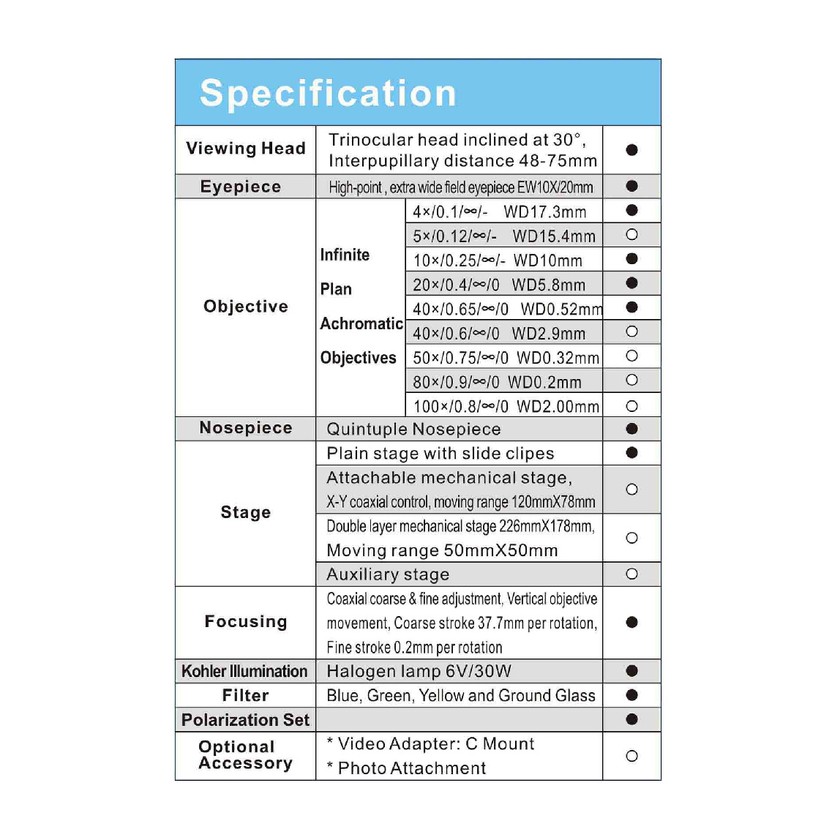

Specifications

Viewing headTrinocular, 30° inclined
Interpupillary distance48 to 75 mm
EyepieceEW10X/20
Objectives (standard, infinity plan achromatic)4X/0.1 WD 17.3 mm; 10X/0.25 WD 10 mm; 20X/0.4 WD 5.8 mm; 40X/0.65 WD 0.52 mm
NosepieceQuintuple
StagePlain stage (standard)
FocusingCoaxial; coarse 37.7 mm per revolution, fine 0.2 mm per revolution
IlluminationKohler, 6 V / 30 W halogen
FiltersBlue, green, yellow, ground glass
PolarizationPolarization set

Options and accessories

  • Objectives 5X/0.12, 40X/0.6, 50X/0.75, 80X/0.9 and 100X/0.8
  • Mechanical stage 120 x 78 mm
  • Double-layer stage 226 x 178 mm, moving 50 x 50 mm
  • Auxiliary stage
  • C-mount video adapter
  • Photo attachment
