Horizontal Tensile Testing Machine

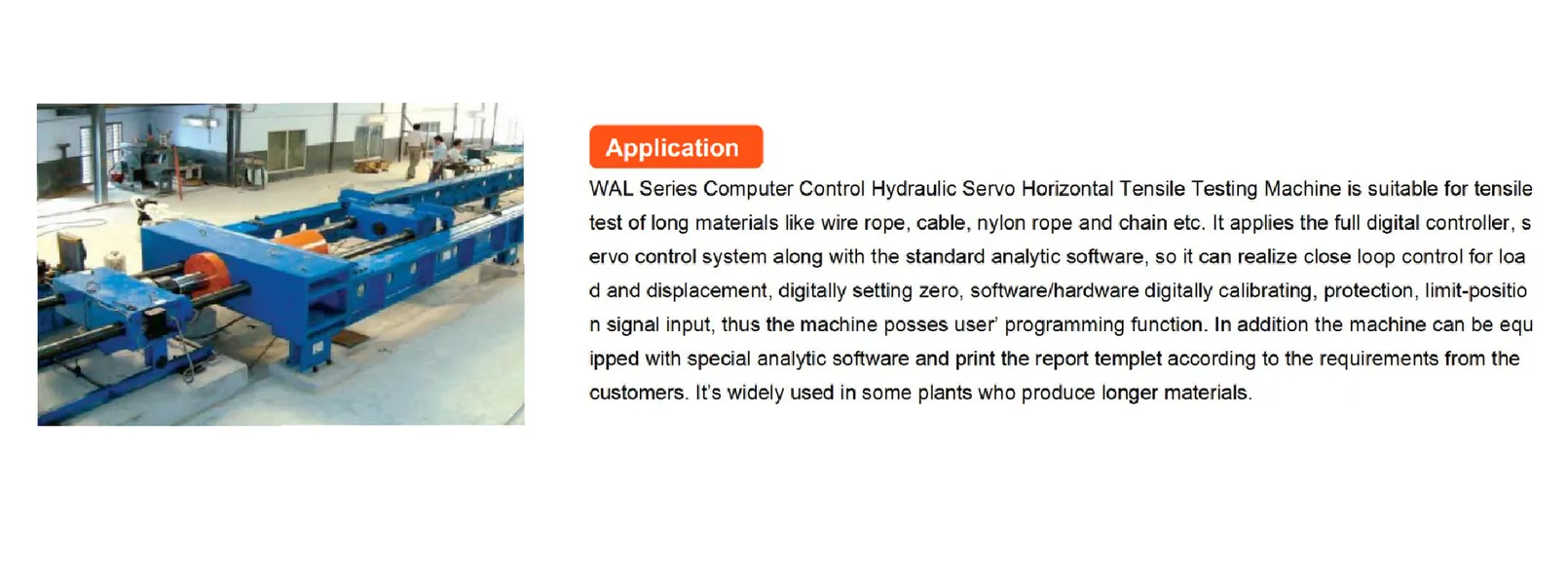

WAL SeriesThe WAL series are computer-controlled hydraulic servo horizontal tensile testing machines for long materials such as wire rope, cable, nylon rope and chain. A full digital controller and servo control system with standard analysis software provide closed-loop control of load and displacement, digital zero setting, digital calibration, and limit protection, and test reports can be printed on a template set to customer requirements.
Specifications
| Models | WAL-500, WAL-1000, WAL-2000, WAL-5000, WAL-10000, WAL-15000 |
|---|---|
| Max. testing load | 500 / 1000 / 1000 (as listed in the source table; model name suggests 2000) / 5000 / 10000 / 15000 kN |
| Amplifying multiple | 1, 2, 5 (three steps) |
| Accuracy of specimen elongation | 1 % FS |
| Test load accuracy | Better than 1 % of indicating value |
| Resolution of crosshead displacement | 0.02 mm |
| Tensile testing space (mm) | WAL-500: 500 / 1000 / 2000; WAL-1000: 500 / 1000 / 3000; WAL-2000: 500 / 1000 / 3000; WAL-5000: 500 / 1000 / 3000; WAL-10000: 1000 / 3000 / 5000; WAL-15000: 2000 / 5000 / 8000 |
| Ram stroke (mm) | WAL-500 to WAL-5000: 300 / 500 / 1000; WAL-10000 and WAL-15000: 500 / 800 / 1000 |
Supplied with
- WAL horizontal tensile testing machine with hydraulic power unit and digital controller
- Analysis software with report printing
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories

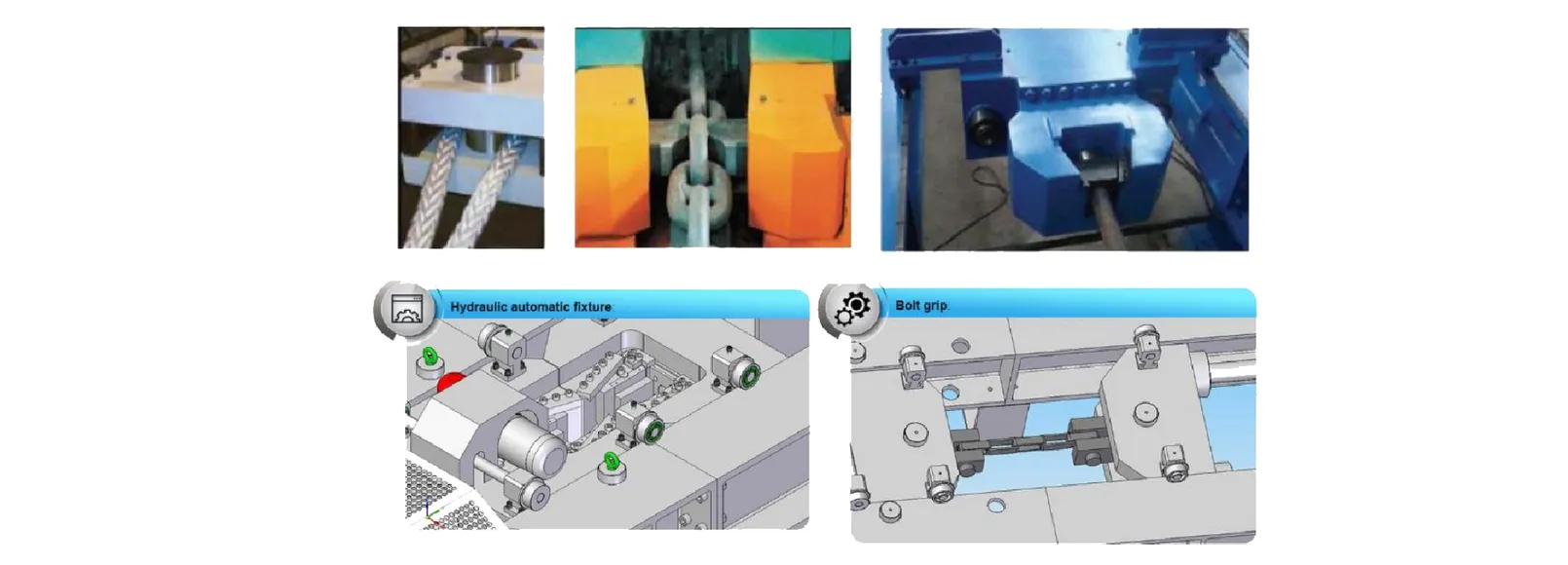

- Grips and fixtures for rope, cable and chain
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
