Spring Fatigue Testing Machine

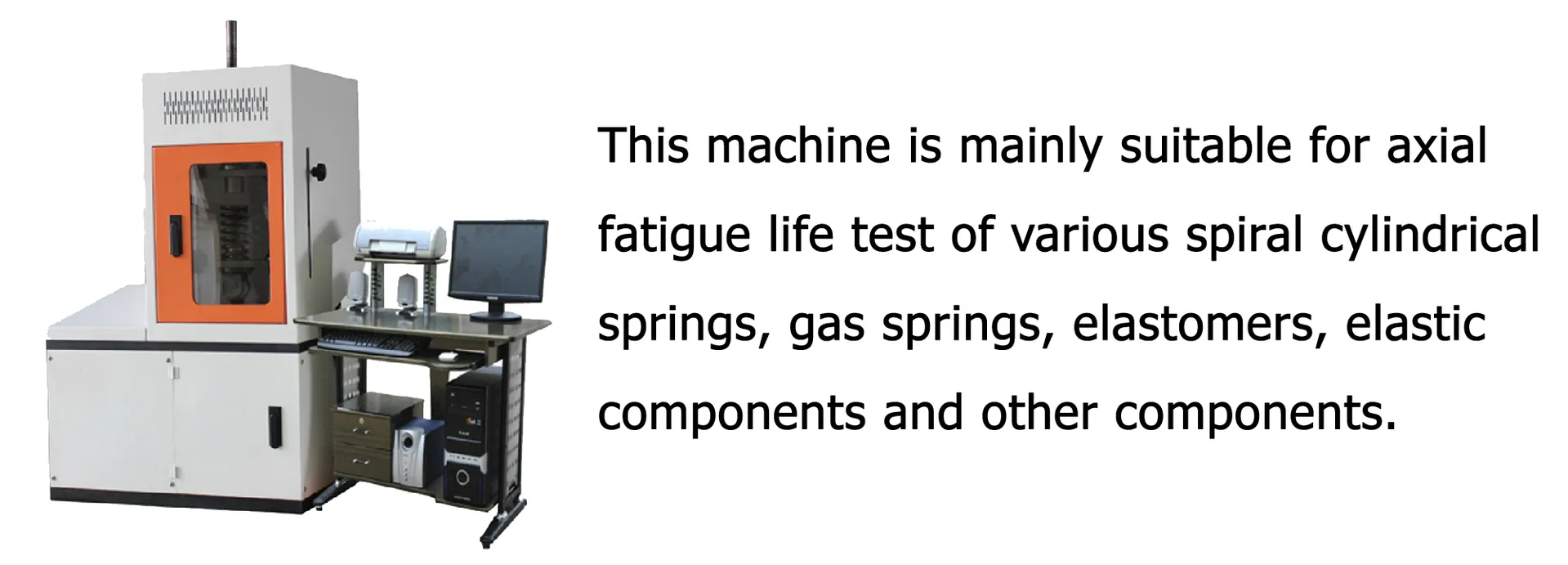

HFST 1-3 kNThe HFST 1-3 kN series is a spring fatigue testing machine for axial fatigue life tests of spiral cylindrical springs, gas springs, elastomers, elastic components and similar parts. It tests at 0-5 Hz (up to 300 times/minute) with a 50 mm amplitude, and offers a single test station as standard or multiple springs as an option.

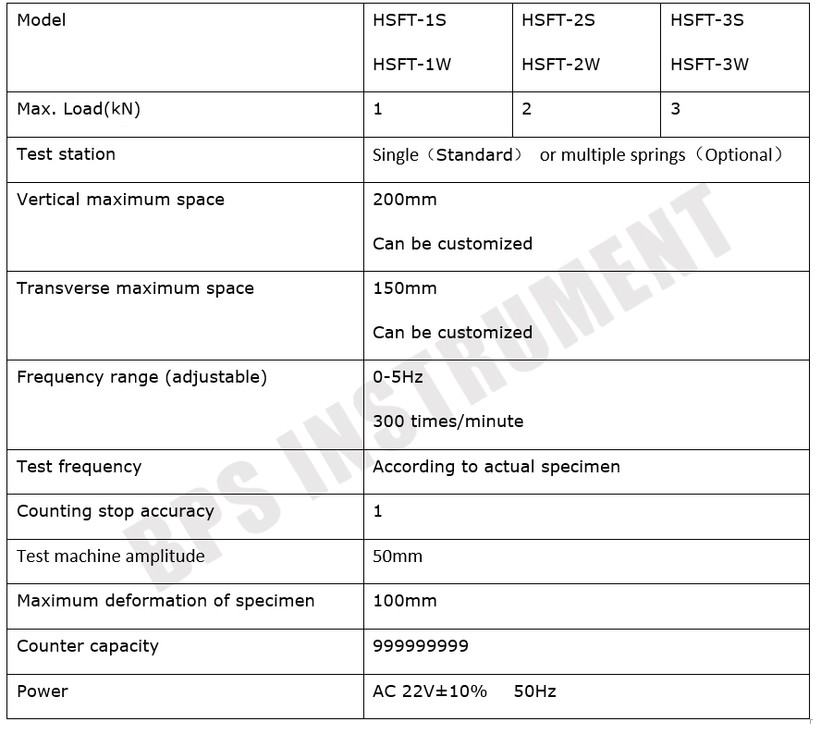

Specifications
| Models | HSFT-1S / HSFT-1W, HSFT-2S / HSFT-2W, HSFT-3S / HSFT-3W |
|---|---|
| Max. load | 1 / 2 / 3 kN |
| Test station | Single (standard) or multiple springs (optional) |
| Vertical maximum space | 200 mm, can be customized |
| Transverse maximum space | 150 mm, can be customized |
| Frequency range (adjustable) | 0-5 Hz, 300 times/minute |
| Test frequency | According to actual specimen |
| Counting stop accuracy | 1 |
| Test machine amplitude | 50 mm |
| Maximum deformation of specimen | 100 mm |
| Counter capacity | 999,999,999 |
| Power | AC 220 V ±10 %, 50 Hz (source table reads "22V"; BPS to confirm) |
Supplied with
- HFST spring fatigue tester with controller and computer
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Multiple-spring test stations
- Customized vertical and transverse space

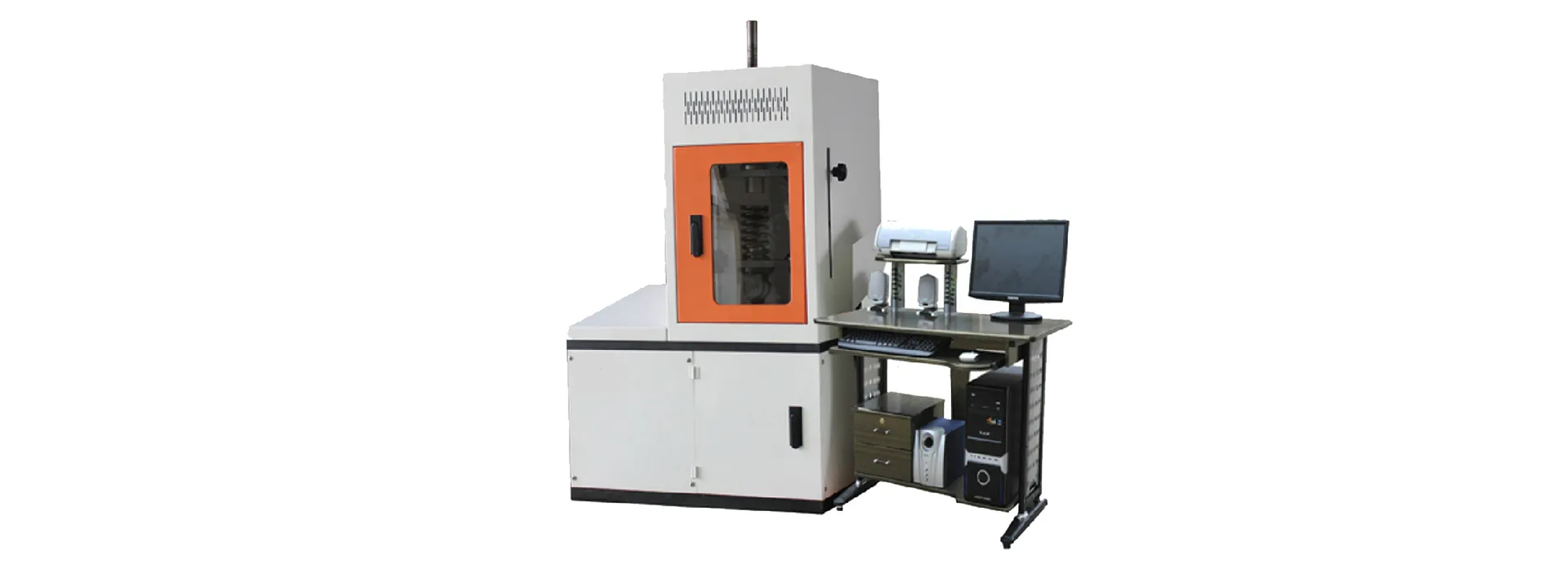

More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
