LOAD CELL

ZLF-C

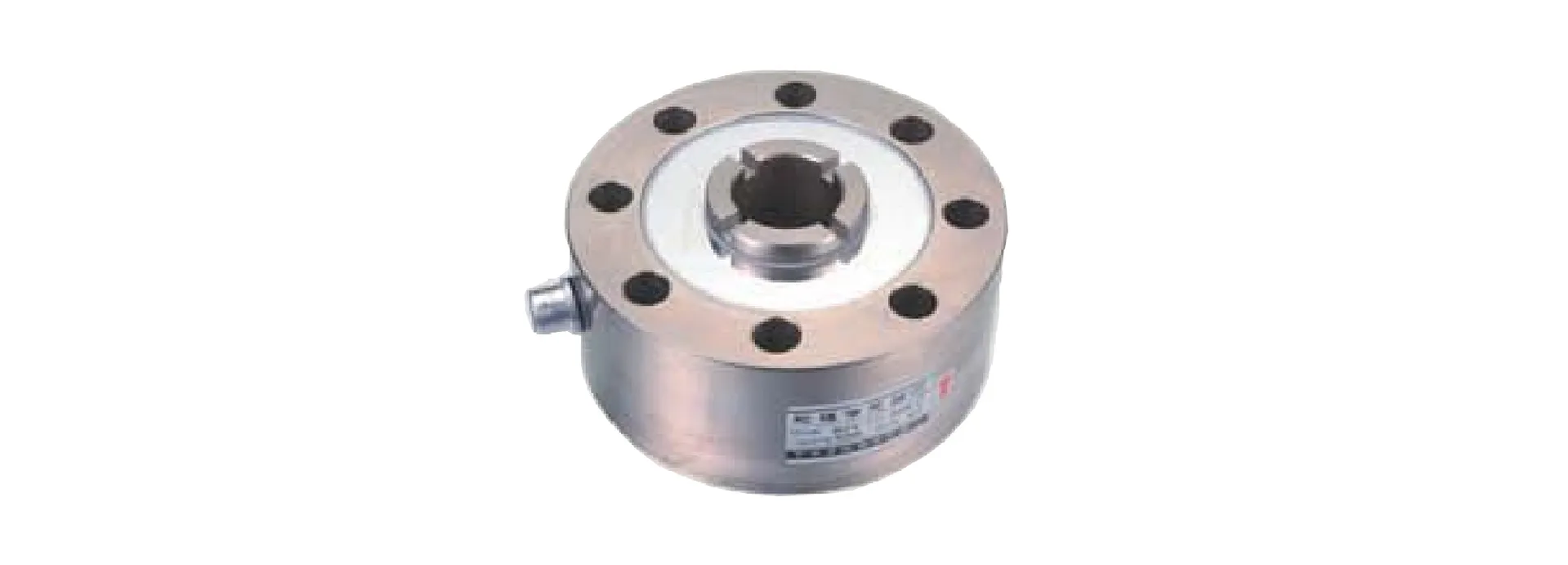

ZLF-C is a low-profile pancake-type load cell for measuring tension and compression force in testing machines and weighing systems. It combines 0.05%FS accuracy with a wide -30 to 70 C working range.

Request a quotationLINE: bps instrument
LOAD CELL ZLF-C

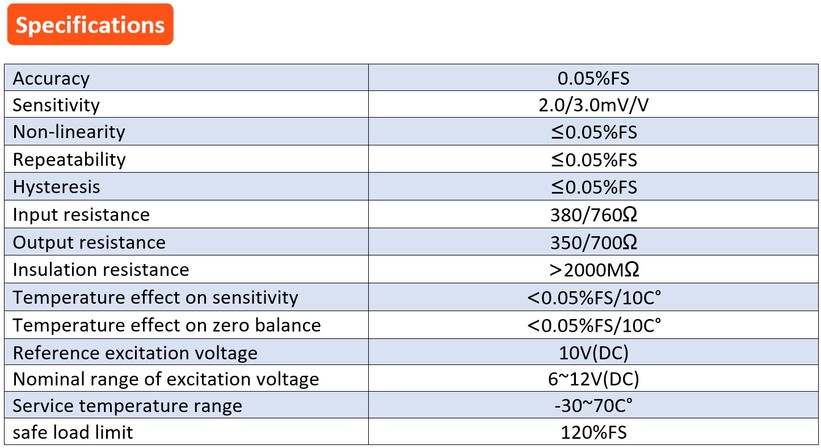

Specifications

Accuracy0.05%FS
Sensitivity2.0 / 3.0 mV/V
Non-linearity≤0.05%FS
Repeatability≤0.05%FS
Hysteresis≤0.05%FS
Input resistance380 / 760 Ω
Output resistance350 / 700 Ω
Insulation resistance>2000 MΩ
Temperature effect on sensitivity<0.05%FS / 10 °C
Temperature effect on zero balance<0.05%FS / 10 °C
Reference excitation voltage10 V (DC)
Nominal excitation voltage range6 ~ 12 V (DC)
Service temperature range-30 ~ 70 °C
Safe load limit120%FS

Supplied with

  • ZLF-C load cell

Options and accessories

  • Digital indicator or signal amplifier
  • Calibration service by BPS (NAC accredited)
  • Mounting and adapter hardware on request

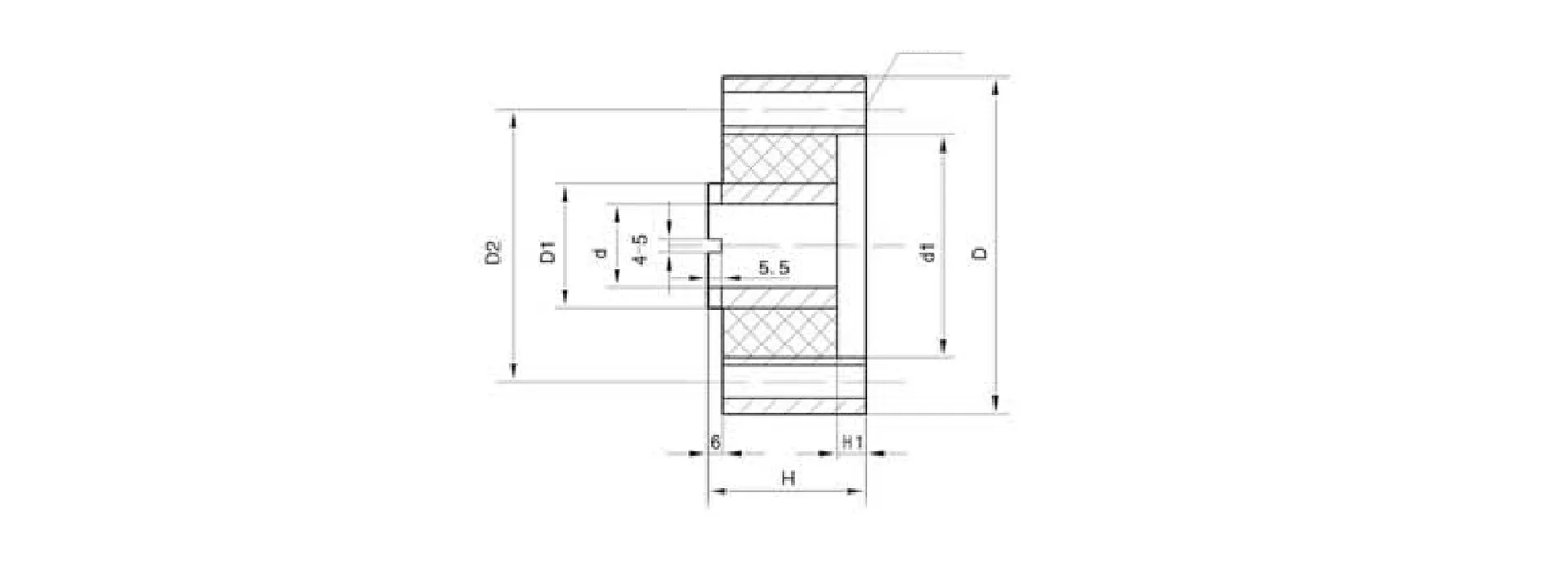

More views

LOAD CELL ZLF-C

Need help choosing?

Tell us your sample, standard and budget. BPS will recommend the right model and quote it.

Contact sales

Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
