Cutting Machine

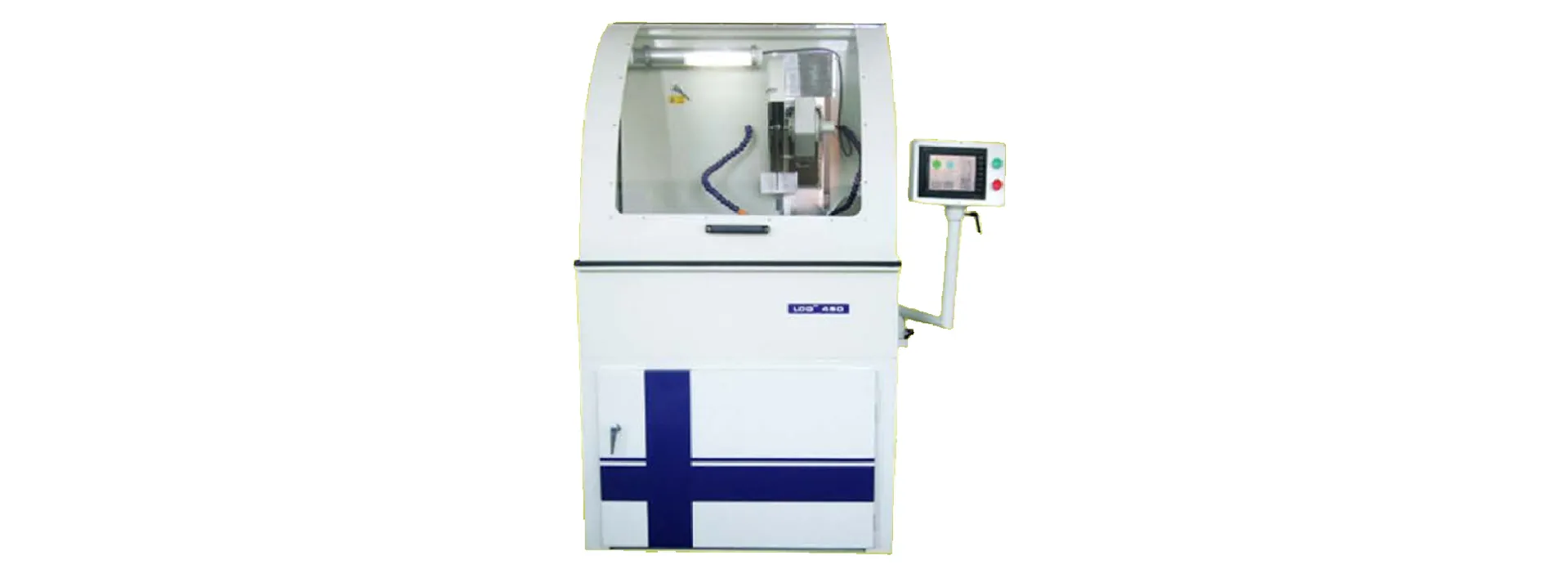

LDQ-450LDQ-450 is a large automatic metallographic cutting machine with a 350 mm cut-off wheel and automatic X, Y and Z axis feed. It cuts sections up to 160 mm in diameter with water cooling and an adjustable cutting speed of 0.005 to 10 mm/s.

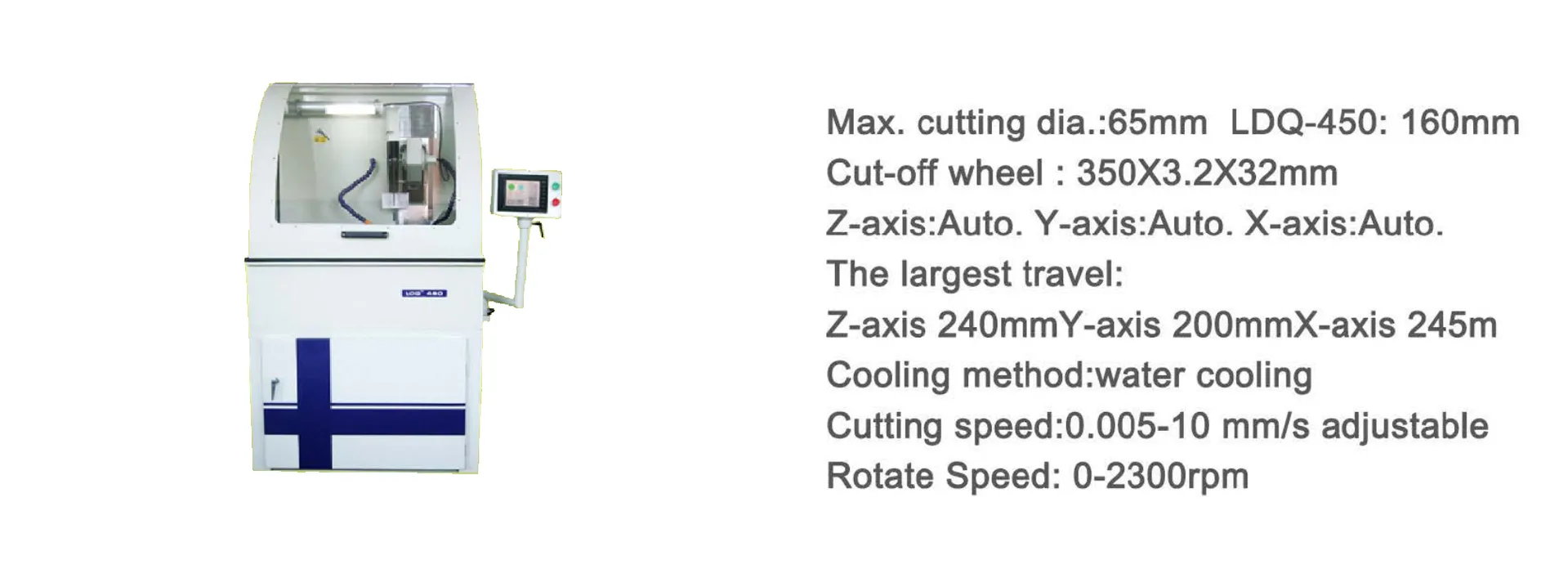

Specifications
| Max. cutting diameter | 160 mm |
|---|---|
| Cut-off wheel | 350 x 3.2 x 32 mm |
| X / Y / Z axis | Automatic |
| Max. travel | X 245 mm, Y 200 mm, Z 240 mm |
| Cooling method | Water cooling |
| Cutting speed | 0.005 - 10 mm/s, adjustable |
| Rotating speed | 0 - 2300 rpm |
Supplied with
- LDQ-450 cutting machine
- Cut-off wheel and water cooling system
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Spare abrasive cut-off wheels (350 x 3.2 x 32 mm)
- Specimen clamps and fixtures on request
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
