TC8 Force Transducer (Pancake Load Cell)

TC8 series

Stainless steel pancake force transducer from Italy for compression and tension, ISO 376 class 0.5 (5-50 kN) or class 1 (100-1000 kN), nominal loads 5 kN to 1000 kN, IP67 with 5 m cable.

Request a quotation LINE: bps instrument

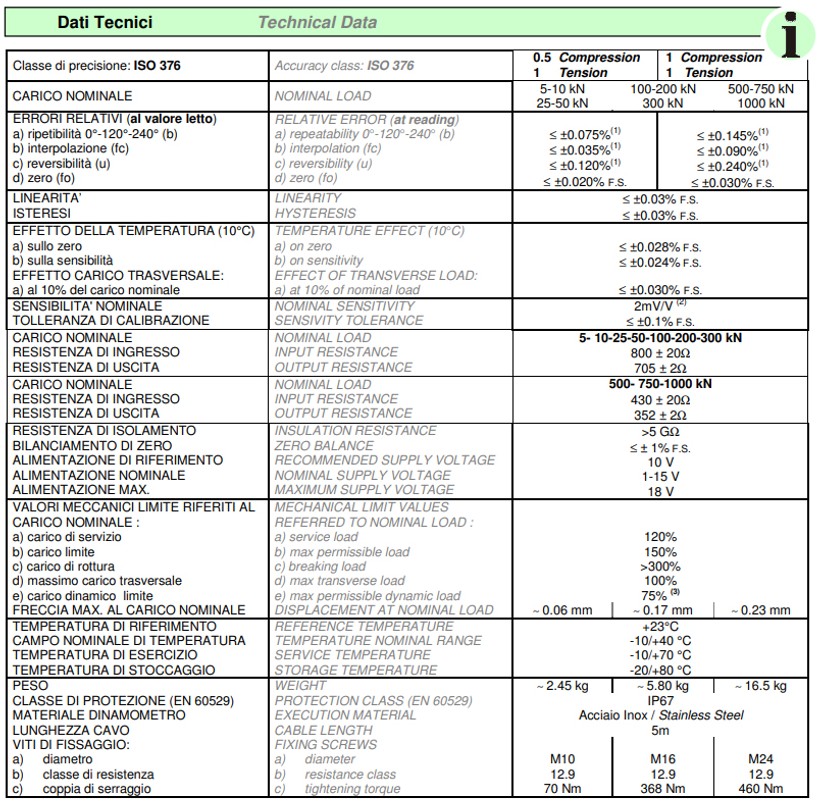

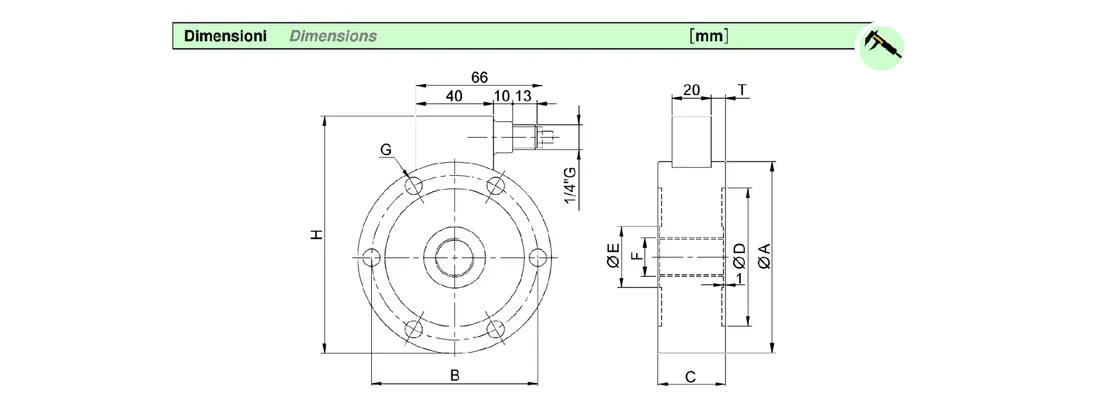

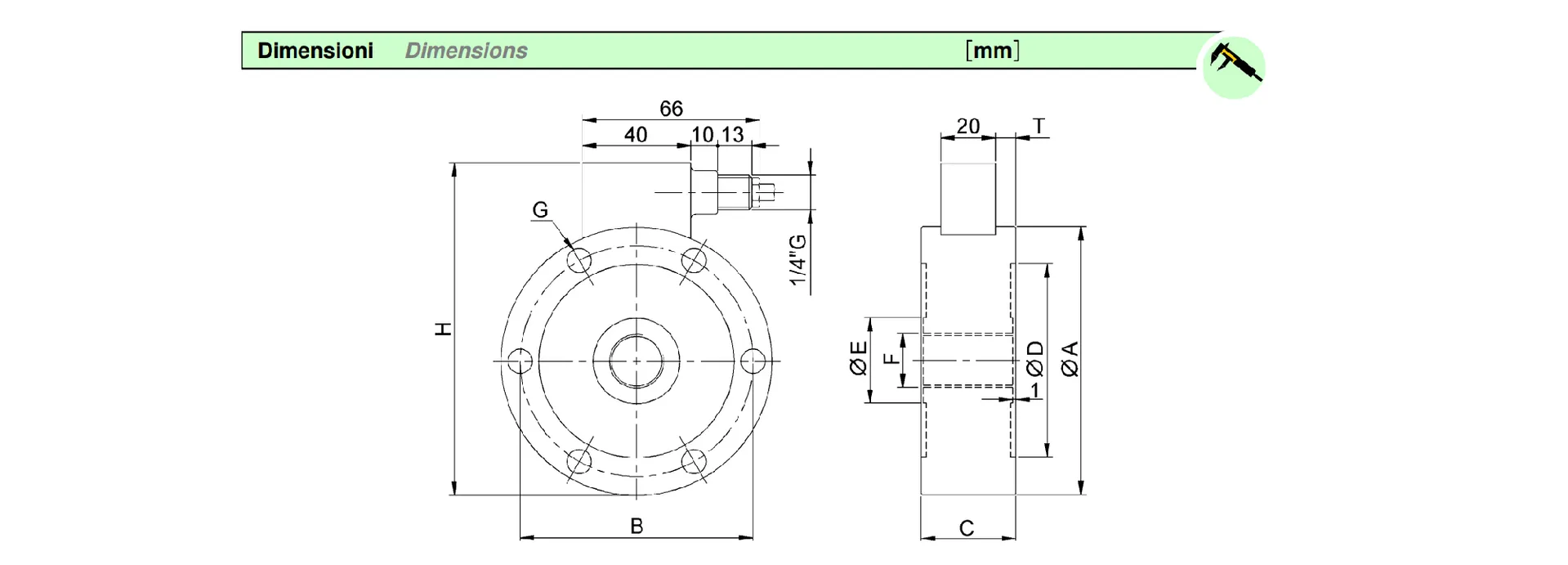

Specifications

Accuracy class	ISO 376: class 0.5 compression / class 1 tension (5-50 kN); class 1 compression and tension (100-1000 kN)

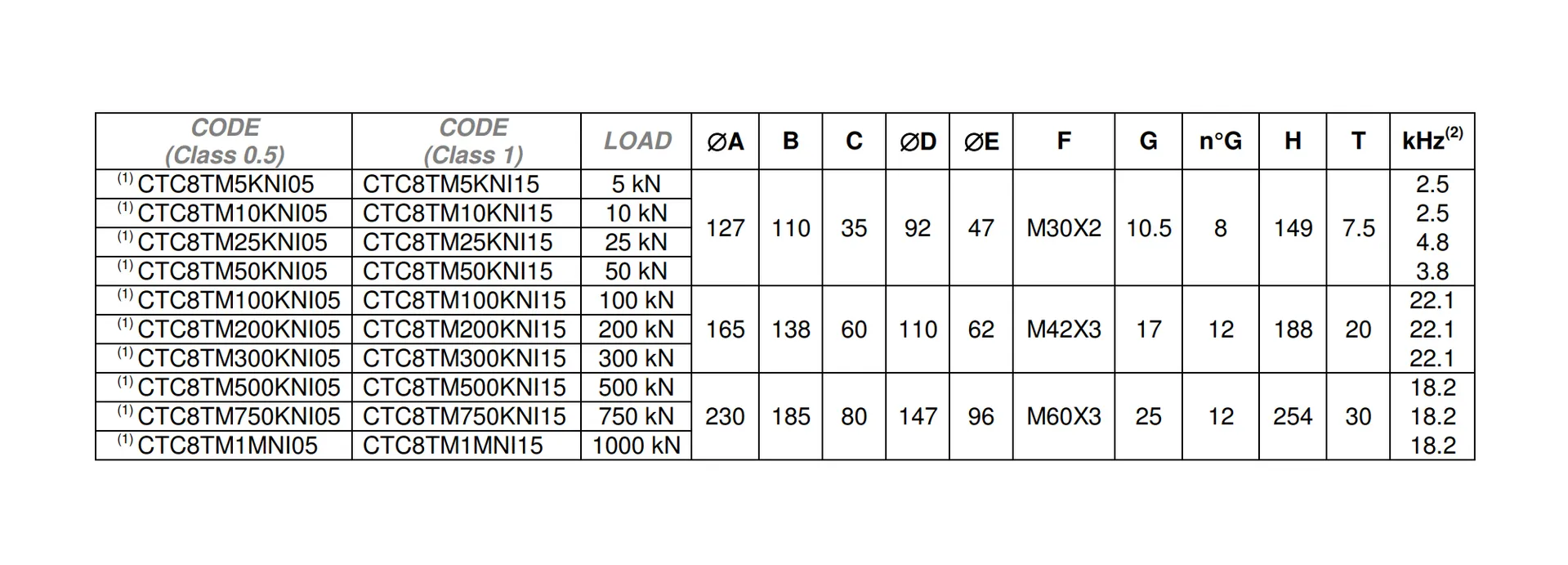

Nominal loads	5-10 kN, 25-50 kN, 100-200 kN, 300 kN, 500-750 kN, 1000 kN
Repeatability (0-120-240 deg)	≤±0.075% (5-50 kN); ≤±0.145% (100-1000 kN)
Interpolation	≤±0.035% (5-50 kN); ≤±0.090% (100-1000 kN)
Reversibility	≤±0.120% (5-50 kN); ≤±0.240% (100-1000 kN)
Zero	≤±0.020% F.S. (5-50 kN); ≤±0.030% F.S. (100-1000 kN)
Linearity / hysteresis	≤±0.03% F.S.
Temperature effect (10 C)	Zero ≤±0.028% F.S.; sensitivity ≤±0.024% F.S.
Transverse load effect (10% of nominal)	≤±0.030% F.S.
Nominal sensitivity	2 mV/V, tolerance ≤±0.1% F.S.
Input / output resistance	5-300 kN: 800 ± 20 Ω / 705 ± 2 Ω; 500-1000 kN: 430 ± 20 Ω / 352 ± 2 Ω
Insulation resistance	>5 GΩ
Zero balance	≤±1% F.S.
Supply voltage	Recommended 10 V; nominal 1-15 V; maximum 18 V
Mechanical limits (of nominal load)	Service 120%; max permissible 150%; breaking >300%; max transverse 100%; max dynamic 75%
Displacement at nominal load	~0.06 mm / ~0.17 mm / ~0.23 mm (three size groups)
Temperature	Reference +23 C; nominal range -10/+40 C; service -10/+70 C; storage -20/+80 C
Weight	~2.45 kg / ~5.80 kg / ~16.5 kg (three size groups)
Protection / material	IP67 (EN 60529); stainless steel
Cable length	5 m
Fixing screws	M10 / M16 / M24, class 12.9; tightening torque 70 / 368 / 460 Nm
