UTEST
Pendulum Impact Tester

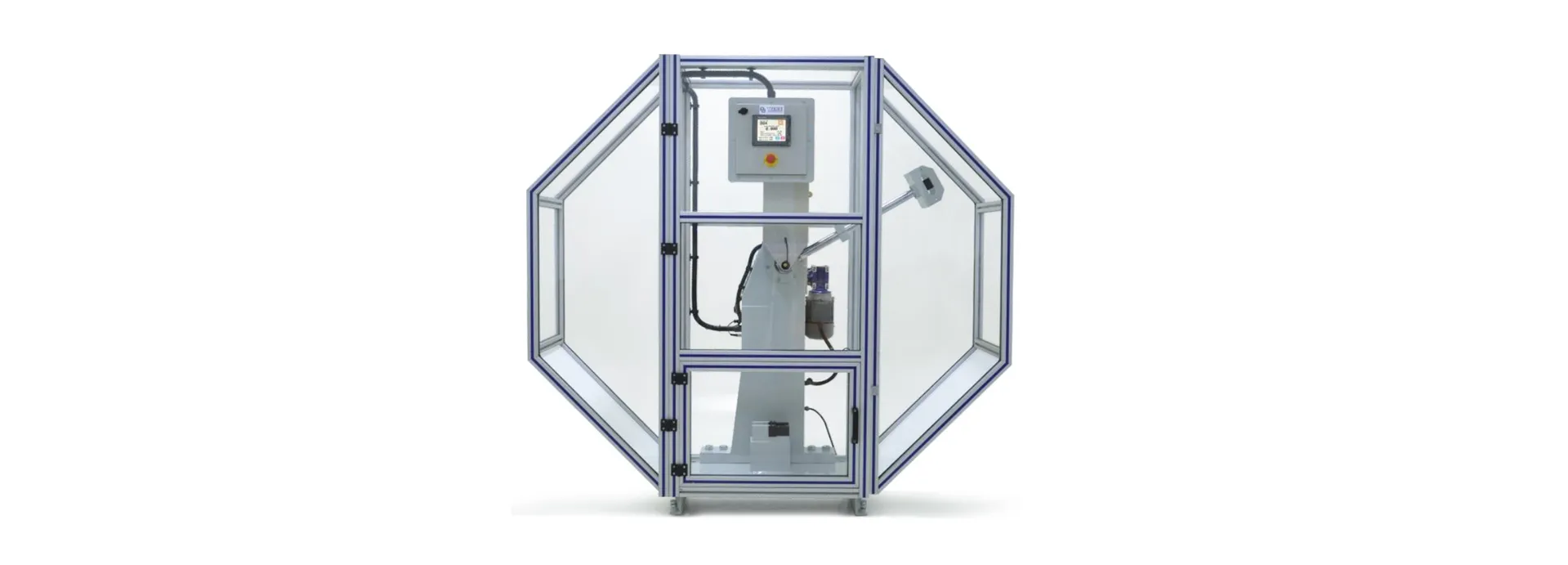

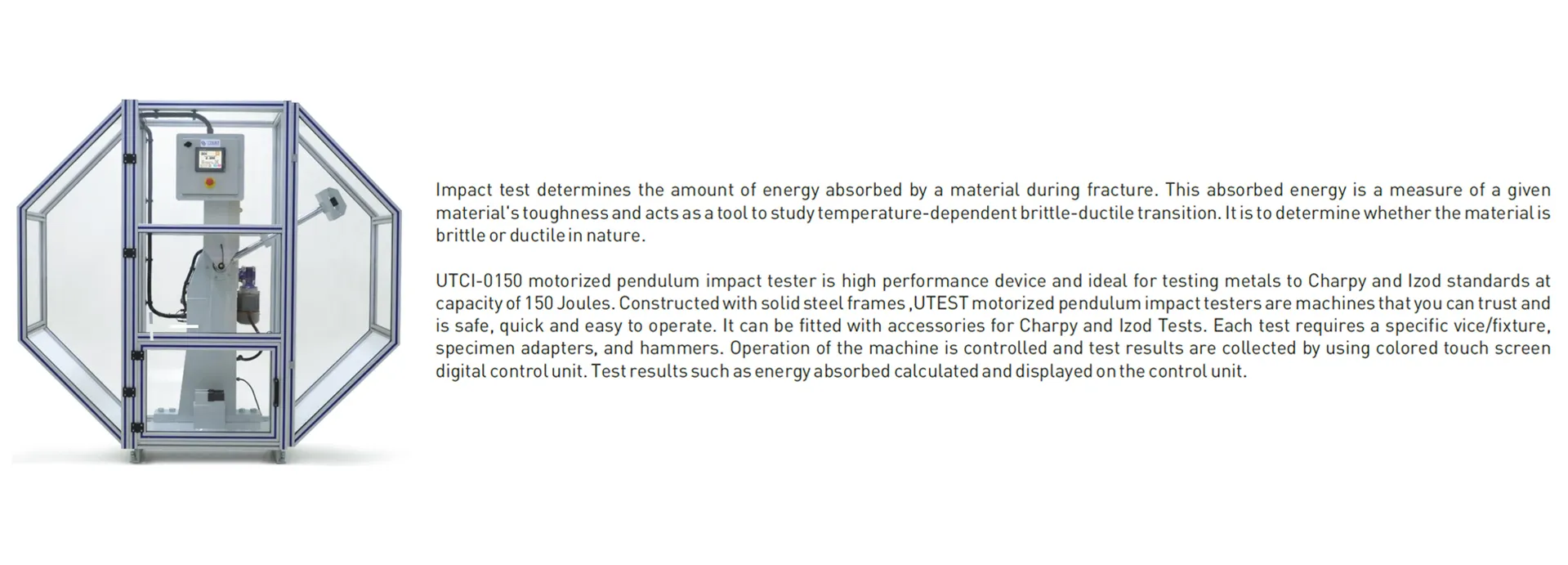

UTCI 0150UTCI 0150 is a 150 J pendulum impact tester for Charpy impact tests on metallic specimens. It delivers a maximum impact speed of 5.25 m/s from a 150° raised angle over a 40 mm standard span.

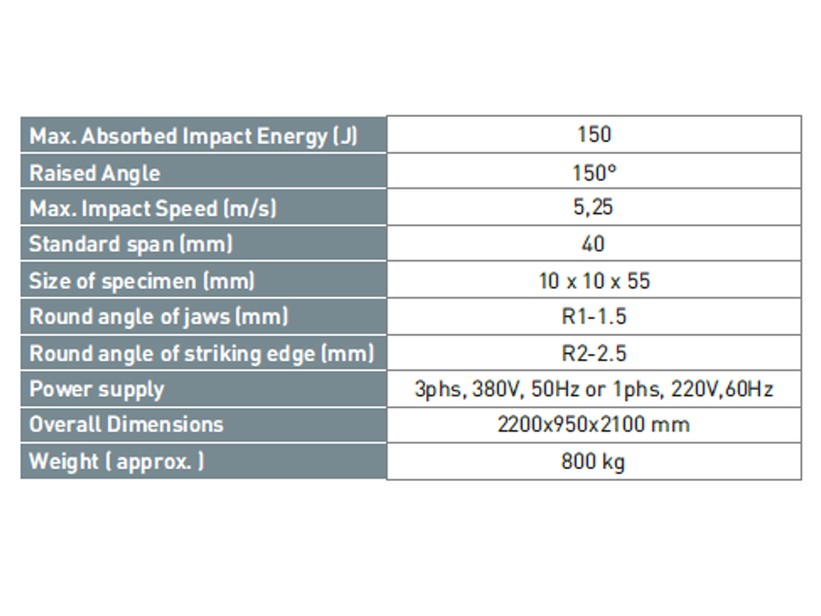

Specifications
| Max. absorbed impact energy | 150 J |
|---|---|
| Raised angle | 150° |
| Max. impact speed | 5.25 m/s |
| Standard span | 40 mm |
| Specimen size | 10 × 10 × 55 mm |
| Round angle of jaws | R1-1.5 mm |
| Round angle of striking edge | R2-2.5 mm |
| Power supply | 3 ph, 380 V, 50 Hz or 1 ph, 220 V, 60 Hz |
| Overall dimensions | 2200 × 950 × 2100 mm |
| Weight (approx.) | 800 kg |
Supplied with
- UTCI 0150 pendulum impact tester with 150 J hammer
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Specimen centering tongs and support jaws
- Additional hammers for lower energy ranges
