UTS 0300

Front Loading Oedometer

UTS-0300

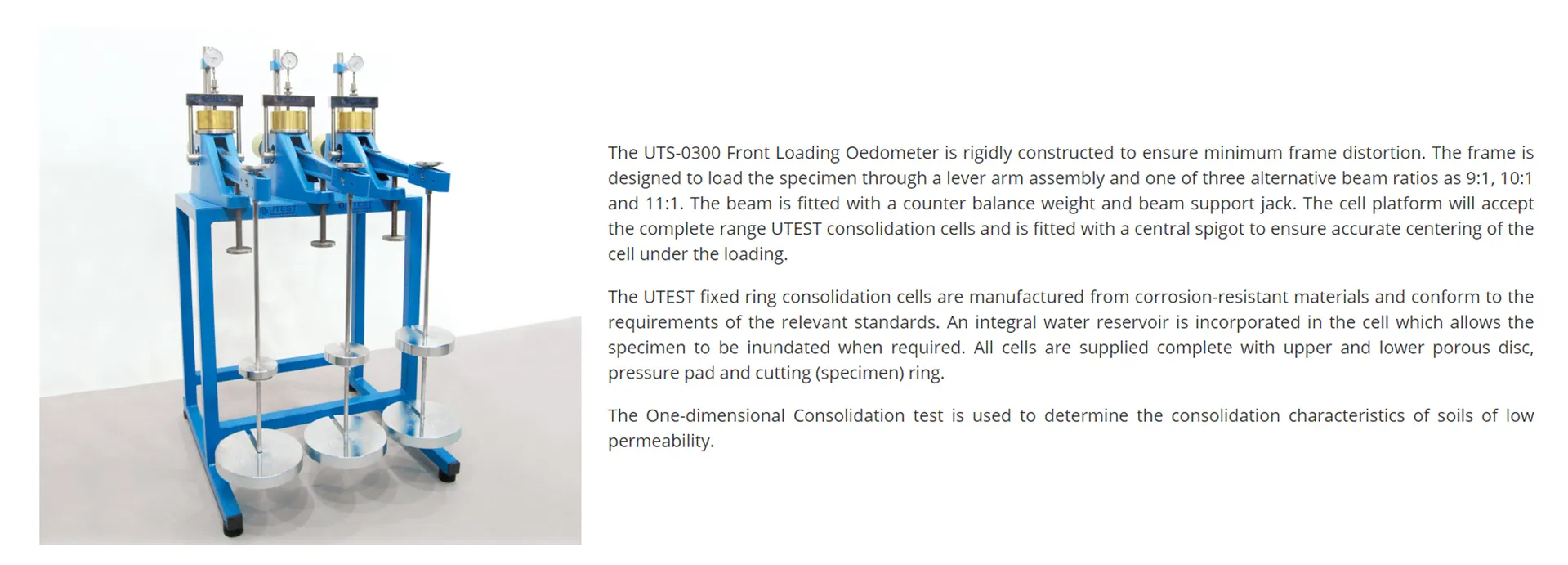

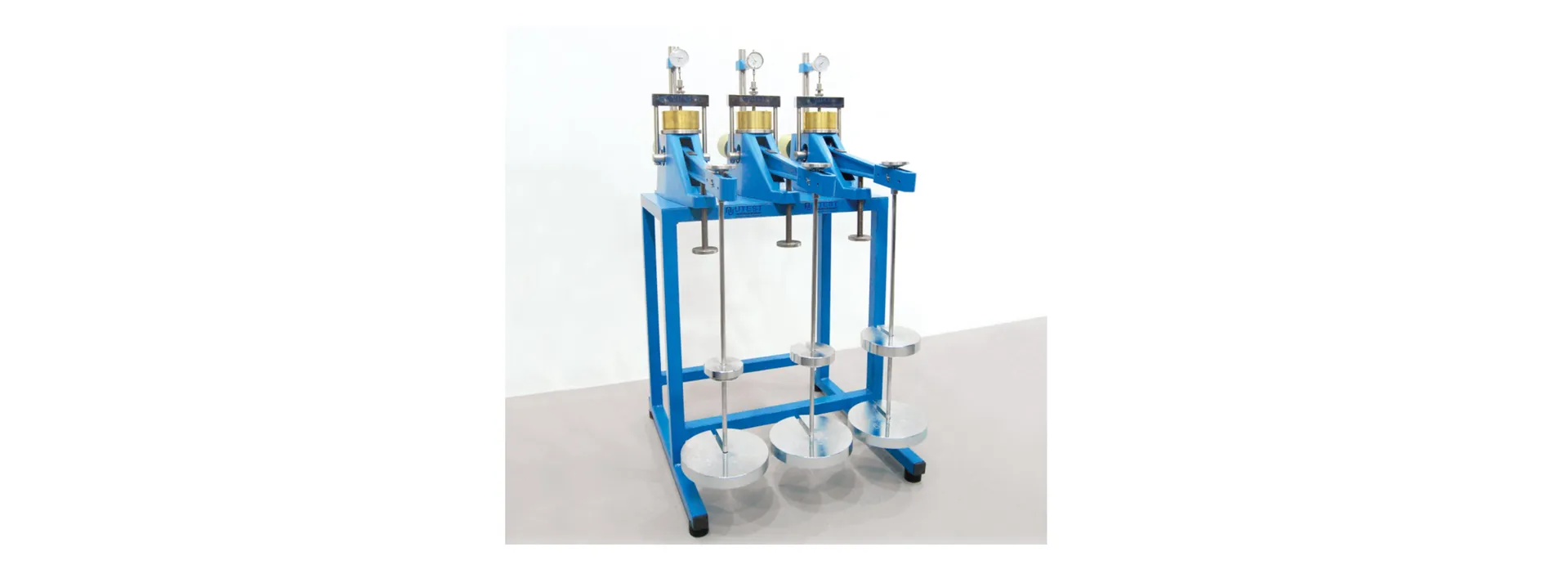

The UTS-0300 front loading oedometer is rigidly constructed to keep frame distortion to a minimum. It loads the specimen through a lever arm assembly with one of three alternative beam ratios (9:1, 10:1 and 11:1), and its cell platform accepts the complete range of UTEST consolidation cells. It is used for the one-dimensional consolidation test to determine the consolidation characteristics of soils of low permeability.

Request a quotation LINE: bps instrument

Specifications

Beam ratios	9:1, 10:1 or 11:1 (alternative)
Loading	Lever arm assembly with counter balance weight and beam support pole
Cell platform	Central spigot for accurate centering of cell and loading; accepts all UTEST consolidation cells
Consolidation cell diameters	Ø50 mm (UTS-0307), Ø63.5 mm / 2.5 in (UTS-0309), Ø75 mm (UTS-0313), ×101.6 mm / 4 in (UTS-0317), ×112.8 mm (UTS-0321)
Fixed ring cells	Corrosion-resistant materials, integral water reservoir, supplied with upper and lower porous disc, pressure pad and cutting ring
Weight sets	UTS-0368 16 kgf, UTS-0370 32 kgf, UTS-0372 50 kgf, UTS-0374 64 kgf, UTS-0376 80 kgf
Slotted weights	125 g, 250 g, 500 g, 1 kg, 2 kg, 4 kg, 5 kg, 8 kg, 10 kg (UTS-0380 to UTS-0396)

Supplied with

UTS-0300 front loading oedometer frame with lever arm and counter balance
Consolidation cell and weights to be selected (see options)
Typical configuration only; BPS confirms the exact supply list in the quotation

Options and accessories

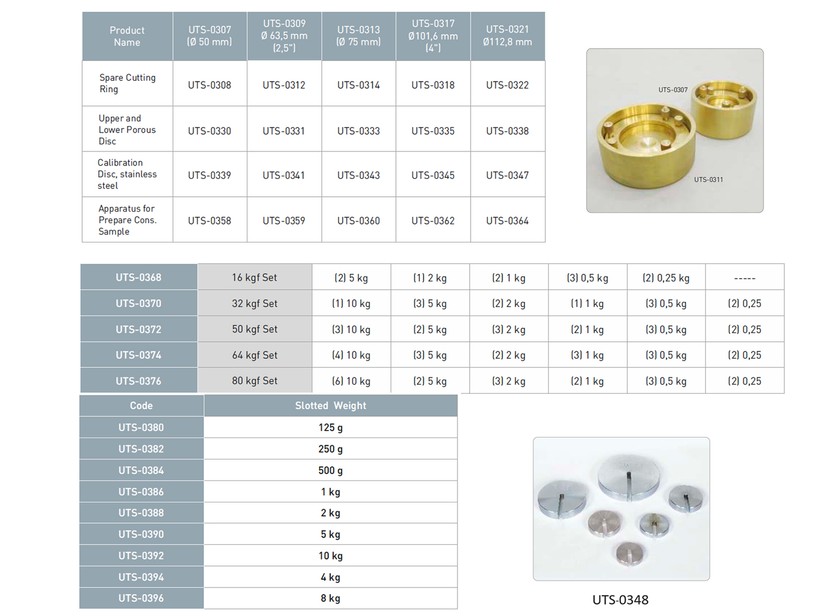

Consolidation cells UTS-0307 / 0309 / 0313 / 0317 / 0321
Spare cutting rings UTS-0308 / 0312 / 0314 / 0318 / 0322
Upper and lower porous discs UTS-0330 / 0331 / 0333 / 0335 / 0338
Stainless steel calibration discs UTS-0339 / 0341 / 0343 / 0345 / 0347
Apparatus for preparing consolidation samples UTS-0358 / 0359 / 0360 / 0362 / 0364
Weight sets UTS-0368 to UTS-0376 and slotted weights UTS-0380 to UTS-0396

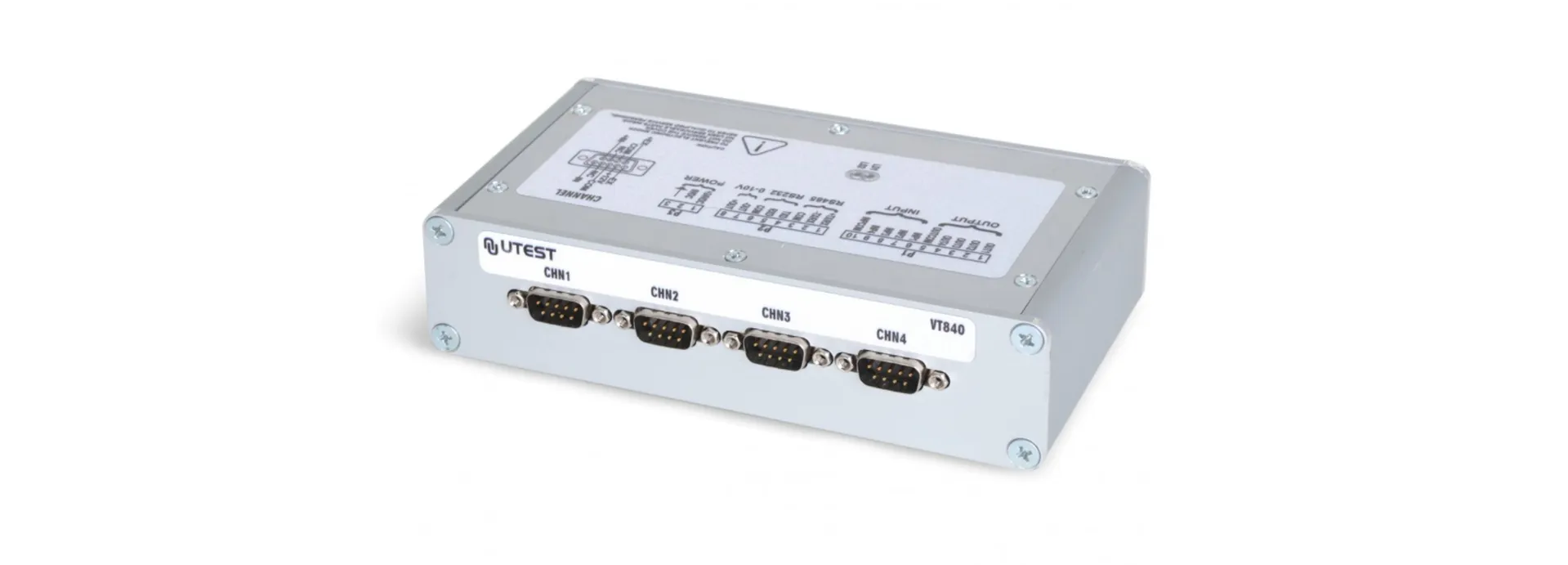

Data acquisition unit
