Auto Grinding & Polishing Head

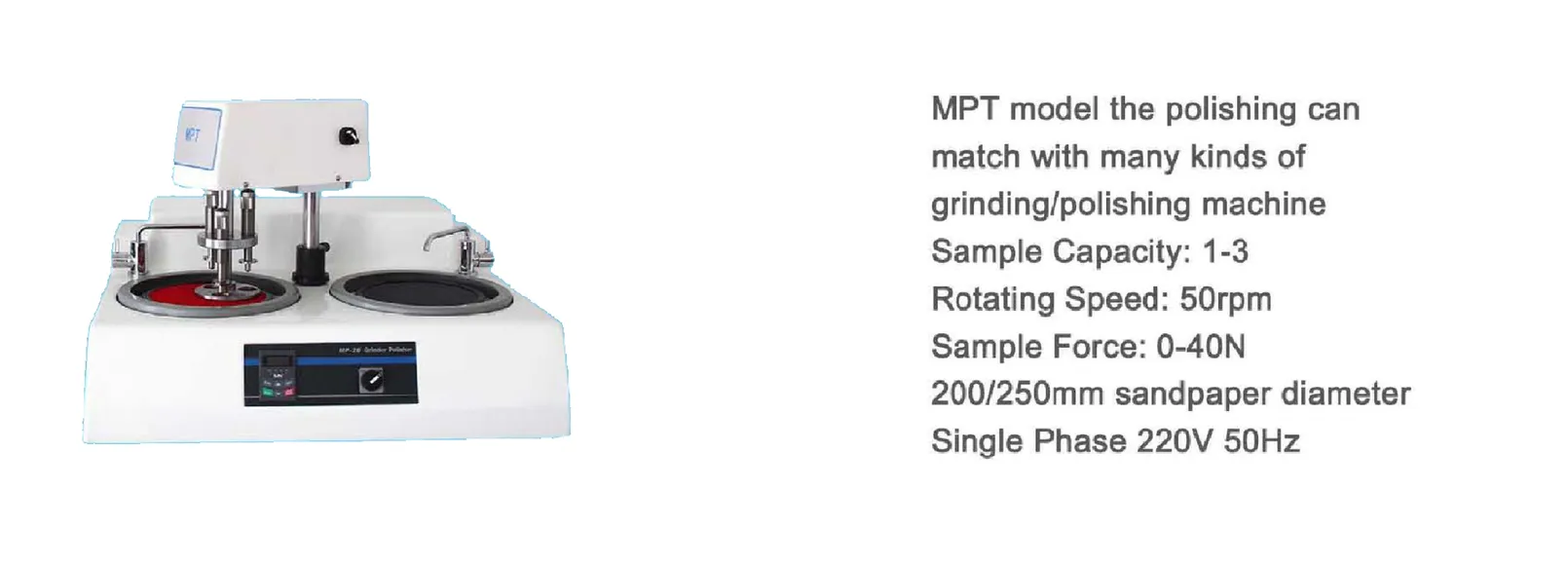

MPTMPT is an automatic polishing head that mounts on many kinds of metallographic grinding and polishing machines. It holds 1 to 3 specimens at a controlled force of 0 to 40 N and rotates at 50 rpm.
Specifications
| Compatible machines | Many kinds of grinding / polishing machines |
|---|---|
| Sample capacity | 1 - 3 specimens |
| Rotating speed | 50 rpm |
| Sample force | 0 - 40 N |
| Sandpaper diameter | 200 / 250 mm |
| Power supply | Single phase, 220 V / 50 Hz |
Supplied with
- MPT automatic grinding / polishing head
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Compatible grinding and polishing machines (MP-1C, Mopao series)
- Abrasive papers, polishing cloths and suspensions
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
