Digital Pendulum Impact Tester Series

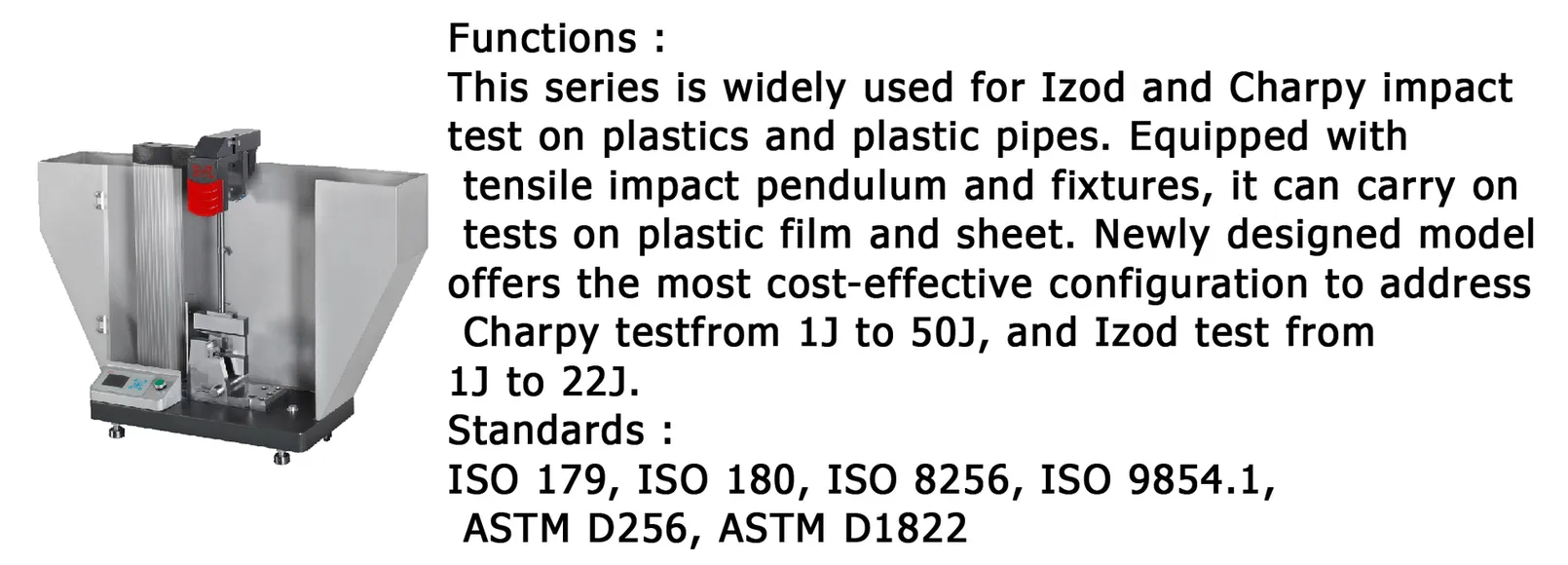

PIT501J-3The PIT501J series is a digital pendulum impact tester widely used for Izod and Charpy impact tests on plastics and plastic pipes. With the tensile-impact pendulum and fixtures it also tests plastic film and sheet, covering Charpy tests from 1 J to 50 J and Izod tests from 1 J to 22 J.
Specifications
| Charpy for plastics | 1 J, 2 J, 4 J, 7.5 J, 15 J, 25 J, 50 J |
|---|---|
| Charpy for plastics (second listing) | 15 J, 50 J |
| Izod | 2.75 J, 5.5 J, 11 J, 22 J |
| Tensile impact | 7.5 J, 15 J, 25 J |
| Angle of striking | 150° |
| Angle resolution | 0.045° |
| Velocity | 2.9 m/s and 3.8 m/s Charpy; 3.5 m/s Izod |
| Standards | ISO 179, ISO 180, ISO 8256, ISO 9854.1, ASTM D256, ASTM D1822 |
Supplied with
- PIT501J digital impact tester with pendulum set
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Tensile impact pendulum and fixtures
- Notching machine for specimen preparation
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
