Computerized Metallurgical Microscope

FCM2000W

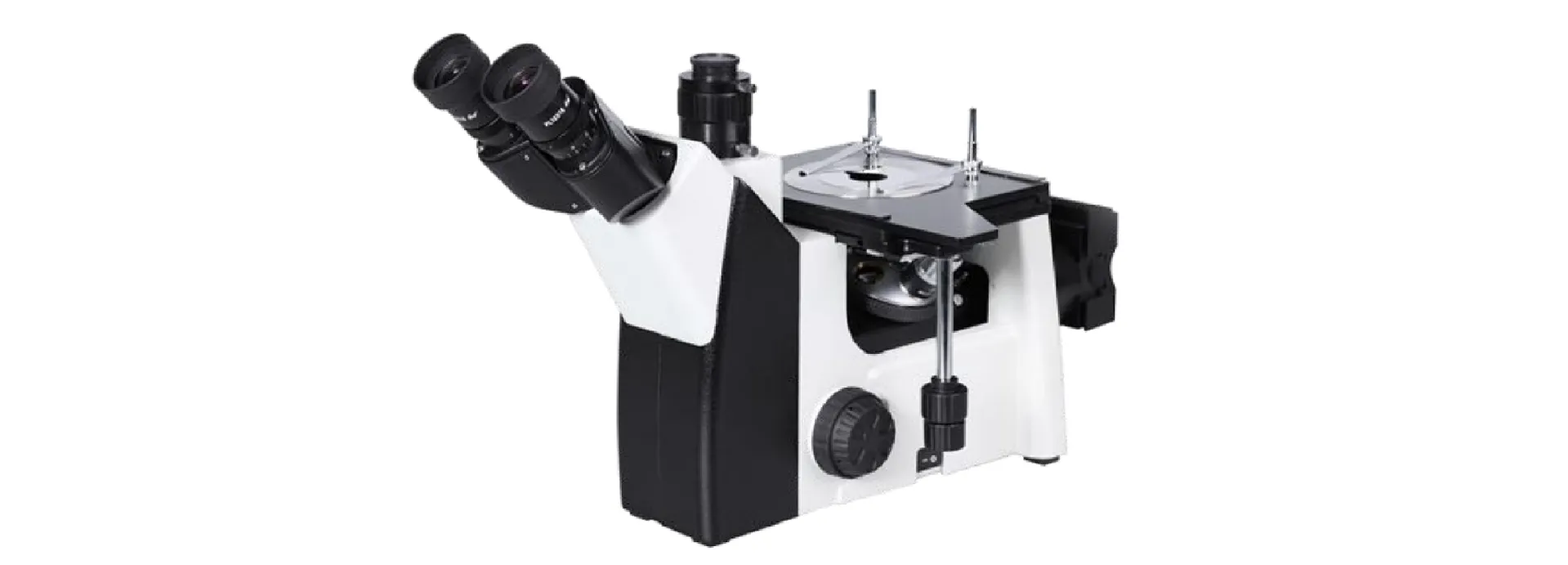

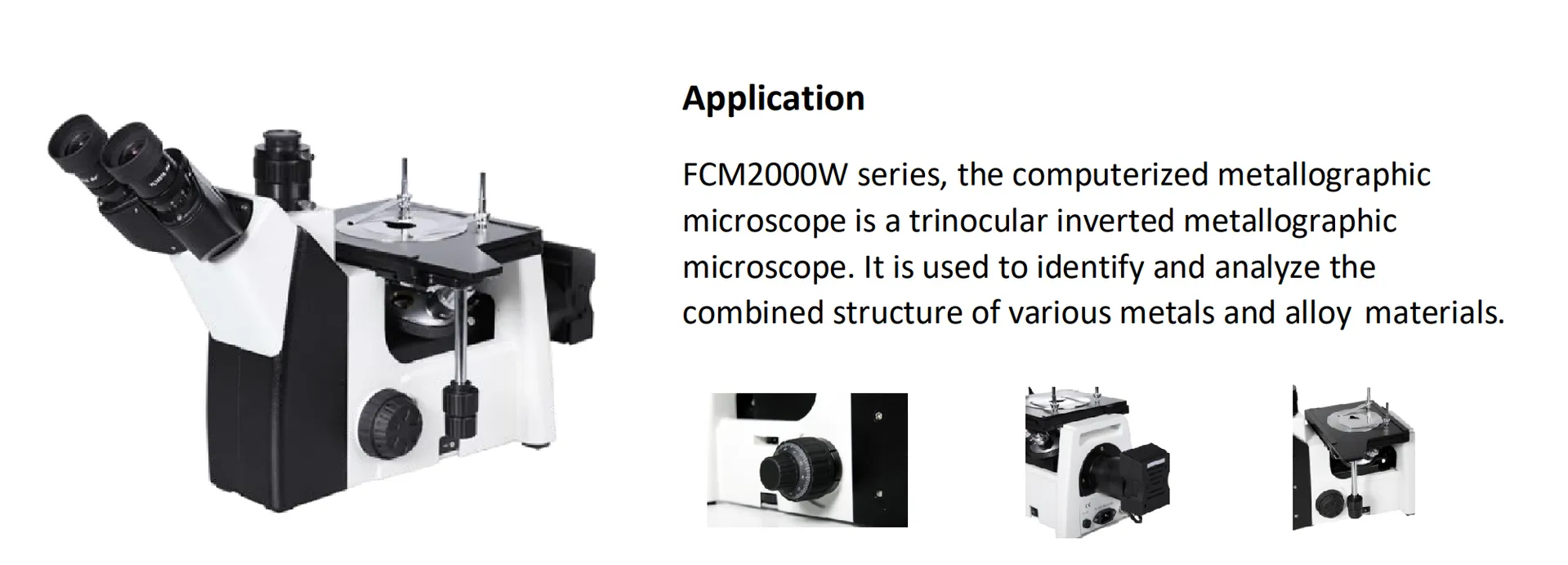

FCM2000W is a computerized trinocular inverted metallurgical microscope for identifying and analyzing the structure of metals and alloys. It combines a long-working-distance plan achromatic objective set, epi-Kohler LED illumination and FMIA2020 analysis software with a 3-megapixel camera.

Request a quotation LINE: bps instrument

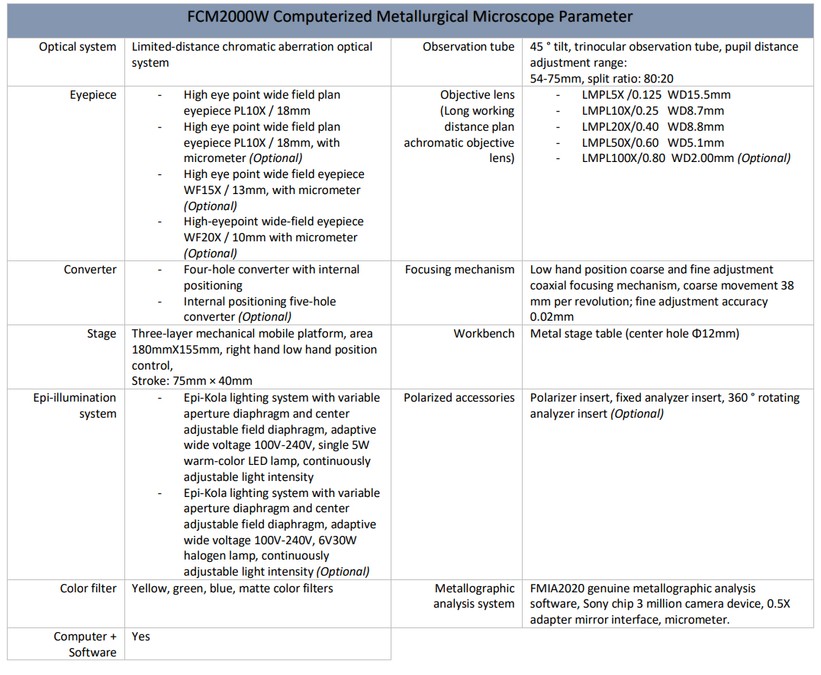

Specifications

Optical system	Limited-distance chromatic aberration optical system
Observation tube	45° tilt trinocular tube, pupil distance 54-75 mm, split ratio 80:20
Eyepiece	PL10X / 18 mm high eye point wide-field plan; optional with micrometer; optional WF15X / 13 mm and WF20X / 10 mm
Objectives	LMPL5X/0.125 (WD 15.5 mm), LMPL10X/0.25 (WD 8.7 mm), LMPL20X/0.40 (WD 8.8 mm), LMPL50X/0.60 (WD 5.1 mm); optional LMPL100X/0.80 (WD 2.00 mm)
Converter	Four-hole converter with internal positioning; optional five-hole
Focusing	Low hand position coaxial coarse and fine adjustment; coarse 38 mm per revolution; fine accuracy 0.02 mm
Stage	Three-layer mechanical stage, 180 × 155 mm, stroke 75 × 40 mm
Workbench	Metal stage table, center hole φ12 mm
Illumination	Epi-Kohler, variable aperture and adjustable field diaphragm, 100-240 V, single 5 W warm-color LED; optional 6 V 30 W halogen
Polarized accessories	Polarizer insert, fixed analyzer insert, 360° rotating analyzer insert (optional)
Color filter	Yellow, green, blue, matte
Analysis system	FMIA2020 metallographic analysis software, Sony 3-megapixel camera, 0.5X adapter interface, micrometer
Computer + software	Yes
