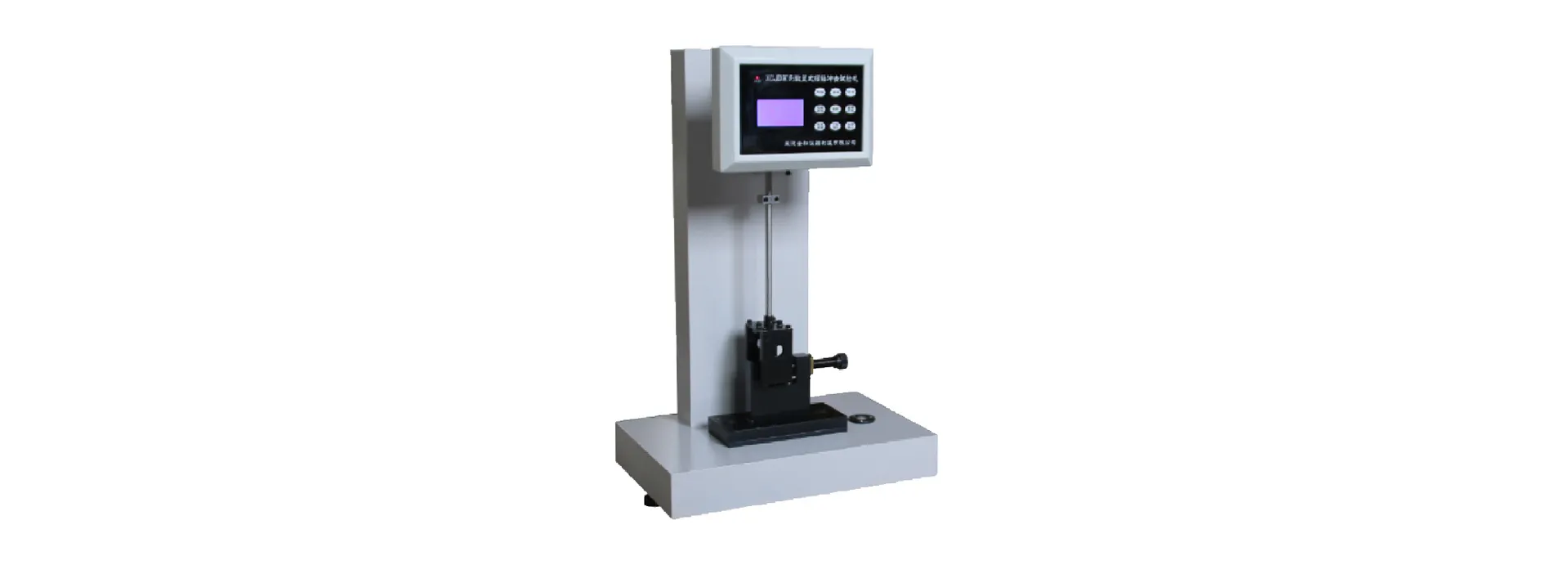

Digital Cantilever Impact Tester (Izod)

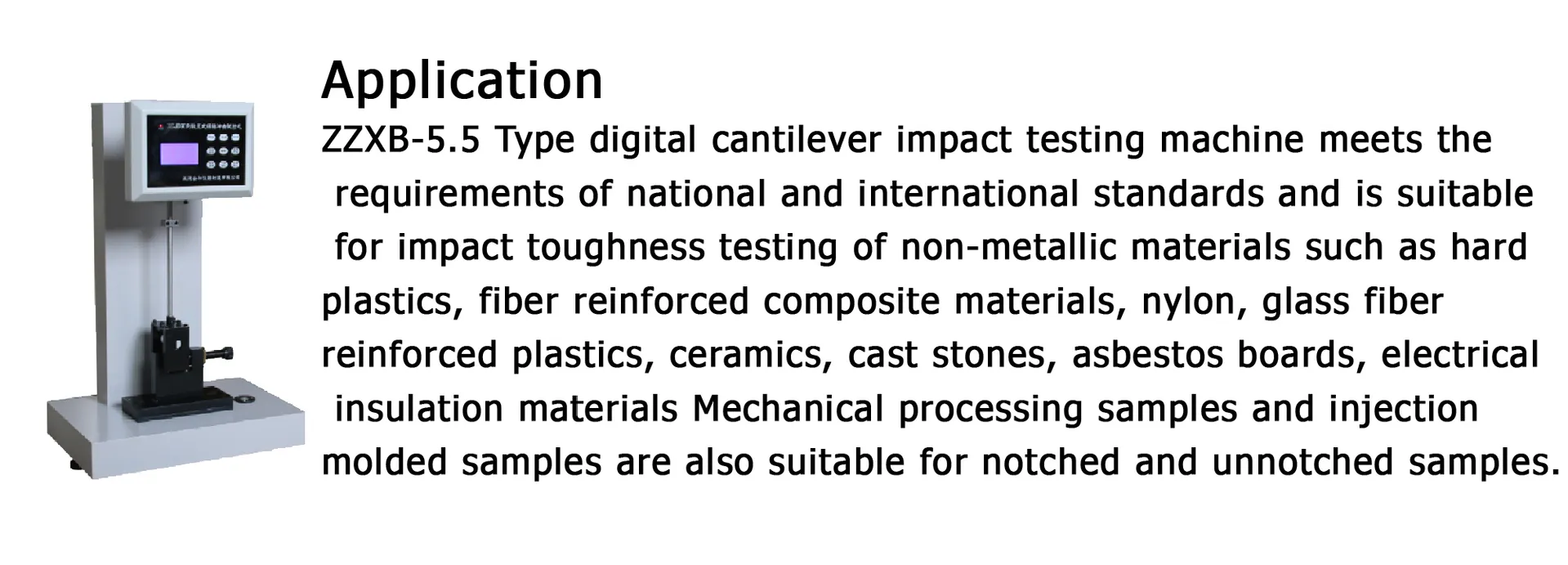

ZZXB-5.5ZZXB-5.5 is a digital cantilever-beam (Izod) impact testing machine for impact toughness testing of non-metallic materials such as hard plastics, fiber reinforced composites, nylon, glass fiber reinforced plastics, ceramics, cast stone, asbestos board and electrical insulation materials. It suits notched and unnotched machined or injection-molded samples and meets national and international standards.

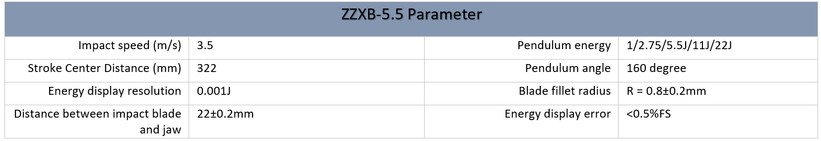

Specifications
| Impact speed | 3.5 m/s |
|---|---|
| Pendulum energy | 1 / 2.75 / 5.5 / 11 / 22 J |
| Pendulum angle | 160° |
| Stroke center distance | 322 mm |
| Energy display resolution | 0.001 J |
| Energy display error | < 0.5 % FS |
| Blade fillet radius | R = 0.8 ± 0.2 mm |
| Distance between impact blade and jaw | 22 ± 0.2 mm |
Supplied with
- ZZXB-5.5 digital impact tester
- Typical configuration only; BPS confirms the exact supply list in the quotation
Options and accessories
- Pendulums for other energy ranges
- Notching machine for specimen preparation
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
