HY-SGW600

Servo Hydraulic Bending Testing Machine

HY-SGW600

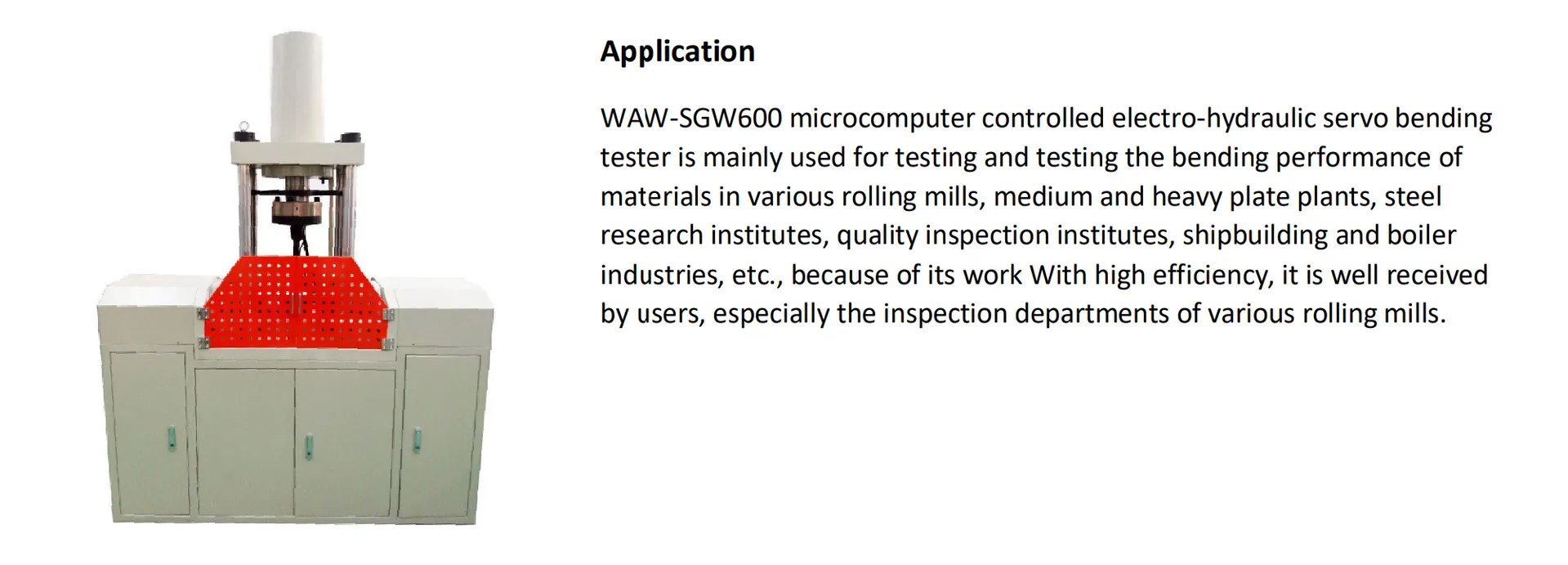

The HY-SGW600 microcomputer-controlled electro-hydraulic servo bending tester is mainly used for testing the bending performance of materials in rolling mills, medium and heavy plate plants, steel research institutes, quality inspection institutes, shipbuilding and boiler industries, and similar applications.

Request a quotationLINE: bps instrument
Flexural Testing Machine Servo Hydraulic Controll

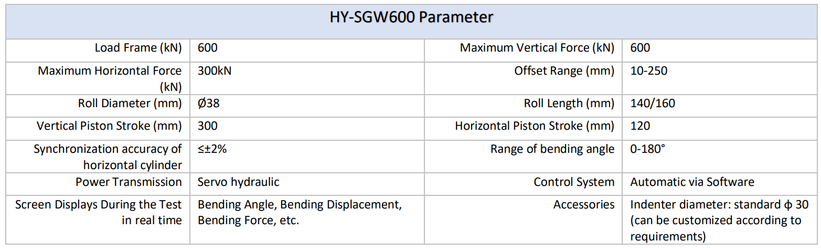

Specifications

Load frame600 kN
Maximum vertical force600 kN
Maximum horizontal force300 kN
Offset range10-250 mm
Roll diameterØ38 mm
Roll length140 / 160 mm
Vertical piston stroke300 mm
Horizontal piston stroke120 mm
Synchronization accuracy of horizontal cylinder≤ ±2%
Range of bending angle0-180°
Power transmissionServo hydraulic
Control systemAutomatic via software
Real-time displayBending angle, bending displacement, bending force, etc.
IndenterStandard Ø30 mm (customizable on request)

Supplied with

  • Bending test frame with servo hydraulic power unit
  • Control computer and software
  • Standard Ø30 mm indenter

Options and accessories

  • Custom indenter diameters on request

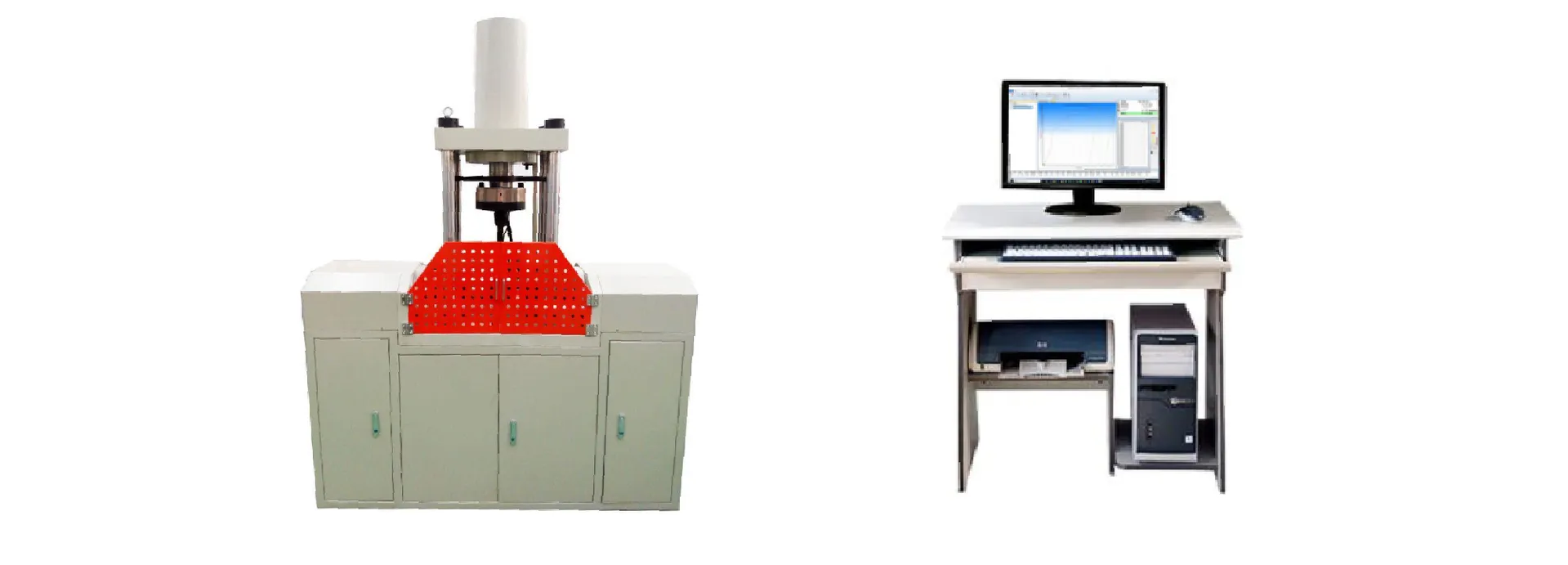

More views

Flexural Testing Machine Servo Hydraulic Controll
