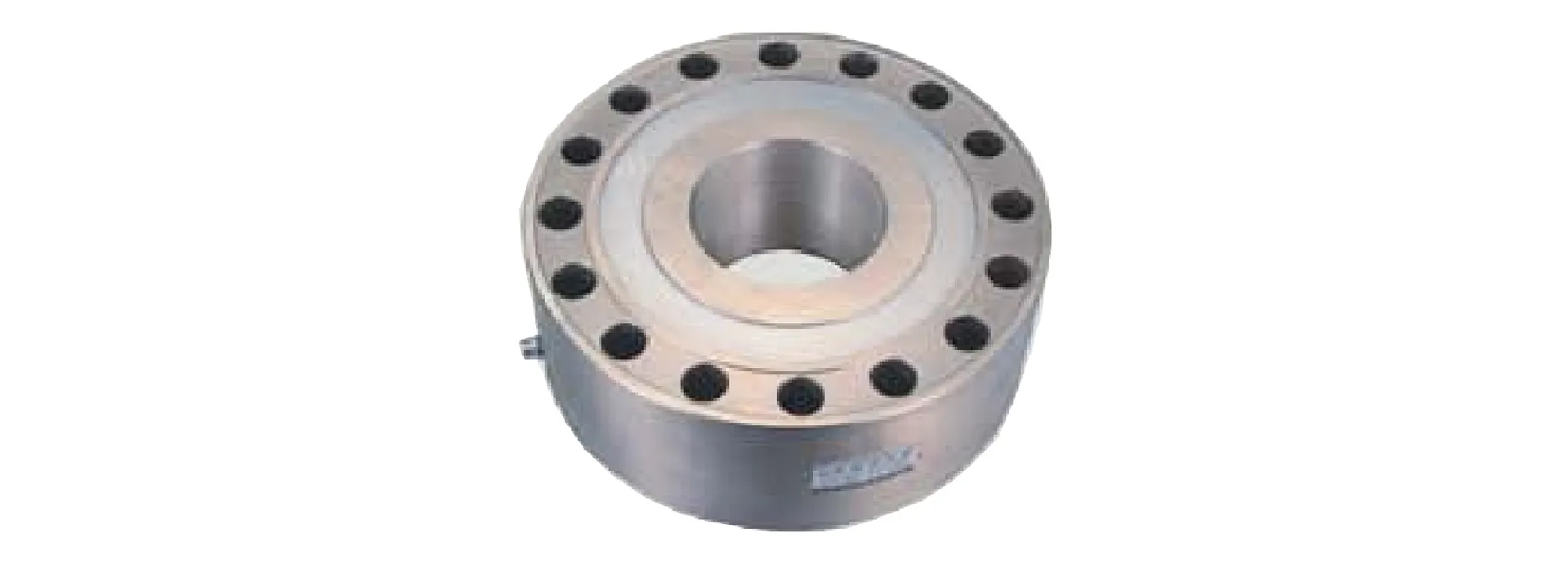

ZLF-D Pancake Load Cell

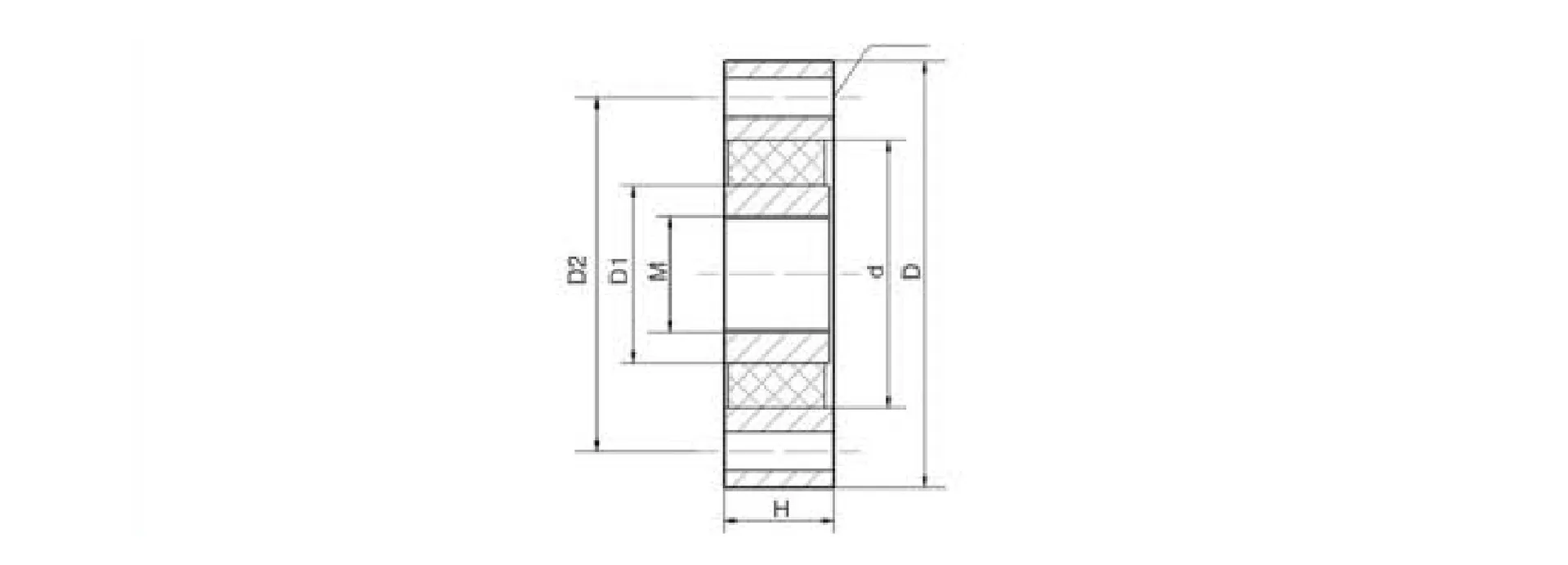

ZLF-DPancake-type load cell from China with 2 mV/V sensitivity, 0.1% F.S. accuracy and a 120% F.S. safe load limit, supplied with a dimensional drawing.

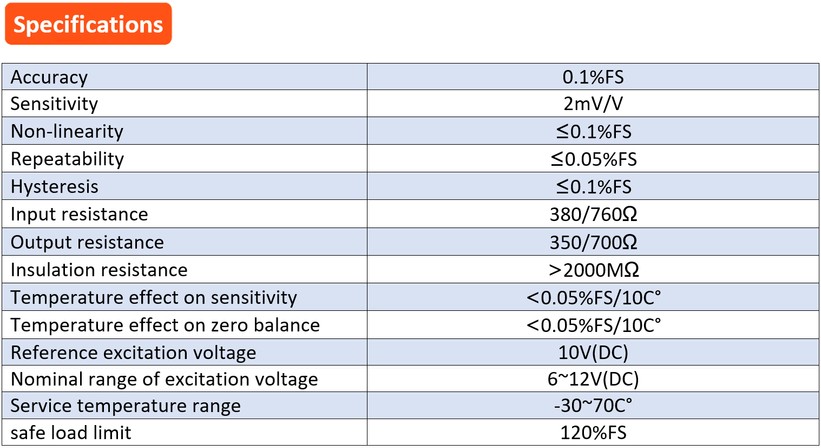

Specifications
| Accuracy | 0.1% F.S. |
|---|---|
| Sensitivity | 2 mV/V |
| Non-linearity | ≤0.1% F.S. |
| Repeatability | ≤0.05% F.S. |
| Hysteresis | ≤0.1% F.S. |
| Input resistance | 380 / 760 Ω |
| Output resistance | 350 / 700 Ω |
| Insulation resistance | >2000 MΩ |
| Temperature effect on sensitivity | <0.05% F.S. / 10 C |
| Temperature effect on zero balance | <0.05% F.S. / 10 C |
| Reference excitation voltage | 10 V (DC) |
| Excitation voltage range | 6~12 V (DC) |
| Service temperature range | -30~70 C |
| Safe load limit | 120% F.S. |
Supplied with
- ZLF-D load cell
Options and accessories
- Contact BPS for capacity, indicators and calibration
