UTEST
Concrete Testing Hammer

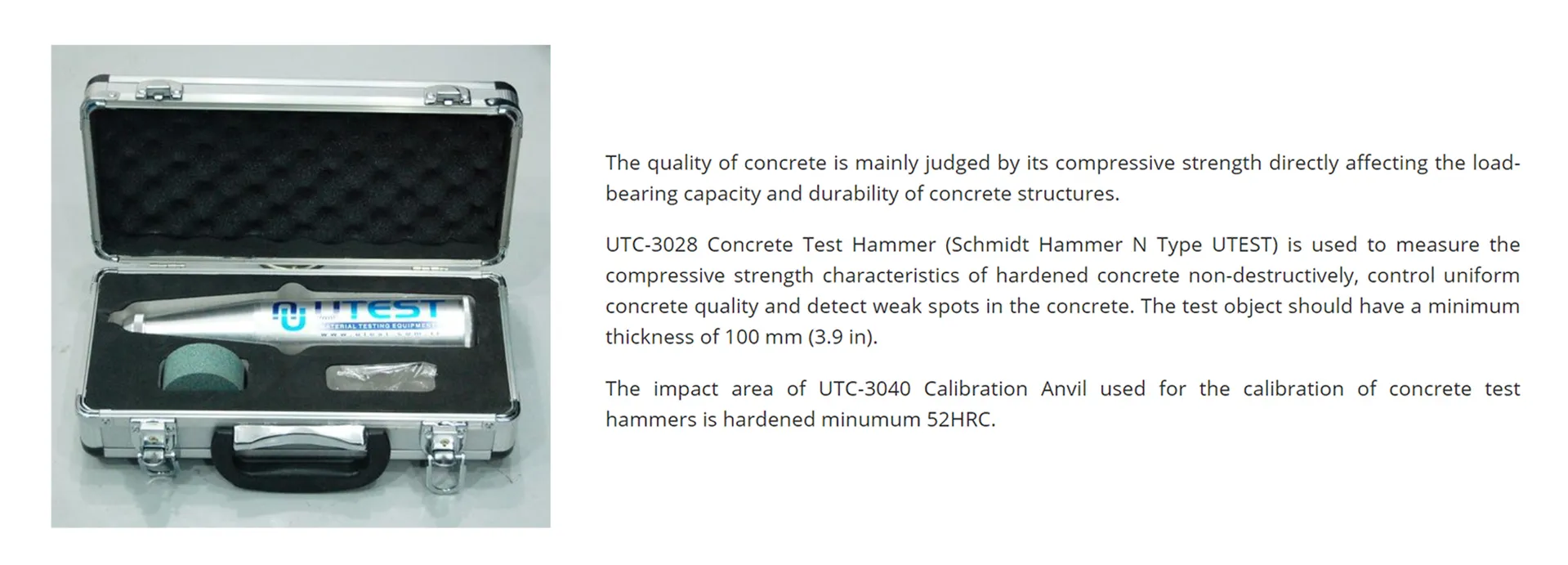

UTC-3028 / UTC-3040The UTC-3028 Concrete Test Hammer (Schmidt Hammer N Type) measures the compressive strength characteristics of hardened concrete non-destructively, to control uniform concrete quality and detect weak spots in the concrete. The test object should have a minimum thickness of 100 mm (3.9 in). The UTC-3040 Calibration Anvil is used for calibrating concrete test hammers; its impact area is hardened to a minimum of 52 HRC.

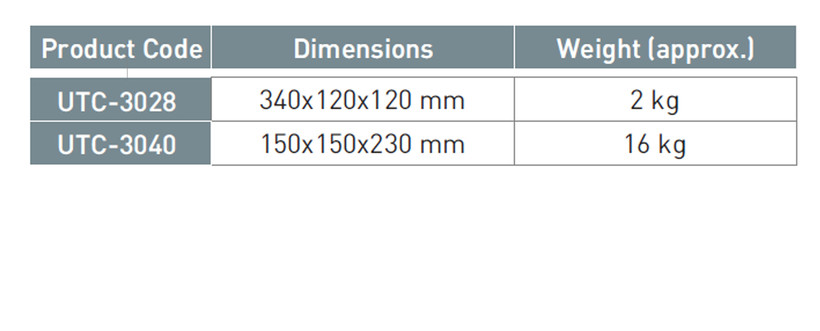

Specifications
| UTC-3028 | Concrete test hammer (Schmidt N type), 340 x 120 x 120 mm, 2 kg (approx.) |
|---|---|
| UTC-3040 | Calibration anvil, 150 x 150 x 230 mm, 16 kg (approx.) |
| Minimum test object thickness | 100 mm (3.9 in) |
| Anvil impact area hardness | Min. 52 HRC |
Supplied with

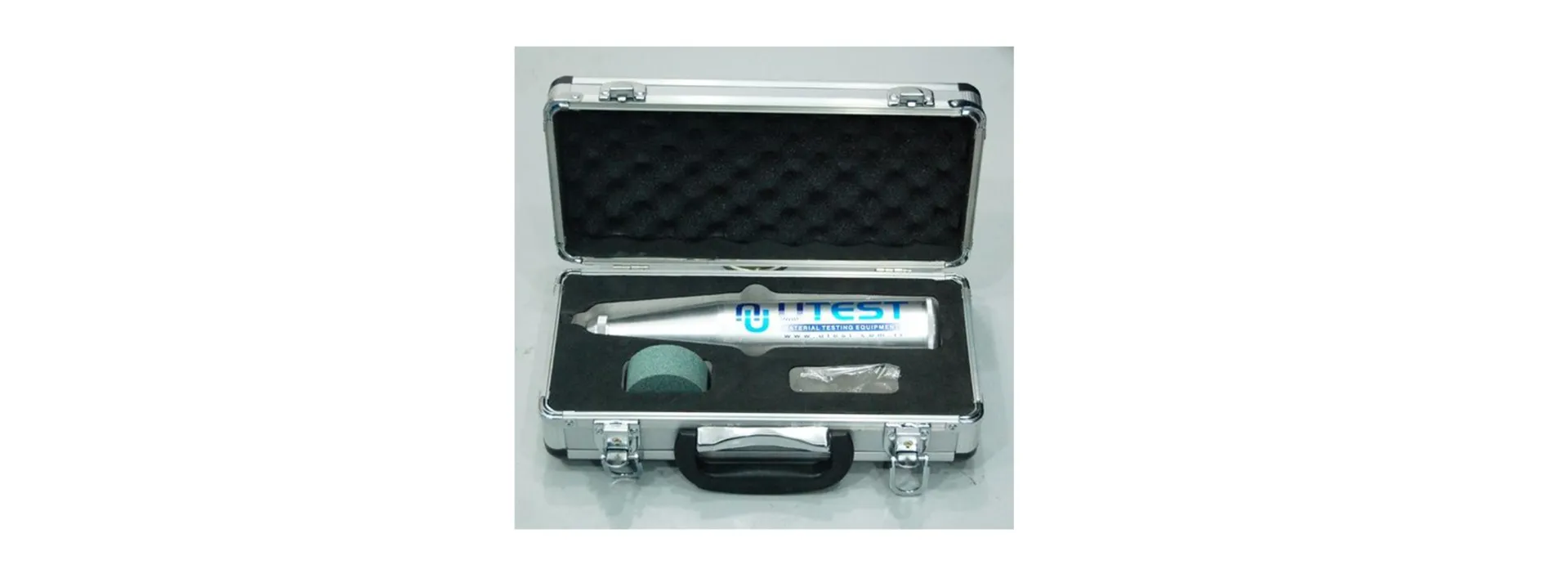

- UTC-3028: concrete test hammer in carrying case
Options and accessories
- UTC-3040 calibration anvil
More views
Need help choosing?
Tell us your sample, standard and budget. BPS will recommend the right model and quote it.
Specifications are from the manufacturer and may change. Please confirm with BPS before ordering.
