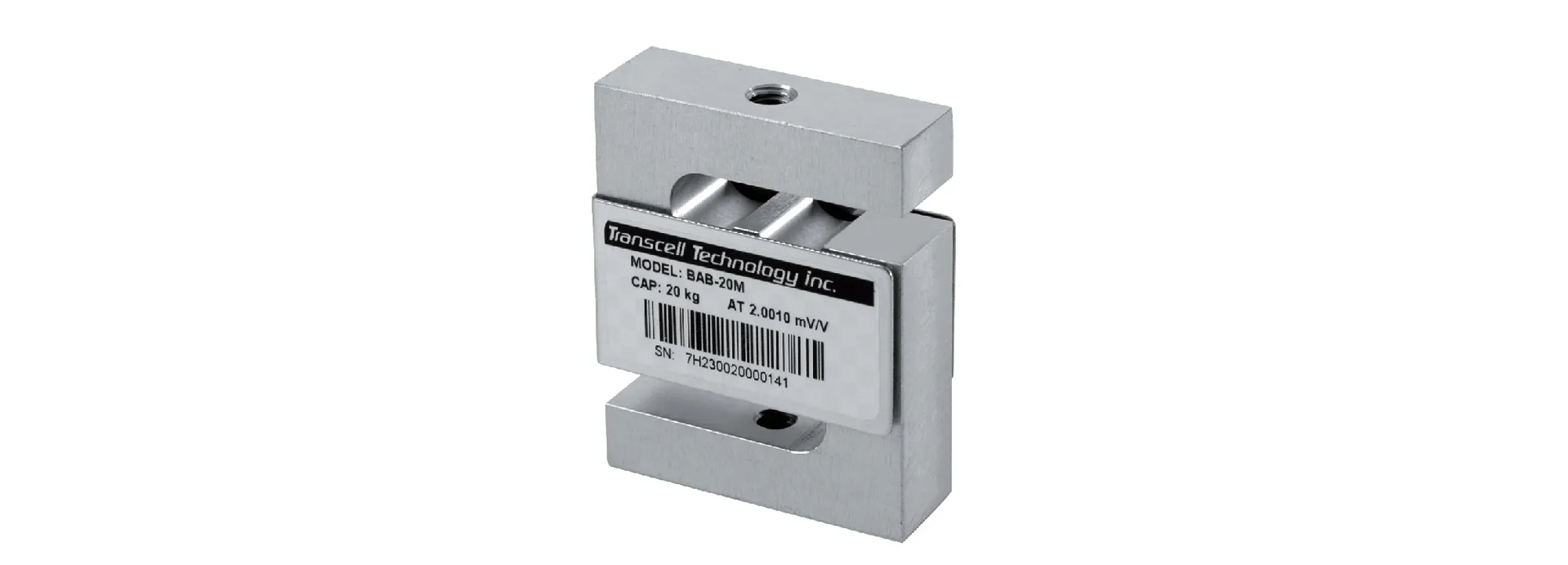

BAB S-Type Load Cell
BABS-type load cell from the USA with 2.0 mV/V rated output, ±0.03% nonlinearity, hysteresis and repeatability, 150% safe overload and a 2.75 m cable.

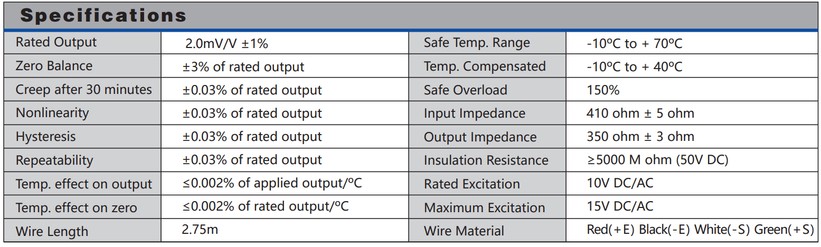

Specifications
| Rated output | 2.0 mV/V ±1% |
|---|---|
| Zero balance | ±3% of rated output |
| Creep after 30 minutes | ±0.03% of rated output |
| Nonlinearity | ±0.03% of rated output |
| Hysteresis | ±0.03% of rated output |
| Repeatability | ±0.03% of rated output |
| Temp. effect on output | ≤0.002% of applied output / C |
| Temp. effect on zero | ≤0.002% of rated output / C |
| Wire length | 2.75 m |
| Safe temperature range | -10 C to +70 C |
| Temperature compensated | -10 C to +40 C |
| Safe overload | 150% |
| Input impedance | 410 Ω ± 5 Ω |
| Output impedance | 350 Ω ± 3 Ω |
| Insulation resistance | ≥5000 MΩ (50 V DC) |
| Rated excitation | 10 V DC/AC |
| Maximum excitation | 15 V DC/AC |
| Wire colours | Red (+E), Black (-E), White (-S), Green (+S) |
Supplied with
- BAB load cell with 2.75 m cable
Options and accessories
- Contact BPS for capacity, indicators and calibration
