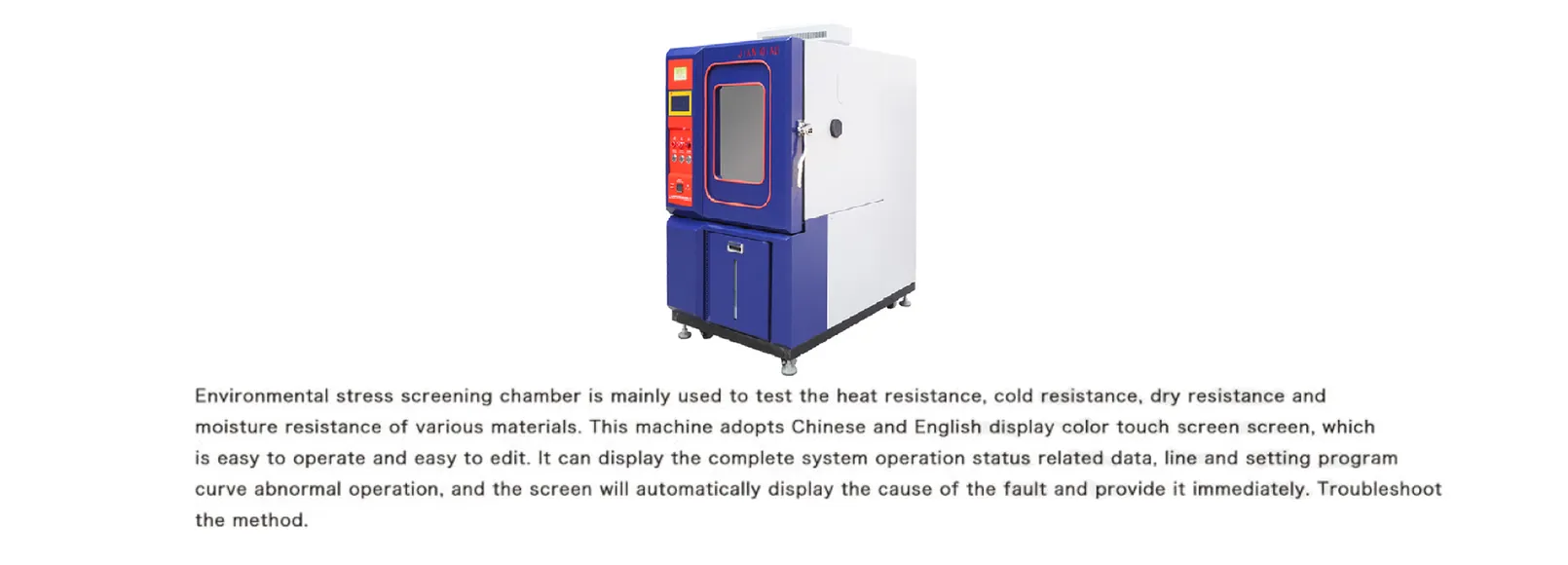

Environmental Stress Screening Chamber

JQESS-100 to JQESS-1500

The environmental stress screening chamber is mainly used to test the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. It adopts a Chinese and English colour touch-screen display that is easy to operate and edit, and shows the complete system operation status, related data, line and setting program curves. In case of abnormal operation, the screen automatically displays the cause of the fault and provides troubleshooting methods.

Request a quotation LINE: bps instrument

Specifications

Temperature range	Model S: -70°C to +150°C; Model L: -40°C to 150°C, or customized
Humidity range	20% to 98% RH (optional, H type only)
Linear temperature range	-40°C to 85°C
Temperature change rate	Linear and average: 5, 10, 15, 20 or 25°C/min, or customized
Working conditions	RT to 35°C
Controller	PLC, 7" / 10" TW Delta PLC colour touch screen
Interface	USB, WLAN, RS232; APP function optional
Language	Chinese, English or Russian
Power supply	AC 220 V, 110 V or 380 V, 50 Hz
Exterior / interior	1.5 mm electrolytic plate with electrostatic spray paint / SUS304 stainless steel
Insulation	Hard urethane foam
JQESS-100	Inner 50x40x50 cm; outer 70x100x156 cm; 100 L; 20 kW
JQESS-150	Inner 50x50x60 cm; outer 70x125x147 cm; 150 L; 25 kW
JQESS-225	Inner 60x50x75 cm; outer 80x129x168 cm; 225 L; 32 kW
JQESS-408	Inner 80x60x85 cm; outer 80x140x180 cm; 408 L; 36 kW
JQESS-800	Inner 100x80x100 cm; outer 120x155x195 cm; 800 L; 40 kW
JQESS-1000	Inner 100x100x100 cm; outer 120x175x195 cm; 1000 L; 40 kW
JQESS-1200	Inner 120x100x100 cm; outer 140x175x195 cm; 1200 L; 48 kW
JQESS-1500	Inner 150x100x100 cm; outer 170x175x195 cm; 1500 L; 52 kW
