Flexural Testing Machine Assembly

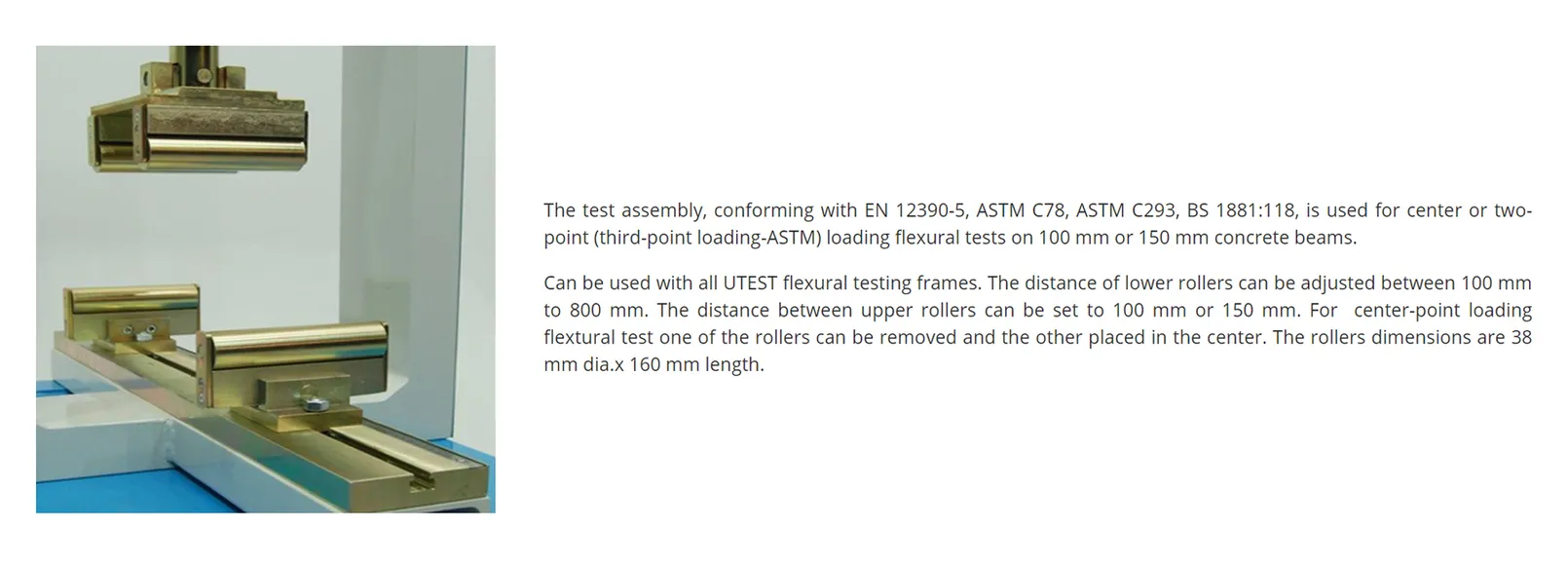

UTC 5501 / 5502 / 5504The flexural test assembly, conforming with EN 12390-5, ASTM C78, ASTM C293 and BS 1881:118, is used for centre-point or two-point (third-point loading per ASTM) flexural tests on 100 mm or 150 mm concrete beams. It can be used with all UTEST flexural testing frames.
Specifications
| Standards | EN 12390-5, ASTM C78, ASTM C293, BS 1881:118 |
|---|---|
| Loading | Centre-point or two-point (third-point) |
| Lower roller distance | 100 - 800 mm adjustable |
| Upper roller distance | 100 mm or 150 mm |
| Roller size | Ø38 mm x 160 mm length |
| UTC-5501 | 200 x 200 x 200 mm, 16 kg (approx.) |
| UTC-5502 | 620 x 250 x 100 mm, 17 kg (approx.) |
| UTC-5504 | 620 x 260 x 150 mm, 25 kg (approx.) |
Supplied with
- Flexural test assembly with loading rollers
Options and accessories
- For centre-point loading, one upper roller is removed and the other placed in the centre

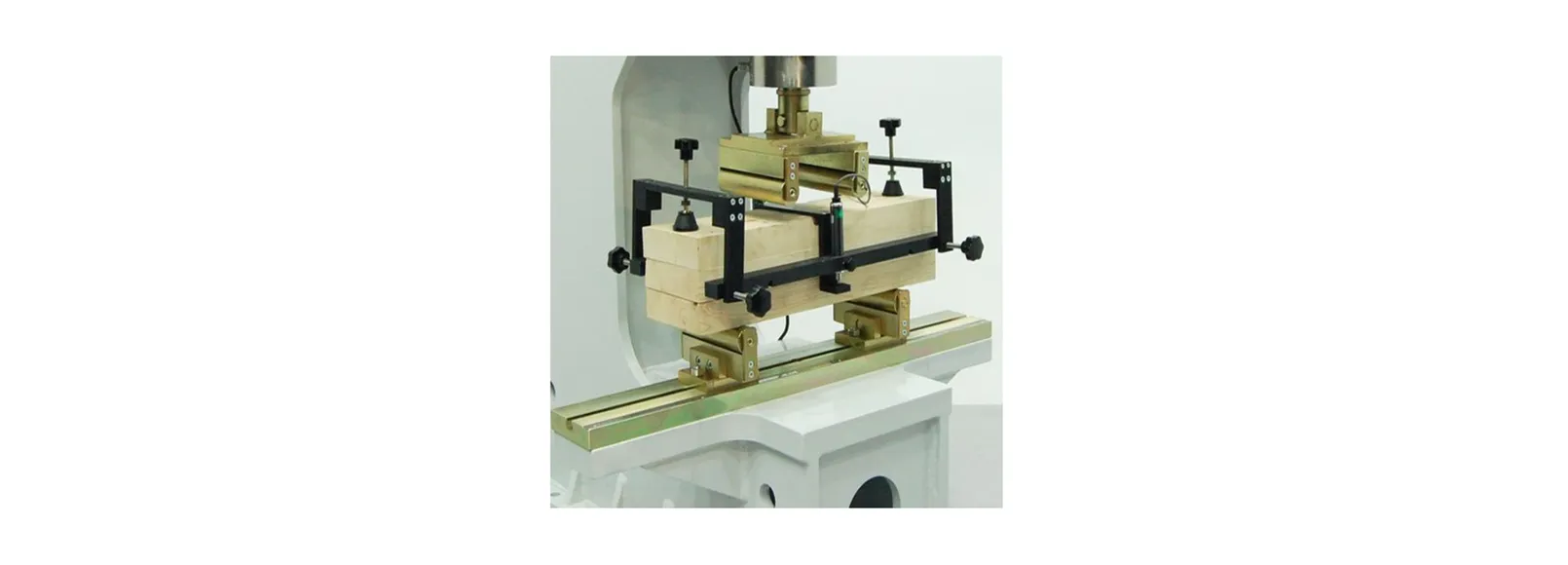

More views
