UZD1 - Universal Tensile / Compression Test
โพสต์เมื่อ : 30 ก.ย 2568 เวลา 7:20 น.
UZD1 module - Universal Tensile / Compression Test
UZD1 Module : Comes included with Test&MotionPlus Basic and Dynpack – ready to use right out of the box, no extra cost!
Description
Accurate determination of maximum test force, breaking force, and material strength – including extensions and up to five reference values in both tensile and compression testing.

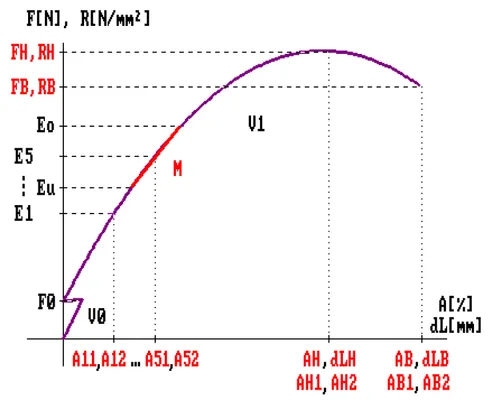

Basic Results
- FH: Maximum Force
- RH: Tensile or compression stress
- AH: Overall extension at maximum force
- dLH: Elongation at maximum force
- FB: Breaking force
- RB: Stress at break
- AB Overall extension at sample break
- dLB: Elongation at sample break
- A11, A12: Reference values at E1
- A21, A22: Reference values at E2
- A31, A32: Reference values at E3
- A41, A42: Reference values at E4
- A51, A52: Reference values at E5
- AH1, AH2: Reference values at FH
- AB1, AB2: Reference values at FB
- M: Module between the two input values Eu and Eo
- t: Duration of load (time from reaching F0 to end of test)
- S0: Sample cross section
- PA1: Sample dimension 1 (not available for all sample shapes)
- PA2: Sample dimension 2 (not available for all sample shapes)
> Download <
UZD1 Manual
