KU1 module - Plastics Tensile Testacc. to EN ISO 527-1:1996
Take your testing to the next level – available as an add-on module
Description
Determination of the tensile characteristics - tensile strength, yield stress, breaking stress, the correspondingloads and strains as well as tensile modulus, Poisson’s rate and 3 pairs of reference values for plastics andplastic compounds.

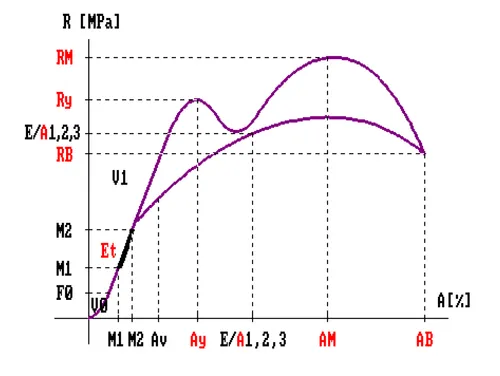

Basic Results
- FM: Maximum test load
- RM: Tensile strength (tensile stress at maximum test load)
- FM/b: Maximum load / sample width
- FB: Breaking load
- RB: Breaking stress
- Fy: Load at yield stress
- Ry: Yield stress
- AM: Strain at tensile strength
- dLM: Elongation at tensile strength
- AB: Breaking strain
- dLB: Elongation at break
- Ay: Yield strain
- dLy: Elongation at yield strain
- Et: Tensile modulus
- μn: Poisson’s ratio
- FMB: Maximum test load related to sample width
- A11, A12: Reference value for input value E1 (Dimension of the outputvalue determines the physical value)
- A21, A22: Reference value for input value E2
- A31, A32: Reference value for input value E3
- L0: Measuring length
- S0: Sample diameter
- PA1: Sample dimension 1 (not available for all sample shapes)
- PA2: Sample dimension 2 (not available for all sample shapes)
- A-Lu: Breaking strain (after manual input of sample elongation Lu)
> Download <
KU1 Manual
